Power Monitoring System

Views: 115 Author: Elena Publish Time: 2020-12-10 Origin: Site

Application

Structure

Primary system and secondary components

Main Function

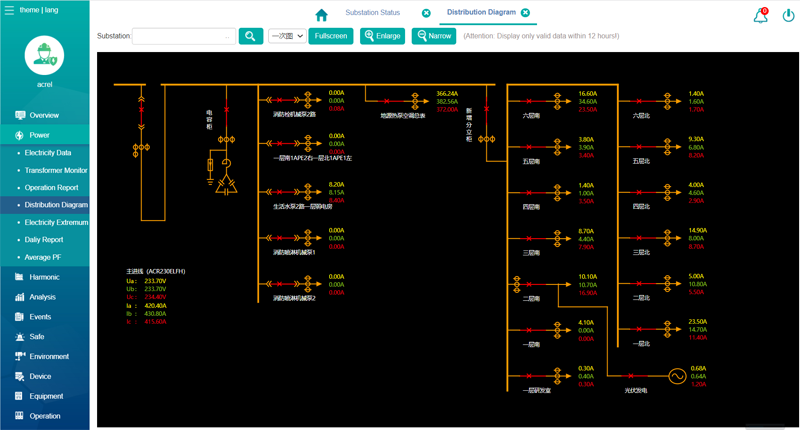

1.Remote Measuring, Signal

2.Report

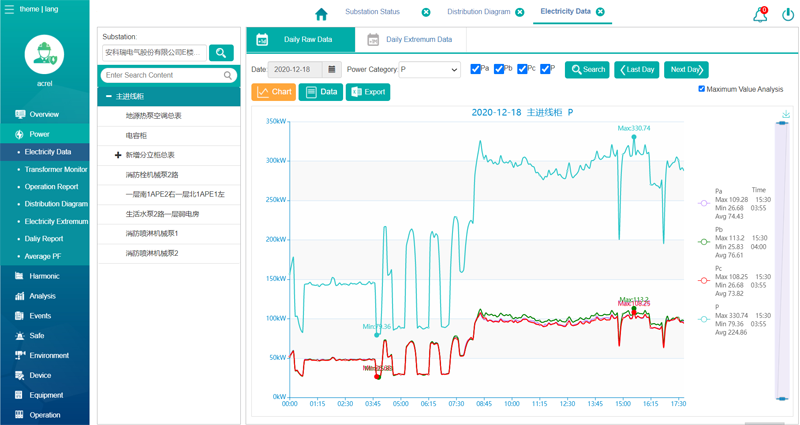

3.Curve

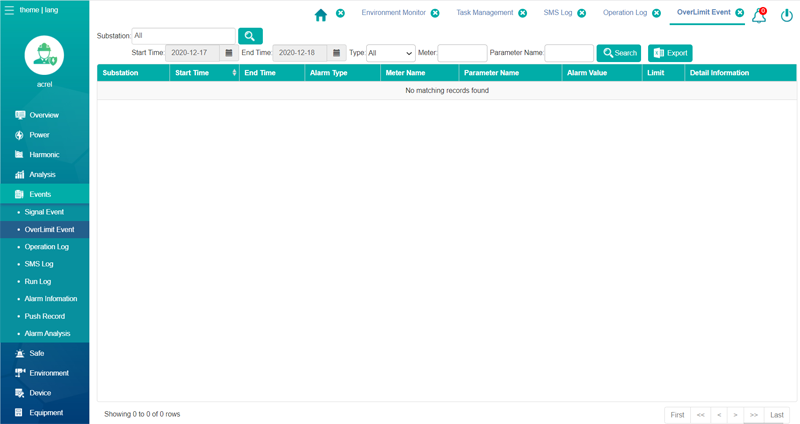

4.Fault recorder

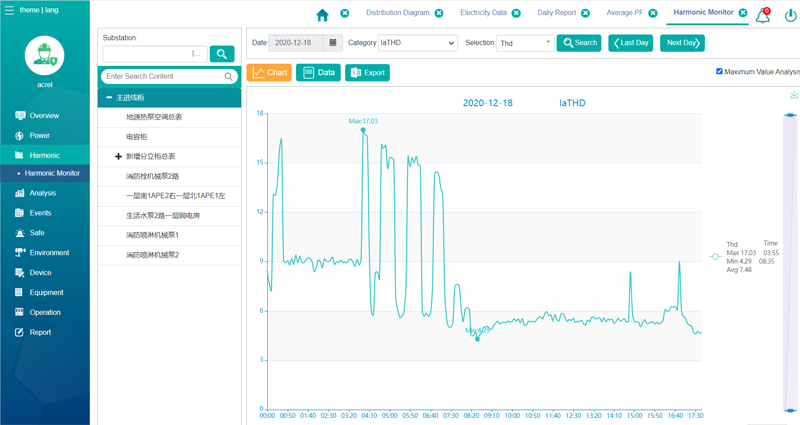

5.Harmonic Monitoring

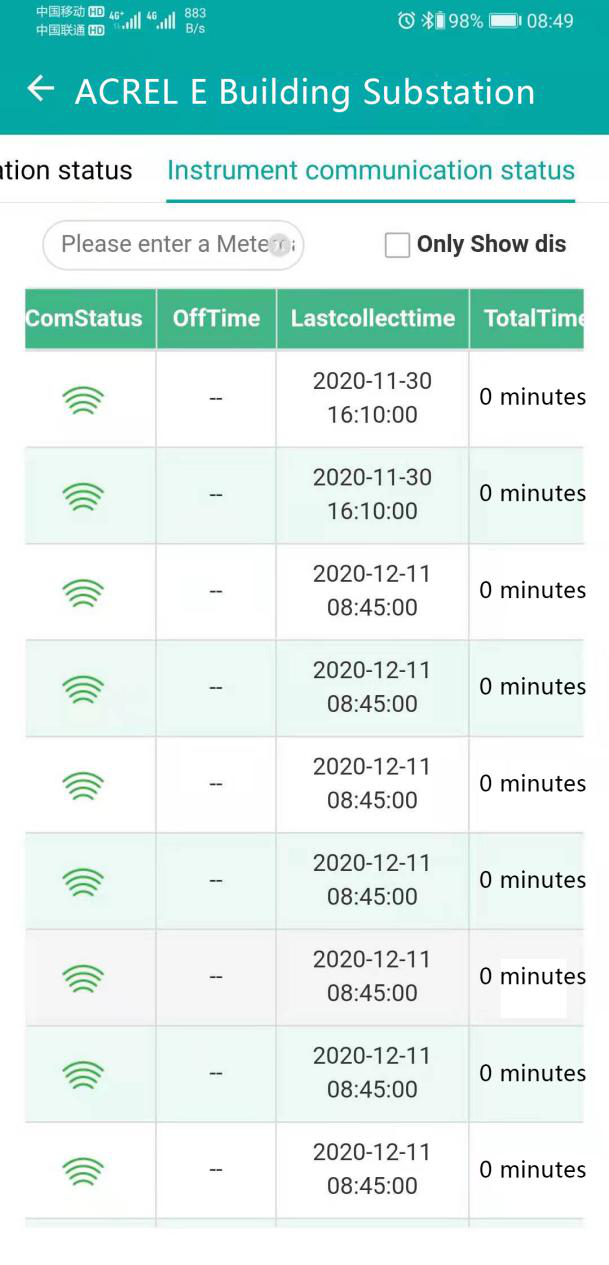

6.Web/APP

Product Selection

Application			Type	Functions
	Medium voltage distribution system Protection Relays	Feeder	AM5SE-F	Feeder Protection
			AM5-F
		Transformer	AM5SE-D2	Transformer Differential Protection
			AM5SE-TB	Transformer Protection
			AM5-T
		Voltage	AM5SE-UB	Voltage Transformer Supervision and Parallel Connection
			AM5-U	Voltage Transformer Supervision
		Motor	AM5SE-MD	Motor Differential Protection
			AM5SE-M	Motor Protection
			AM5-M
		Capacitor Bank	AM5SE-C	Capacitor Bank Protection
			AM5-C
		Bus tie	AM5SE-B	Standby power Automatic Switch
			AM5-B
		Overcurrent Protection	AM4	Feeder, Transformer Protection
			AM3SE
		Ring cabinet	AM2SE	Feeder, Transformer Protection
	Low voltage distribution system Protection Relays	Bus tie	AM5-DB	Standby power Automatic Switch
	Advanced power quality analysis	MV-LV Feeder Line	APQM-E	Advanced power quality analysis and revenue-accurate
	Wireless Temperature Sensors	MV-LV Feeder	ATE100	Wireless temperature sensor
			ATE200
			ATE400
			ATE100M
			Atc450-C	Wireless temperature receiving
			ATC600-C
			ARTM-Pn	Wireless temperature receiving & display
	Transformer	Transformer Temperature	ARTM-8	Transformer temperature measure

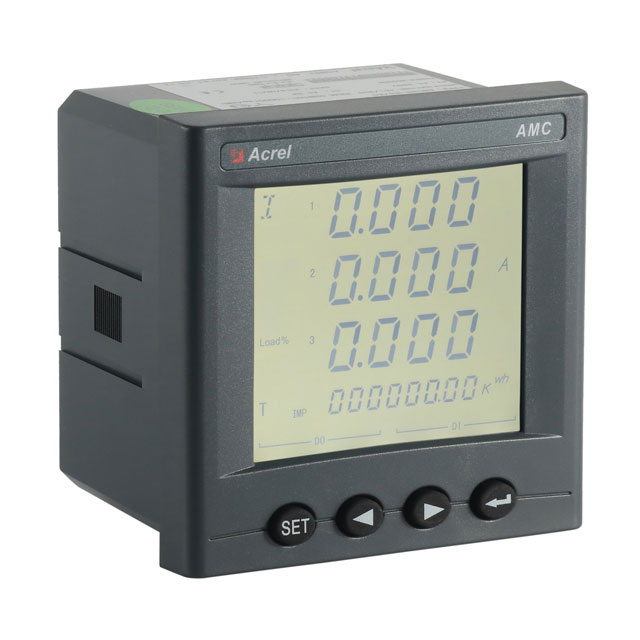

	Basic multi-function meters	MV-LV Feeder	ACR230	I,U,F,P,Q,S,PF,E; Power demand& current demand； Harmonics
			AMC96
			PZ96

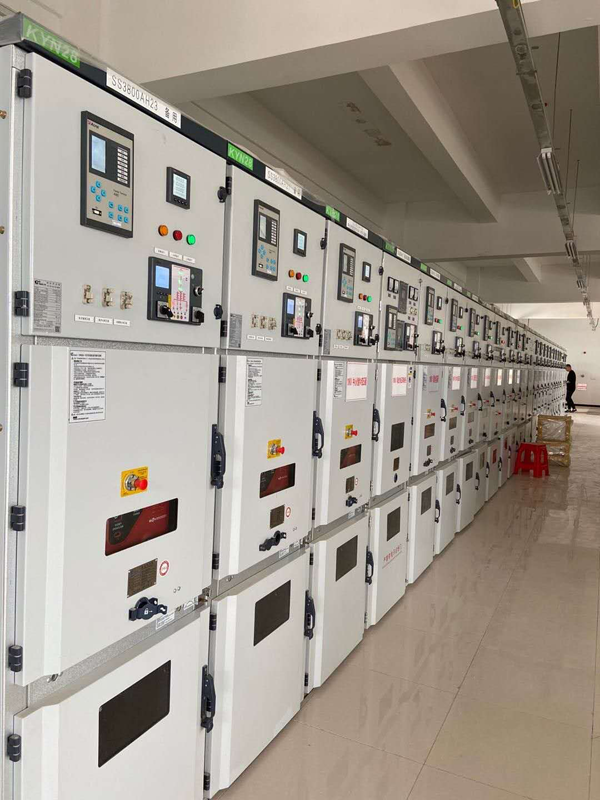

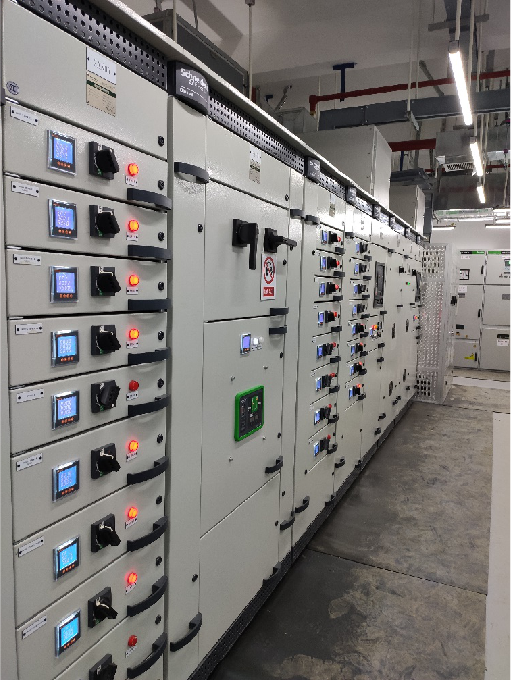

Photos on site
