Energy Consumption Monitoring Solution for Base Station

Views:44     Author:Elena     Publish Time: 2020-12-10      Origin:Site

Application

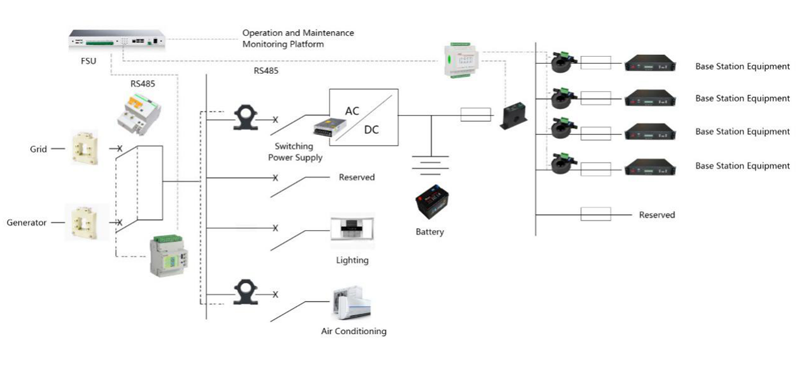

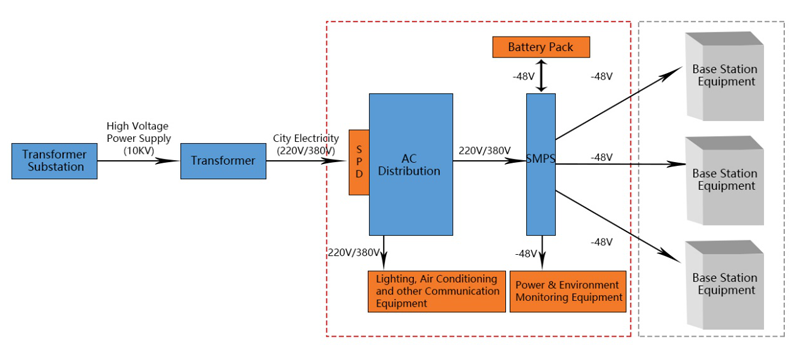

It is necessary to measure and monitor electrical parameters and measure energy in AC side of tower base station such as state grid,diesel,air conditioner,lighting,power supply and so on. In DC side,it is necessary to monitor electrical parameters and measure energy such as base station communication device,battery and other devices working under -48V power supply.The data can be real-time uploaded by RS485.

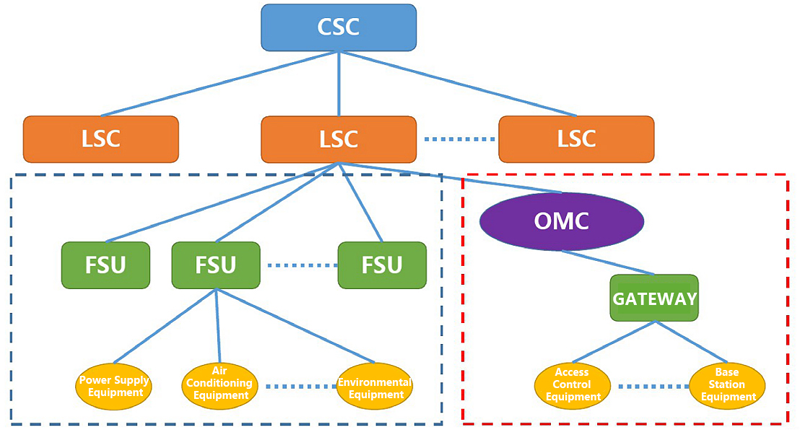

Structure




Main Function


1.Measurement:

Multi circuits voltage,current,power,energy and other electrical parameters.

2.Communication:

RS485 Modbus-RTU,NB or 4G

3.Certificate:

With CE and IEC

4.Accuracy:

0.5s or 1


Product Selection

HG9A9446

1.AMC96L-E4/KC AC single circuit energy meter

·Installation:panel mounted

·Circuit 3 phase input 220V/5A 50/60HZ

·Measurement:voltage,current,power,energy and other parameters.

·Communication:RS485 Mobus RTU

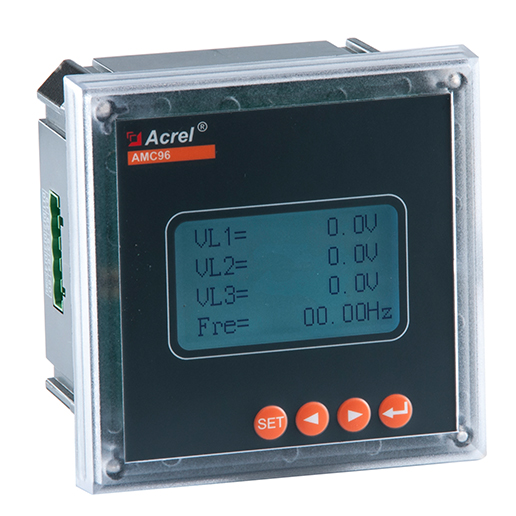

AMC96N-4E3

2.AMC96N-4E3 Multi circuits AC energy meter

·Installation:panel mounted

·4 circuits 3 phase or 12 circuits single phase AC input,external CTs,50/60HZ

·Measurement:voltage,current,energy and other parameters.

·Communication:RS485 Mobus RTU

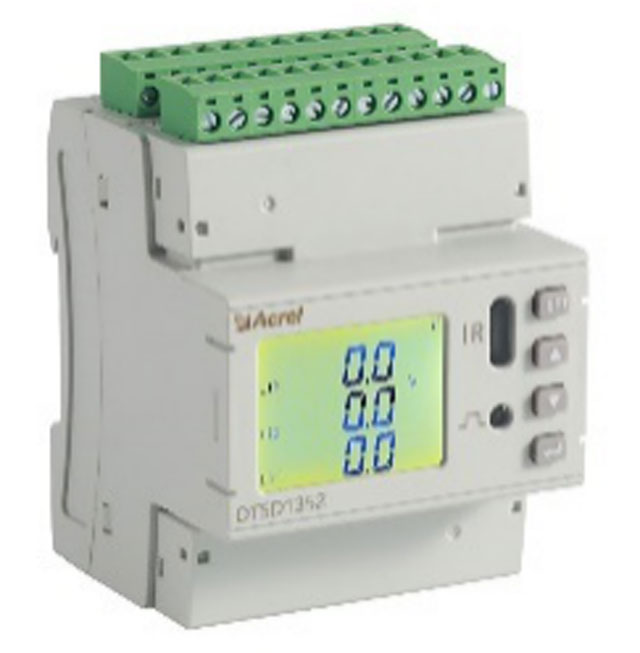

DTSD1352-xSXD

3.DTSD1352-xSyD Multi circuits AC energy meter

·Installation:DIN Rail 35mm

·X circuits 3 phase and Y circuits single phase AC input,external CTs,50/60Hz

·Measurement:voltage,current,power,energy and other parameters

·Communication:RS485 Modbus RTU

HG9A5405

4.ADW350 Wireless energy meter

·Installation:DIN Rail 35mm

·3 circuits DC input or 1 circuit 3 phase AC input

·Measurement:voltage,current,power,energy and other parameters

·Communication:NB or 4G


IMG_7811

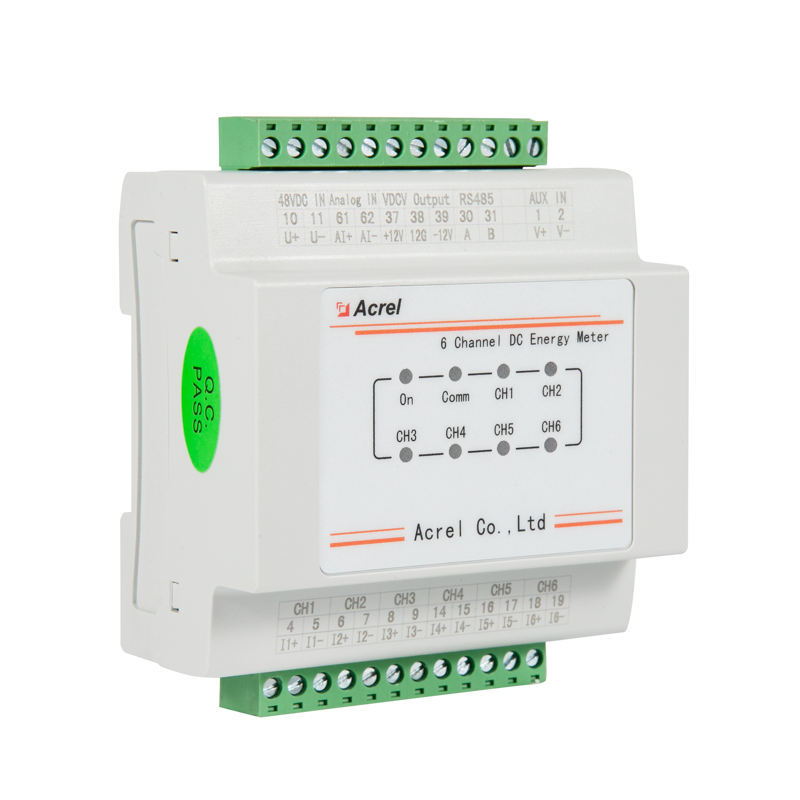

5.AMC16-DETT Multi circuits DC energy meter

·Installation:DIN Rail 35mm

·6 circuits DC input,-48V voltage input,current input by 5V output hall effect current sensor

·Measurement:DC voltage,current,power,energy and other parameters

·With ±12V inner power supply for hall effect current sensor

·Communication:RS485 Modbus RTU



EKA背面

6.AHKC Hall Sensor

Common Specification: 1000A/5V

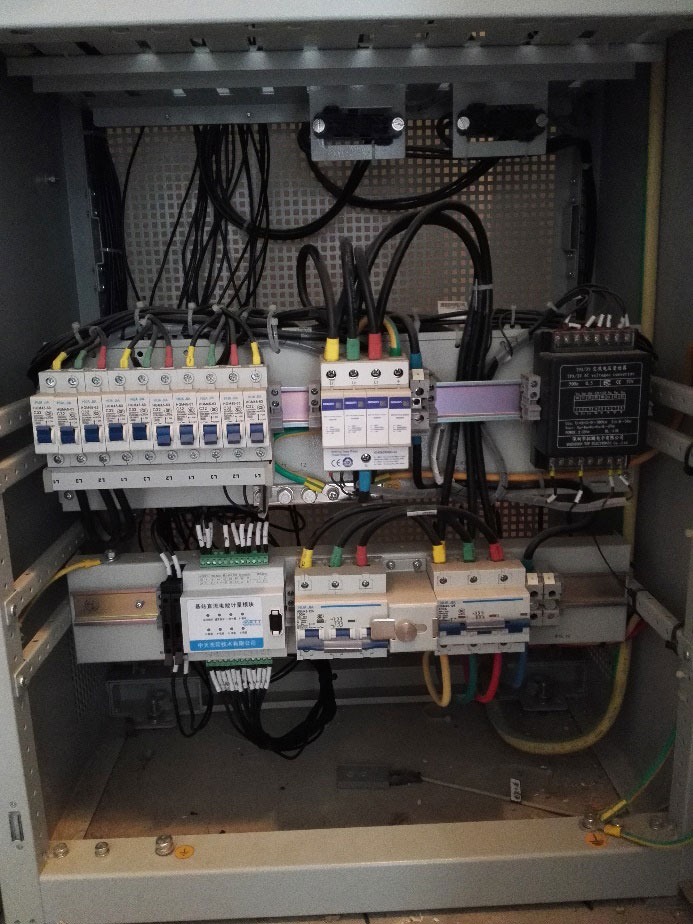

Photos on site
