Wireless Temperature Monitoring System

Views:35     Author:Elena     Publish Time: 2020-12-10      Origin:Site

Application

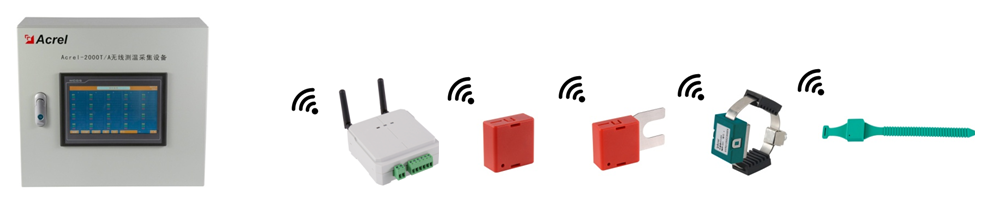

Structure
Main Function

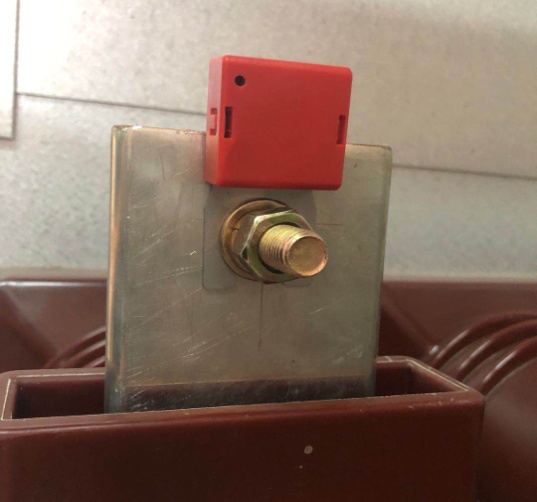

1.Wireless monitor temperature

  1. 图片4

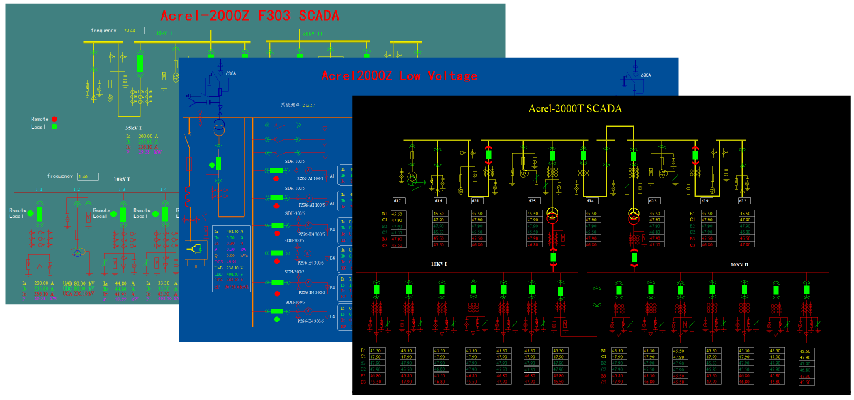

2.Temperature display

  1. 图片7

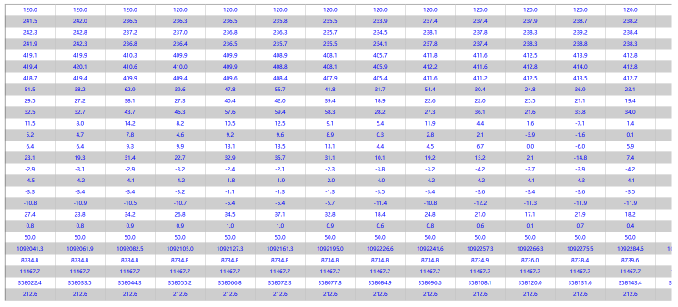

  2. 3.Report

  3. 图片8

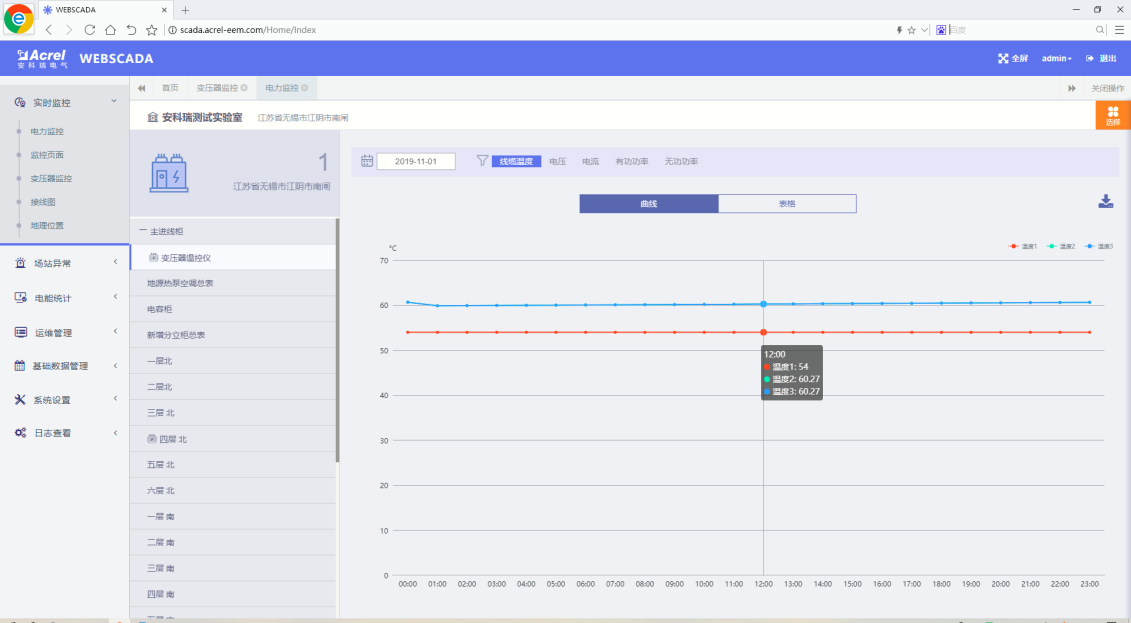

  1. 4.Curve

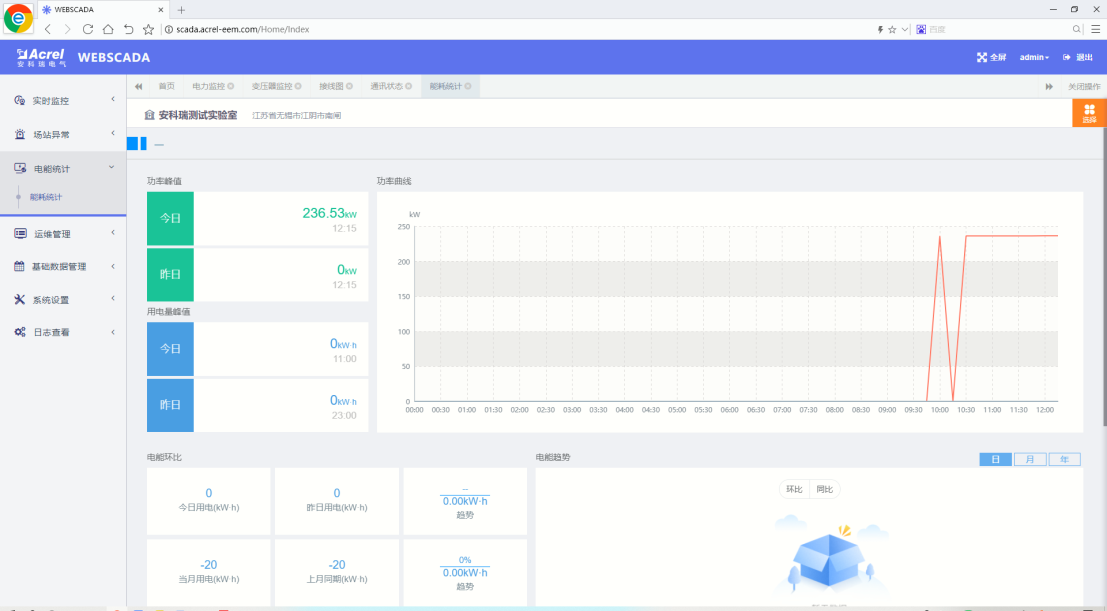

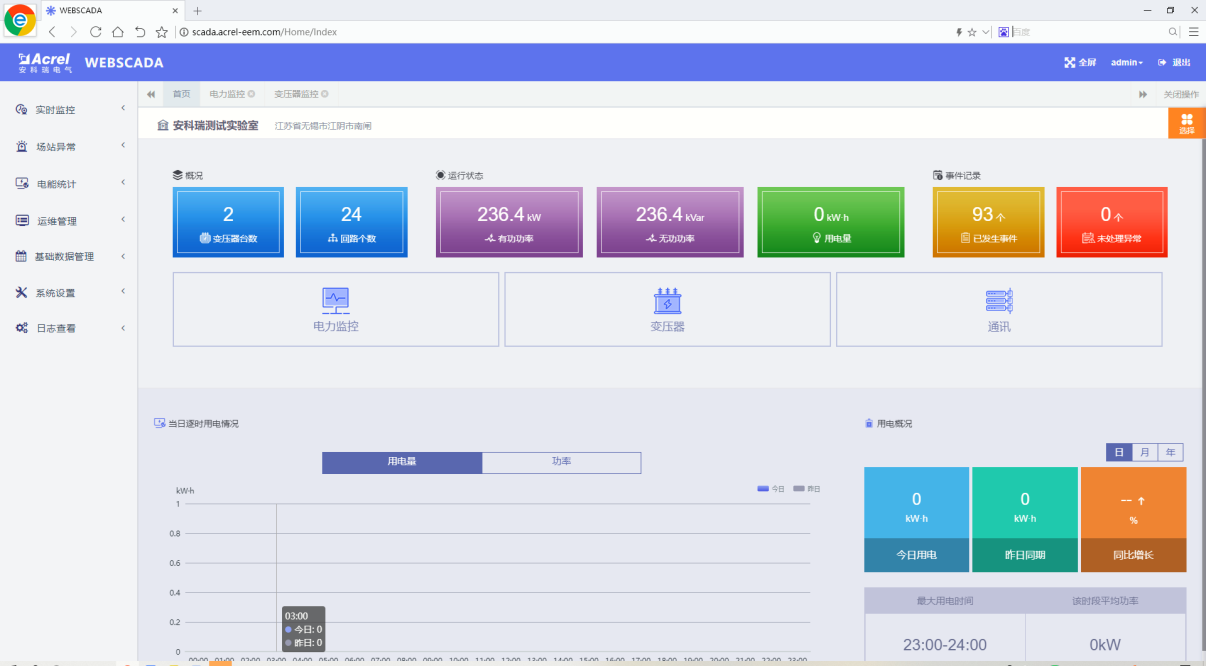

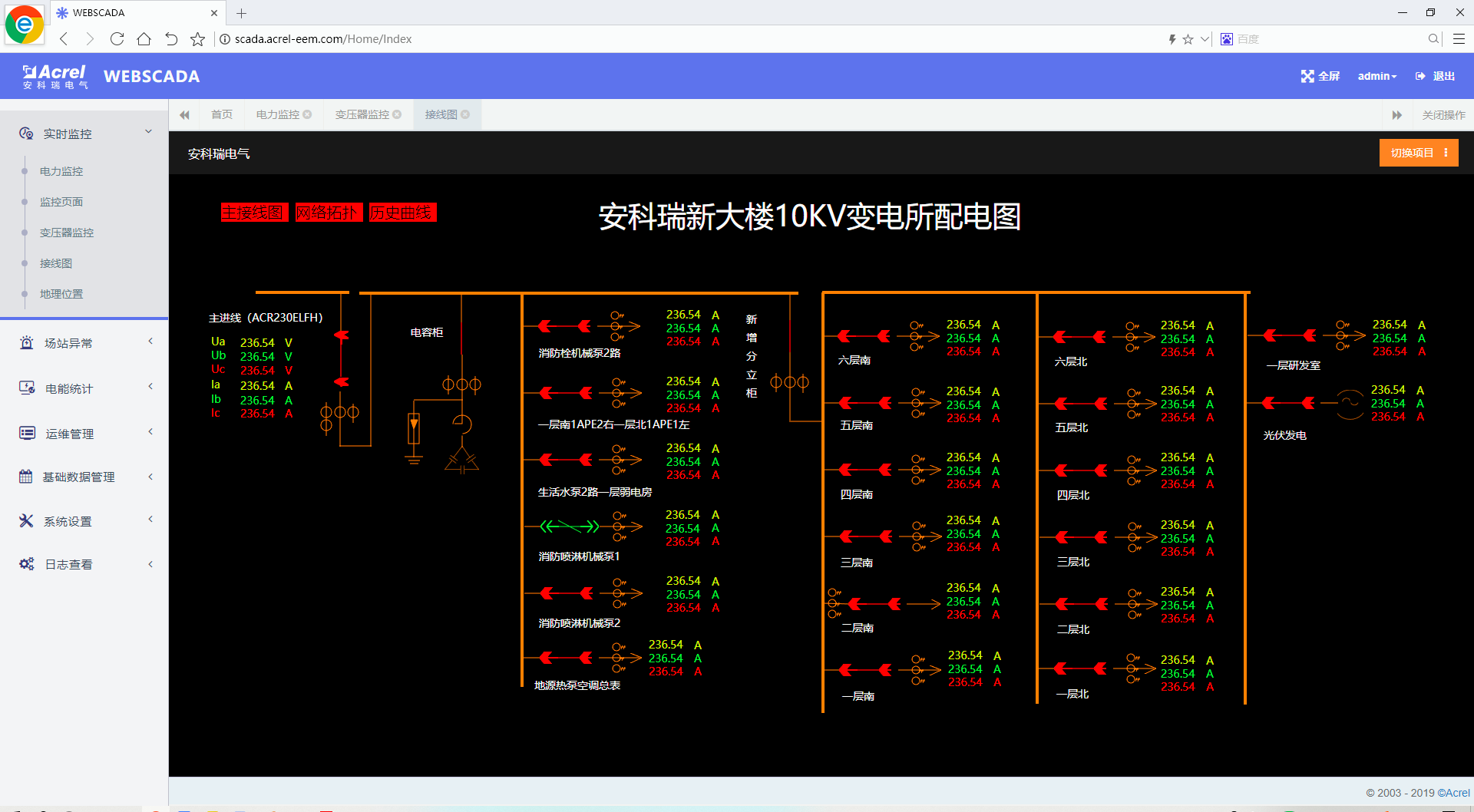

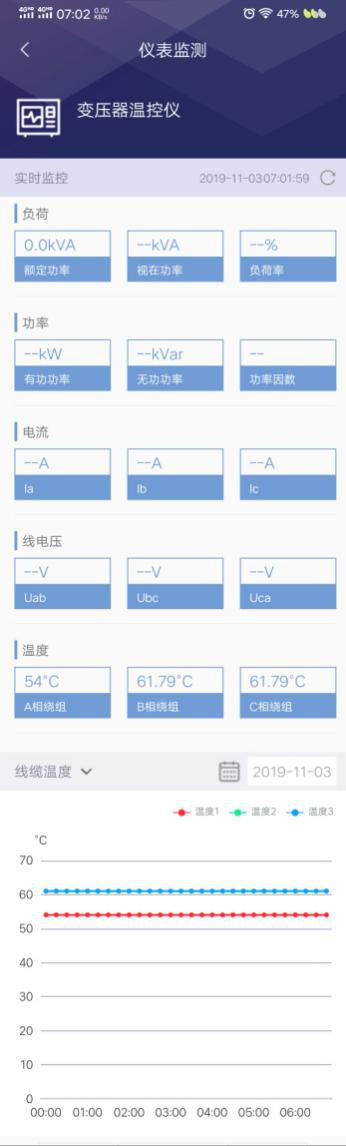

  1. 5.Web/APP

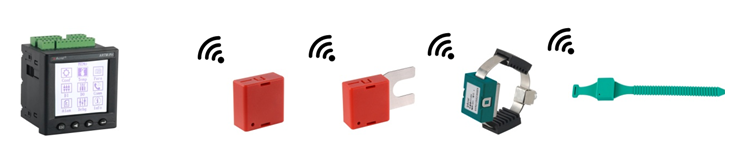

Product Selection

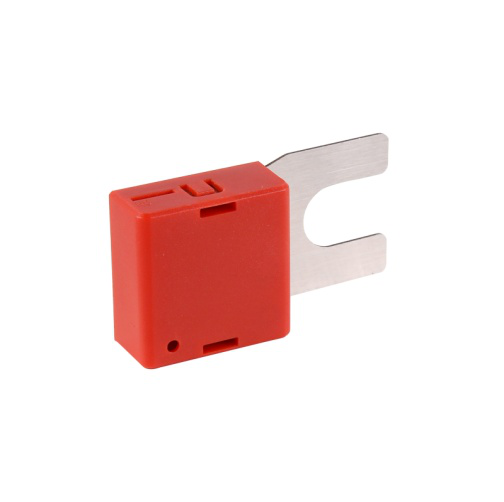

1.ATE400

·Small size;

·Wireless transmit;

·Wireless transmission distance, 150 meters;

·Fase sampling frequency,15s;

·CT-powered,more than 5A starting current;

·Widely temperature measuring range, -40℃~125℃




2.ATE200

·Wireless transmit;

·Wireless transmission distance, 150 meters;

·Fase sampling frequency,25s;

·Battery -powered,more than 5 years;

·Widely temperature measuring range, -40℃~125℃





3.ATE100

·Wireless transmit;

·Wireless transmission distance, 150 meters;

·Fase sampling frequency,25s;

·Battery -powered,more than 5 years;

·Widely temperature measuring range, -40℃~125℃




4.ATE100M

·Wireless transmit;

·Wireless transmission distance, 150 meters;

·Fase sampling frequency,25s;

·Battery -powered,more than 5 years;

·Widely temperature measuring range, -40℃~125℃



5.ATC450-C

·Wireless temperature measurement;

·Measuring 60 points;

·1 RS485 serial communication, Modbus-RTU;

·Power supply adapt with DC24V



6.ATC600-C

·Wireless temperature measurement;

·Measuring 240 points;

·1 RS485 serial communication, Modbus-RTU;

·2 alarm relays;

·Power supply adapt with AC/DC220V,AC/DC110V



7.ARTM-Pn

·Wireless temperature measurement,60 points;

·U, I, P, Q, f, Ep, Eq measurement;

·4 digital inputs;

·2 alarm relays, high temperature alarm;

·LCD display;

·Power supply adapt with AC220V, DC220V, DC110V, AC110V;

·1 RS485 serial communication, Modbus-RTU.

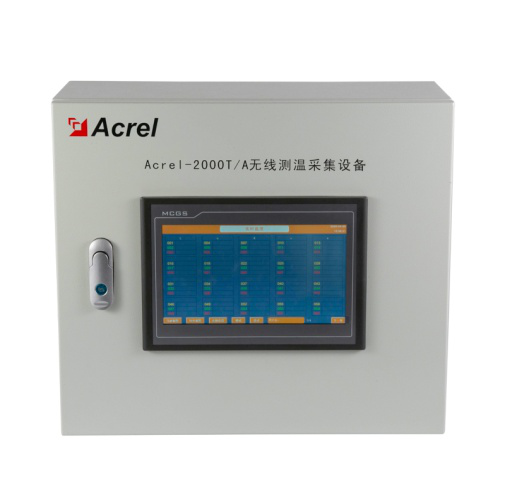

8.Acrel-2000T/A

·Wireless temperature measurement,240 points;

·Power supply adapt with AC220V, DC220V, DC110V, AC110V;

·Temperature Curve;

·High temperature alarm, buzzer;

·1 RS485 serial communication, Modbus-RTU;

·1 Ethernet communication.



Typical Solution

1.


2.


3.
