Din rail remote terminal unit

● RS485 (MODBUS -RTU) ● Channel state indicator and communication state indicator ● 24VDC (±10%); 220VAC, allow AC/DC 85~265V
  • ARTU-KJ8
  • ACREL

Download

Manual of ARTU-KJ8:

CE of ARTU-KJ8:


Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application:Base station


ARTU-KJ8 Remote Terminal Unit

ARTU-KJ8 remote communication control unit is designed particularly for acquisition of switching value and remote relay output in applications like intelligent distribution and industrial automation. It implements the data exchange through communication and upper computer monitoring system.


1.It is equipped with channel state indicator and communication state indicator.
2.It applies both software and hardware in order to prevent the system halting.
3.Its size is small,and easy to install.


Product Description


HG9A9386

Frequency

≤500HZ


Power consumption

24VDC(±10%); 220VAC, allow AC/DC 85~265V


Consumption

Auxiliary power supply:power consumption≤5W


Installation:

DIN rail 35mm


Dimension(L*W*H):

88*71*61.5mm


Switch Relay:

Power relay





Display


kj8示意





Parameter

Parameter


Specification Description
Auxiliary power supply DC 24V
AC 220V, AC/DC85~265V
Power consumption ≤5W
Working temperature -5℃~55℃
Storage temperature -25℃~70℃
Altitude ≤2500m
Insulating strength 2kV/5s,50Hz between all relays and other terminal groups; 1kV/5s between the other terminal

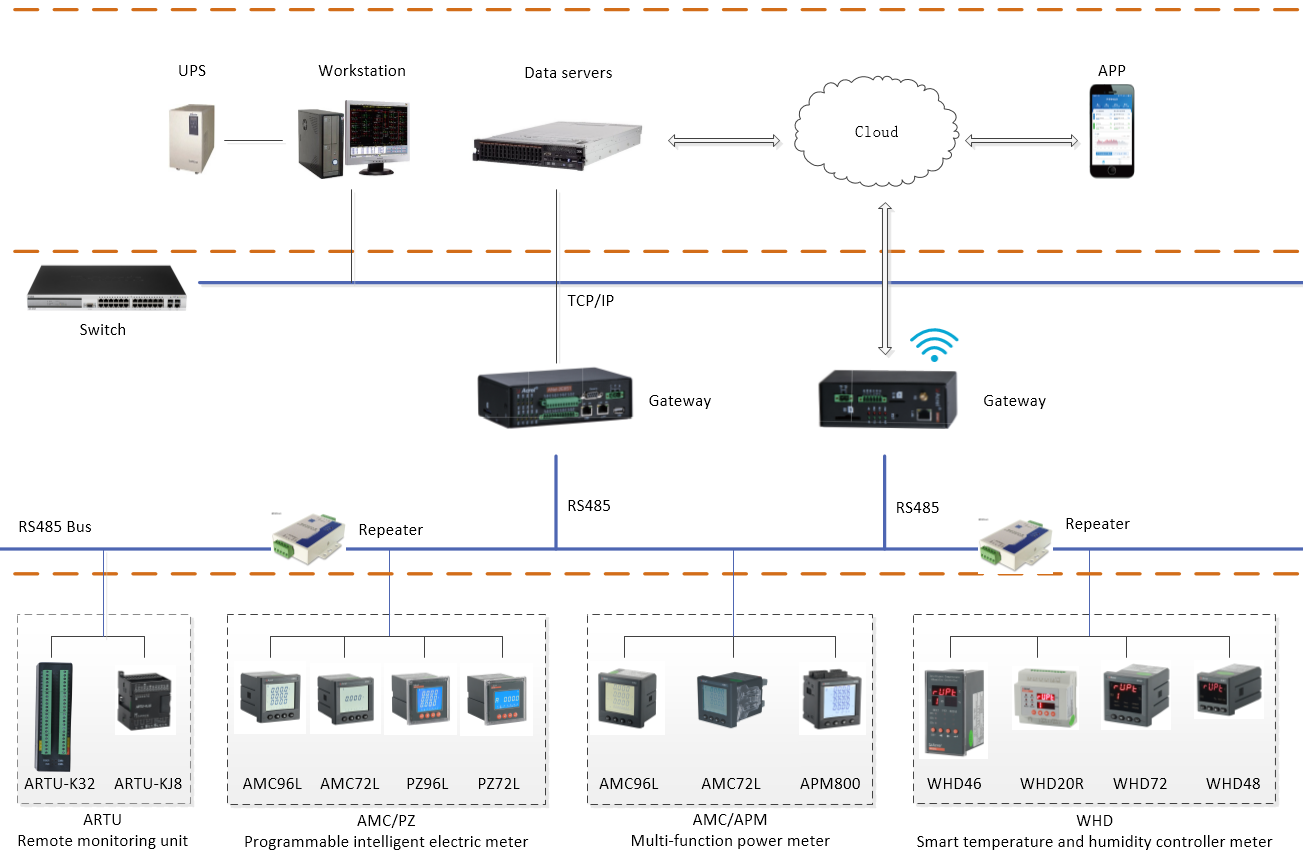

Typical connection


typical connection
