Energy Management System

Views: 182     Author: Elena     Publish Time: 2020-12-10      Origin: Site

Application



Structure


Main Function


1.Overview of Energy Consumption


2.Statistics of Energy Consumption


3.Data Reading


4.Analysis Report on Energy Consumption













Product Selection
HG9A9451

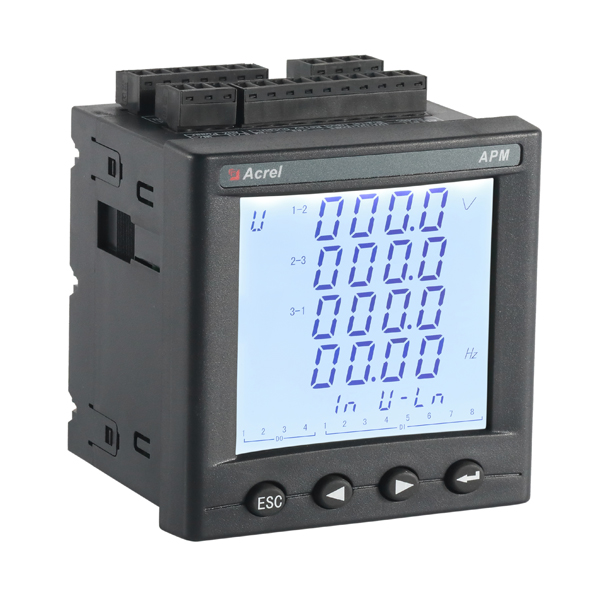

1.APM810 Three Phase AC Energy Meter

for High voltage or Low voltage circuit

● True RMS Measurements

● THD with 63rd Harmonics

● K-Factor and Crest Factor

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp


Read More

HG9A9446

2.AMC96L-E4/KC Three Phase AC Energy Meter

for Power cabinet

● True RMS Measurements

● THD with 2-31st Harmonics

● Max/Min Log with Timestamp

● Internal Optional 4DI&2DO or 2DI&2DO&2AO

● Standard one Energy Pulse Output


Read More


3.ADW400

for Power cabinet

● Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh

●3×220/380V,3*380V,3*57.7/100V,3*100V

● 3×1(6)A,3×20(100)A,3×80(400)A,3×120(600)A

● Communication:RS485 or LoRa



HG9A9448

4.ADL3000-E Three Phase AC Energy Meter

for Power cabinet

●AC3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

●  U、I、P、Q、S、PF、kWh、kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st  Harmonics

● kWh Class 0.5S,kVarh Class 2


Read More

IMG_9862

5.ADL400 Three Phase AC Energy Meter

for Power cabinet

●AC220V

●3×1(6)A,3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 0.5

●DIN 35 mm


Read More

HG9A9449

6.ADL100-ET Single Phase AC Energy Meter

for Lighting cabinet

● 10(60)A,20(100)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm


Read More

IMG_9852

7.ADL200 Single Phase AC Energy Meter

for Lighting cabinet

●3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 1

●DIN 35 mm


Read More

ADL10-E

8.ADL10-E Single Phase AC Energy Meter

for Lighting cabinet

● 10(60)A

● RS485,MODBUS-RTU

● LCD display

● kWh Class 1,Kvarh Class 2

● U、I、P、Q、S、PF、kWh、kvarh

● DIN 35mm


Read More

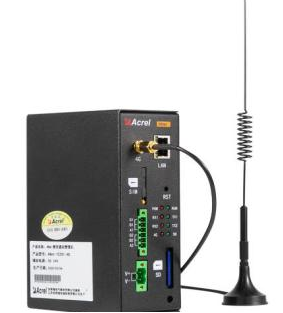

9.ANet series Gateway

● Support Modbus-RTU,Modbus-TCP,DLT645,

IEC103,CJT188 device

● Support HTTP(s) XML and JSON forwarding format

● Max 1000 data points,max 64 devices

● 1 GPRS for data transmit(2G/3G/4G) (Optional)

● Build-in SQL data base




10.AWT100 Gateway

●Ethernet Gateway,

●For simple, cost-effective serial-to-Ethernet connectivity




11.APQM-E

Measurement of electrical parameters, harmonics, inter-harmonics, voltage fluctuation, flicker,

●Monitoring of voltage swell, voltage sag, voltage interruption,

●Statistics of power quality limit times, voltage qualification rate, and form the report.



multi circuit energy meter (1)

12.ADF400L Multi Circuit Energy Meter

DIN rail mount

36 circuits single phase 80A direct  input

12 circuits 3 phase 80A direct  input

12 circuits 3 phase 5A CT Input

I,U,F,P,Q,S,PF,E;

Standard RS485 port and Modbus RTU protocol


Read More

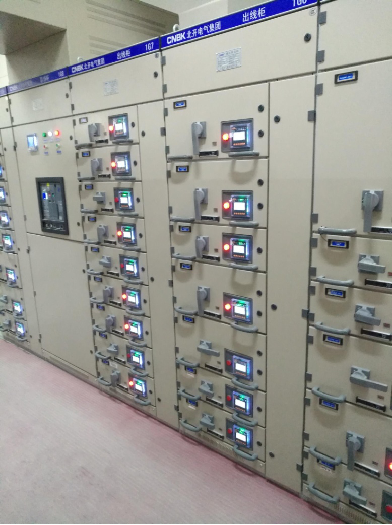

Photos on site
