Panel mounted three phase energy meter

● True RMS Measurements
● Unbalance & Phase Angles
● Demands and Multi-Tariff energy
● Max/Min Log with Timestamp
● Accuracy: 0.2s
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • APM801

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Standards:CE


APM series power meters of Acrel are power meters that are designed according to IEC standards and synchronized with international advanced technology.
APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comperehensive monitoring of the quality of power supply network.


Product Description


模块

Communication

Standard: RS485(Modbus-RTU)
Optional: Profibus(Profibus-DP), Ethernet(Modbus-TCP,HTTP,DHCP)


Display

LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement, harmonic content


Rated U and I

Voltage:AC 100V、110V、400V、690V;Current:AC 1A, 5A, support 2 mm2 line access;


细节

Accuracy

Voltage、current and power:class 0.2S
Active power:class 0.2S
Reactive power: class 2


Frequency

Range:45-65Hz


Auxiliary power supply

AC/DC 85V~265V or AC/DC 115~415V


Pulse output

Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A)、8000(1A) imp/kWh;



Parameter

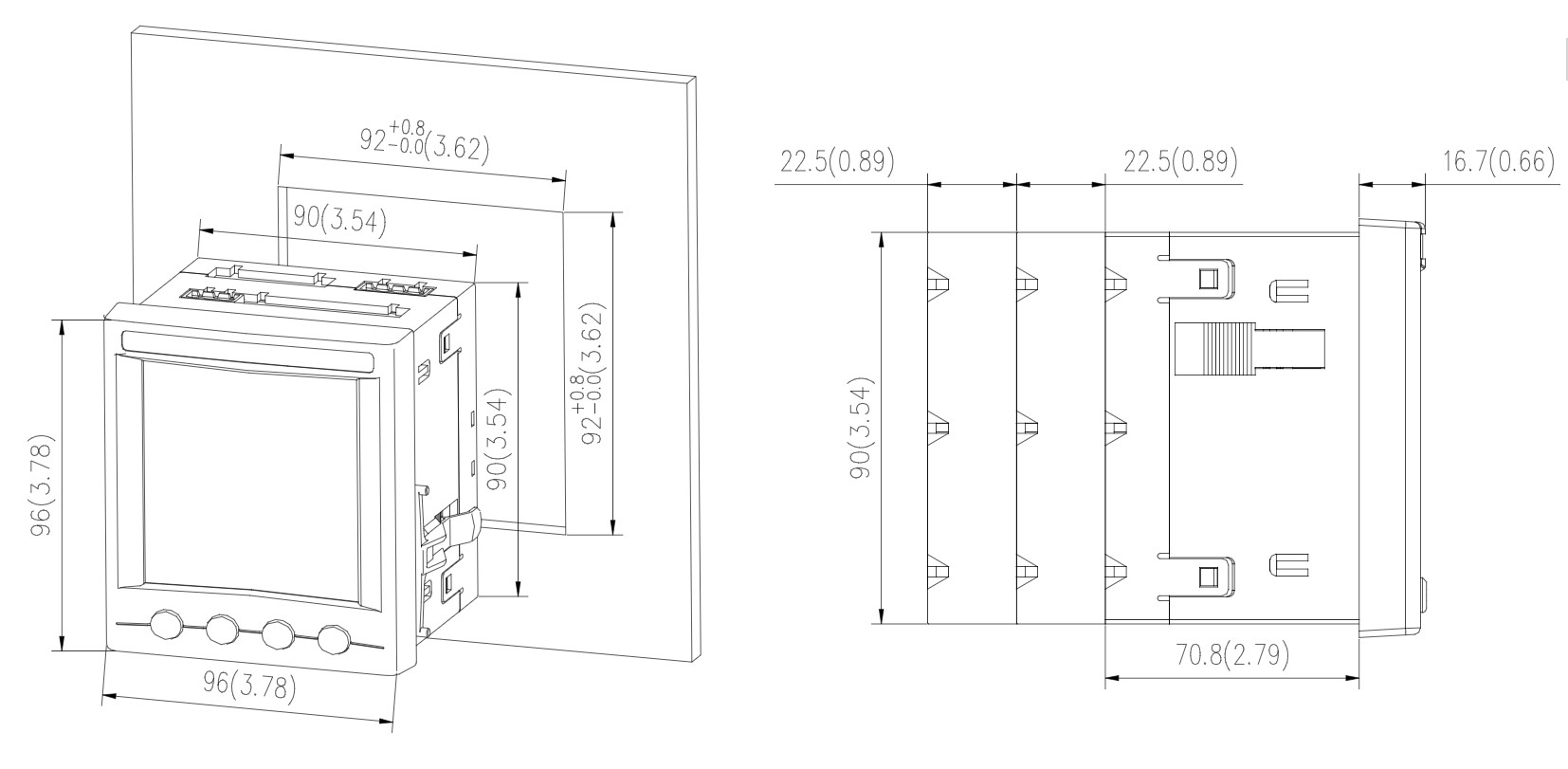

Dimension

尺寸

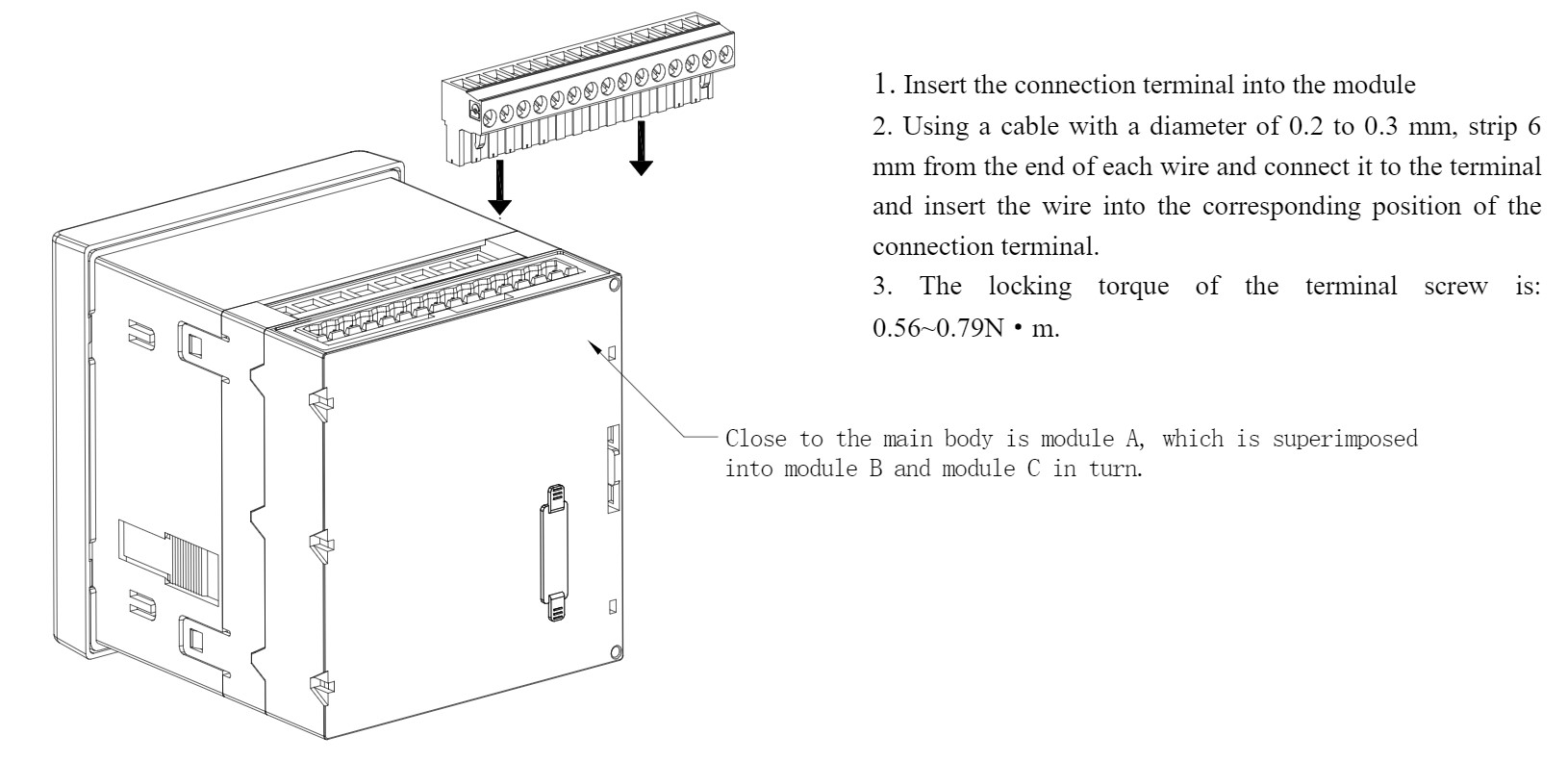

端子


When install the meter, loosen the locking screw of the fixing bracket, remove the fixing bracket, insert the instrument into the mounting hole, install the fixing bracket and tighten the screw to make the instrument be firmly installed without loosening.Shape for clamp reed squeeze installation.

Parameter

Display Display method Dot matrix LCD
Resolution 192*160
Backlight White LED
Visible area 69mm*62mm(2.8Inch/6.66inch)
Signal Electrical network Three-phase three-wire,three-phase four-wire,see the wiring diagram
Frequency 45~65Hz
Voltage Rated value:AC3*57.7/100V、AC3*63.5/110V、AC3*230/400V、AC3*400/690V;690V direct connection on voltage input terminal(L-L)
Overload:1.2 times rated value(continuous);2 times rated value/1second
Power consumption:<0.5VA(per channel)
Current Rated value:AC3x1(1.2)A、AC3x5(6)A,support 4mm2 line access
Overload:1.2 times rated value(continuous);10 times rated value/1second
Power consumption:<0.5VA(per channel)
Extensions MD82 8 digital inputs + 2 digital outputs with changeover contacts(8DI+2DO)
MLOG TF card storage(alarm records,event records,electrical parameters and energy timing records,etc)
MA84 8 analog inputs(class 0.5)+ 4 analog outputs(class 0.5)(8AI+4AO)
MCM

1 RS485/Modbus-RTU,support master mode or slave mode

MCP 1 Profibus-DP,Configure this function to give MCM function,referred to as MCMP for short
MCE

1 Ethernet,support Modbus-TCP,http,SMTP,DHCPprotocol,Configure this function to give MCM function,referred to as:MCME
