Energy Efficiency Management System

Views:6     Author:Elena     Publish Time: 2020-12-10      Origin:Site

Application



Structure


Main Function


  1. 1.Platform Overview

  2. 图片3

  3. 2.Remote Data Monitoring

  4. 图片4

  5. 3.Energy Report

  6. 图片5

  7. 4.Historical record and report

  8. 图片6

  9. 5.Energy Efficiency Analysis

  10. 图片7

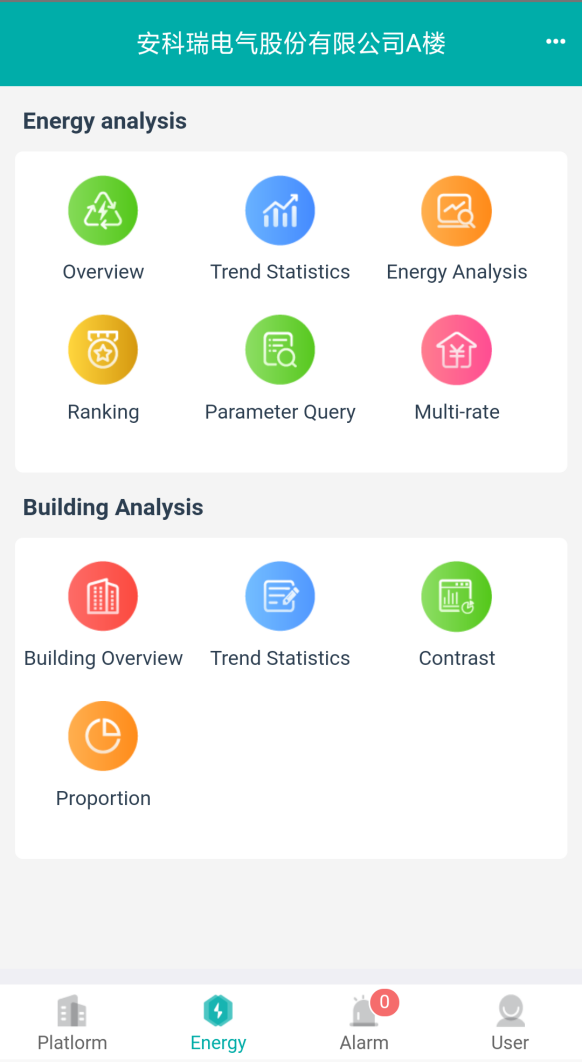

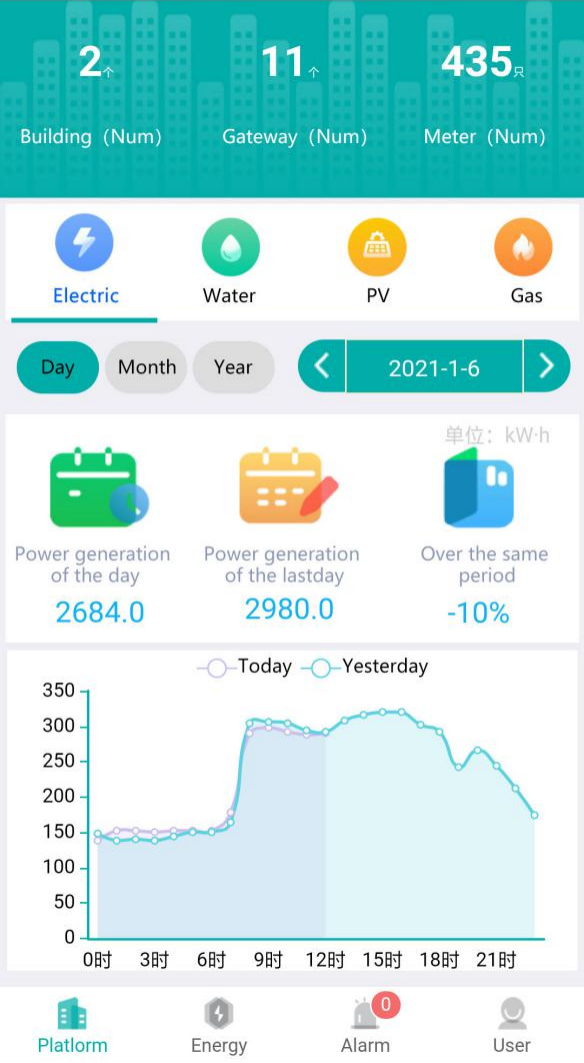

  11. 6.Web/APP

  12. 图片8






Product Selection
HG9A9451

1.APM810 Three Phase AC Energy Meter

for High voltage or Low voltage circuit

● True RMS Measurements

● THD with 63rd Harmonics

● K-Factor and Crest Factor

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp


Read More

HG9A9446

2.AMC96L-E4/KC Three Phase AC Energy Meter

for Power cabinet

● True RMS Measurements

● THD with 2-31st Harmonics

● Max/Min Log with Timestamp

● Internal Optional 4DI&2DO or 2DI&2DO&2AO

● Standard one Energy Pulse Output


Read More


3.ADW400

for Power cabinet

● Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh

●3×220/380V,3*380V,3*57.7/100V,3*100V

● 3×1(6)A,3×20(100)A,3×80(400)A,3×120(600)A

● Communication:RS485 or LoRa



HG9A9448

4.ADL3000-E Three Phase AC Energy Meter

for Power cabinet

●AC3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

●  U、I、P、Q、S、PF、kWh、kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st  Harmonics

● kWh Class 0.5S,kVarh Class 2


Read More

IMG_9862

5.ADL400 Three Phase AC Energy Meter

for Power cabinet

●AC220V

●3×1(6)A,3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 0.5

●DIN 35 mm


Read More

HG9A9449

6.ADL100-ET Single Phase AC Energy Meter

for Lighting cabinet

● 10(60)A,20(100)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm


Read More

IMG_9852

7.ADL200 Single Phase AC Energy Meter

for Lighting cabinet

●3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 1

●DIN 35 mm


Read More

ADL10-E

8.ADL10-E Single Phase AC Energy Meter

for Lighting cabinet

● 10(60)A

● RS485,MODBUS-RTU

● LCD display

● kWh Class 1,Kvarh Class 2

● U、I、P、Q、S、PF、kWh、kvarh

● DIN 35mm


Read More


9.ANet series Gateway

● Support Modbus-RTU,Modbus-TCP,DLT645,

IEC103,CJT188 device

● Support HTTP(s) XML and JSON forwarding format

● Max 1000 data points,max 64 devices

● 1 GPRS for data transmit(2G/3G/4G) (Optional)

● Build-in SQL data base

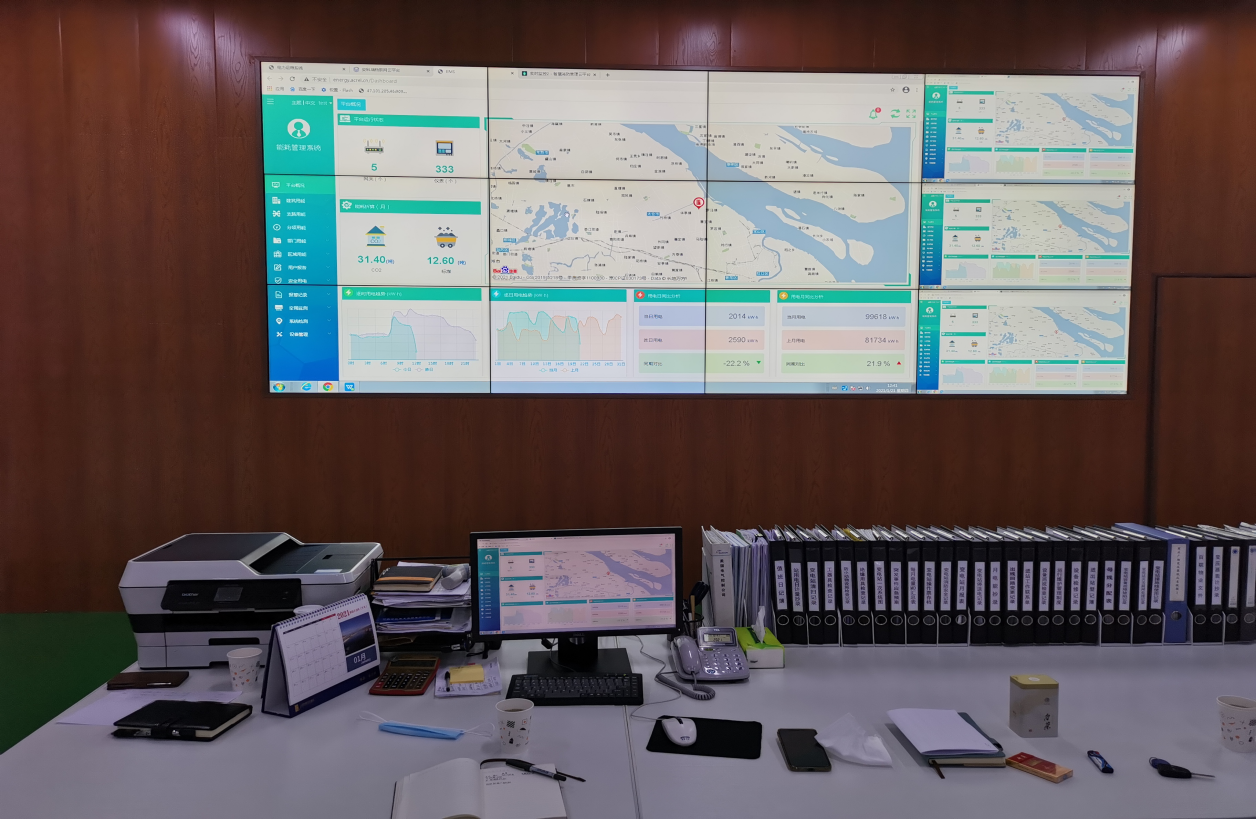

Photos on site
