Rail mounted single phase energy meter

ADL100-ET single phase electric meter is designed for single phase energy measurement on low voltage system and EV charging pile. The meter meet the related technical requirements of electronic meter in the IEC62053-21、IEC62053-22 standards.
  • ADL100-ET
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE


ADL energy meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation.


ADL100-ET single phase electric meter is designed for single phase energy measurement on low voltage system and EV charging pile. The meter meet the related technical requirements of electronic meter in the IEC62053-21、IEC62053-22 standards.

Product Description


示意显示

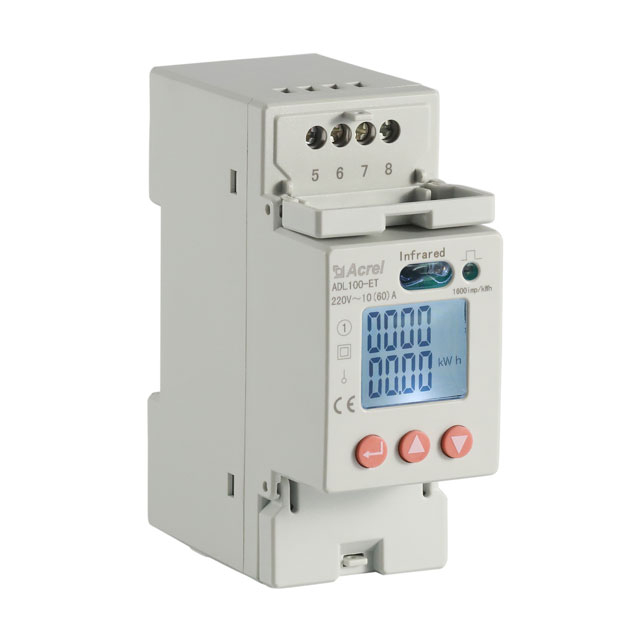

ADL100-ET Single Phase Multi-Function Energy Meter

● AC220V

● 10(60)A,20(100)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm

Communication

RS485(Modbus-RTU)

Display

8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)

Rated U and I

AC220V
10(60)A, 20(100)A

Accuracy

kWh Class 1

Auxiliary power supply(self supply):

220Vac,Range:154~264Vac

Installation:

DIN 35mm



Parameter

Parameter


Voltage Reference voltage AC220V
Reference frequency 50Hz
Consumption <10VA(Single phase)
Current Maximum current 60A
Starting current 0.004Ib
Consumption <4VA(Maximum current)
Measurement performance Accuracy of active kWh Class 1
Standards compliant
IEC62053-21:2003
Pulse Pulse width 80+20ms
Pulse constant 1600imp/kWh
Communication Interface
RS485
Protocol Modbus-RTU
Outline L*W*H(mm) 36*88*70
Environment Temperature

Operating:-25~55℃

Storage:-40~70℃

Humidity ≤95%(No condensation)
Altitude <2000m
