Charging Pile Energy Management System Solution

Views:162     Author:Elena     Publish Time: 2020-12-10      Origin:Site

Application

In recent years, in response to global warming and climate change caused by greenhouse gas emissions,major countries have focused on promoting electric vehicles to replace traditional fuel vehicles. And the construction of charging piles is very important in the promotion of new energy vehicles.Therefore, a large number of charging pile projects have emerged around the world.


Single phase and three phase AC, DC energy meters complies with the corresponding IEC standards and can be used in all kinds of AC and DC charging piles to realize charging energy measurement, and can transmit electrical parameters in real time through communication.


Structure




Main Function


It can measure and display electrical parameters such as voltage, current, power, energy, and support RS485 communication and electric energy pulse output.

  1. 1.Energy Accuracy:

  2. Class 0.5S or Class 1

  3. 2.Optional Configuration:

  4. Optional multi tariff

  5. 3.Certificate:

  6. With CE or IEC certificed



Product Selection
ADL10-E

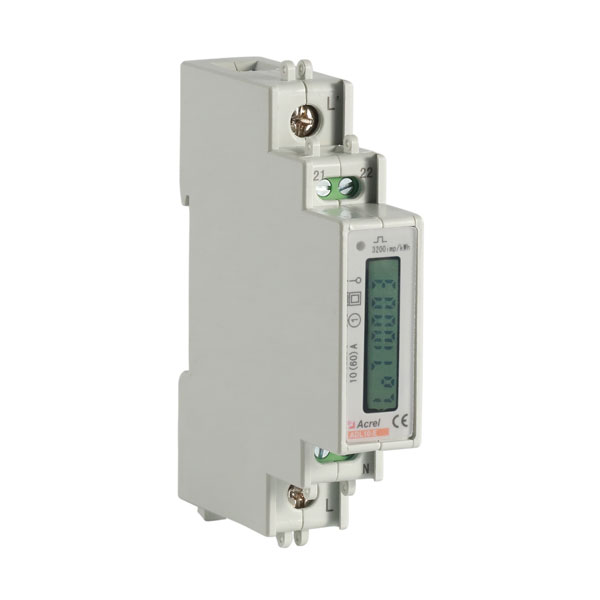

1.ADL10-E Single Phase AC Energy Meter

·Din rail mounted;

·Single-phase 60A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy;

·RS485 communication (Modbus protocol)


Read More

HG9A9449

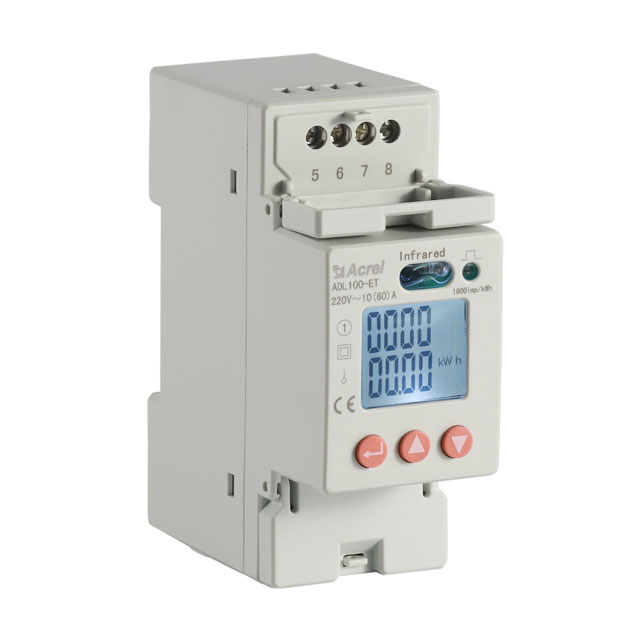

2.ADL100-E Single Phase AC Energy Meter

·Din rail mounted;

·Single-phase 60A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More

IMG_9852

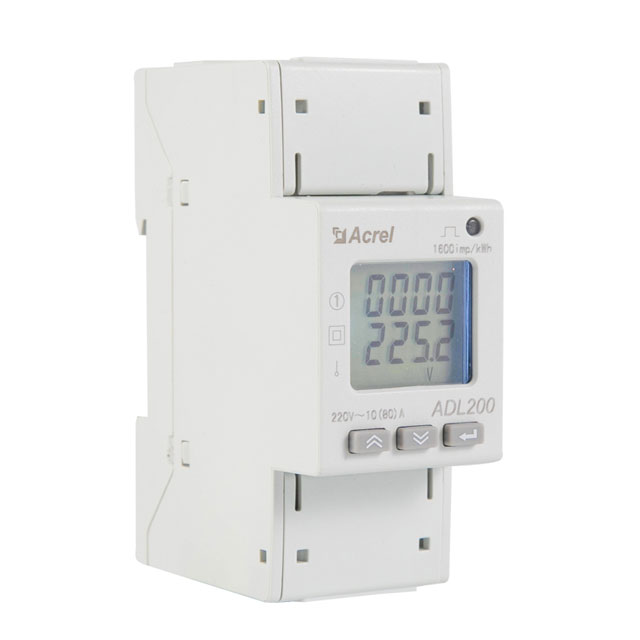

3.ADL200 Single Phase AC Energy Meter

·Din rail mounted;

·Single-phase 80A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More


IMG_9862

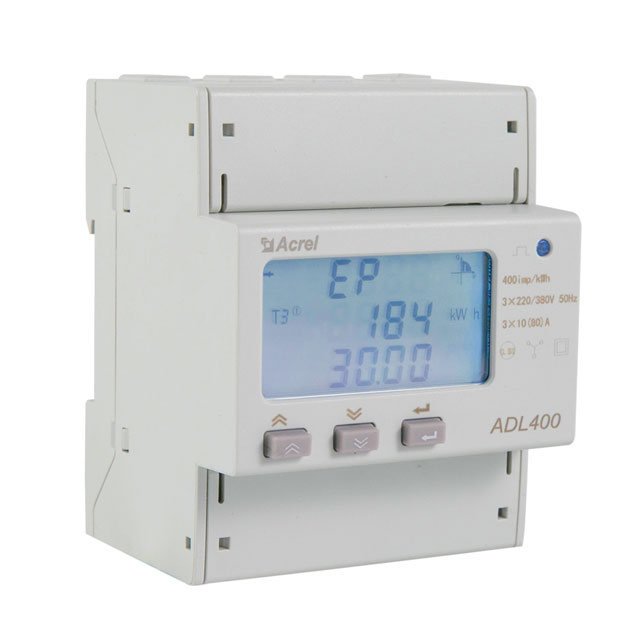

4.ADL400 Three Phase AC Energy Meter

·Din rail mounted;

·Three-phase 80A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More

HG9A9448

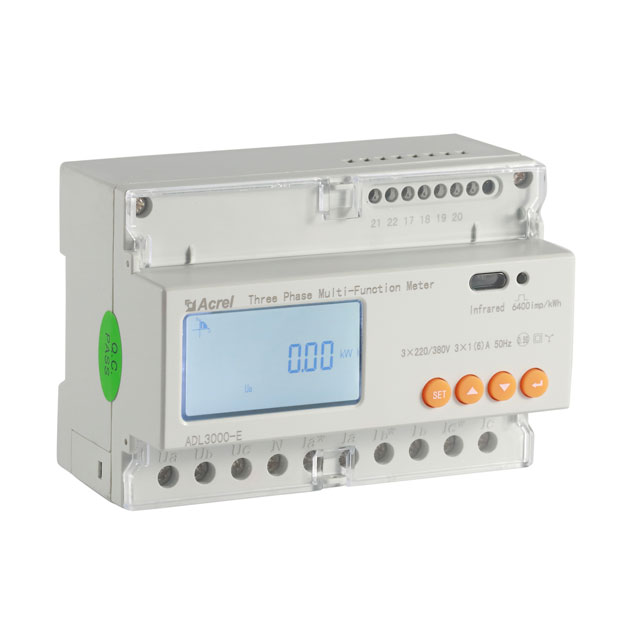

5.ADL3000-E Three Phase AC Energy Meter

·Din rail mounted;

·Three-phase 80A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More

HG9A9409

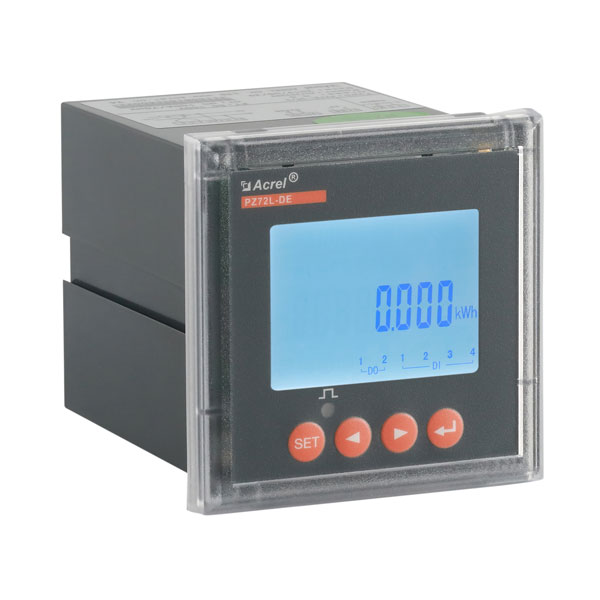

6.PZ72(L)-DE DC Energy Meter

·Panel mounted;

·Measure DC voltage, current, power; measure DC energy;

·Direct connect voltage 0-1000V;

·Current measurement support 75mV output of shunt, support 0-5V, 0-20mA output of hall;

·RS485(Modbus protocol).


Read More

DJSF1352正面

7.DJSF1352 DC Energy Meter

·Wall mounted;

·Measure DC voltage, current, power; measure DC energy;

·Direct connect voltage 0-1000V;

·Current measurement support 75mV output of shunt, support 0-5V, 0-20mA output of hall;

·RS485(Modbus protocol).


Read More

HG9A9349

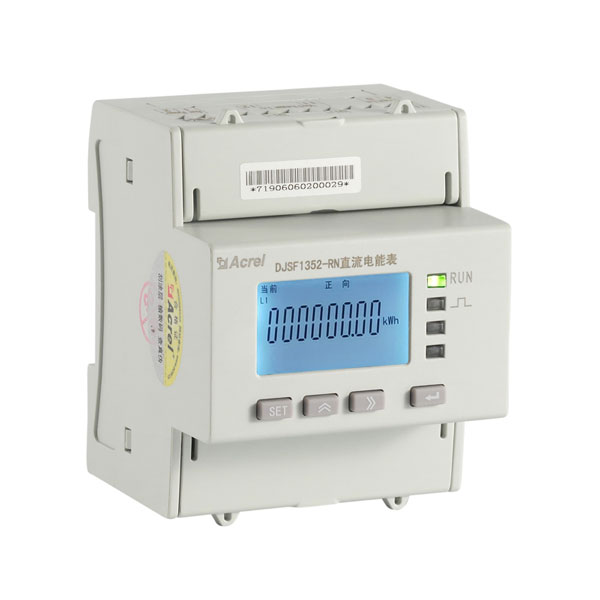

8.DJSF1352-RN DC Energy Meter

·Din-rail mounted;

·Support optional two-channel DC voltage, current, power; measure DC energy;

·Direct connect voltage 0-1000V;

·Current measurement support 75mV output of shunt, support 0-5V, 0-20mA output of hall;

·RS485(Modbus protocol).


Read More

分流器

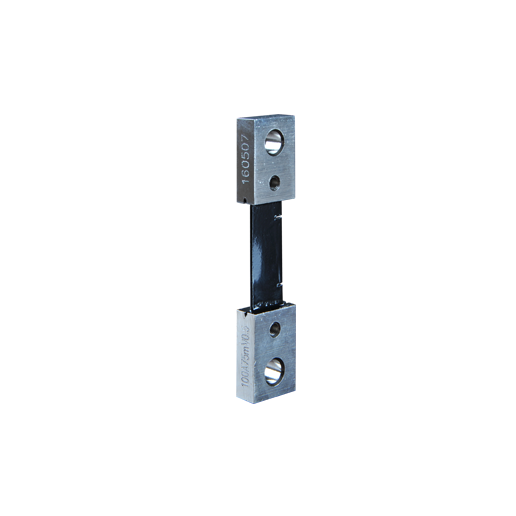

9.AFL-T Shunt

·Common Specification: 300A/75mV

EKAA侧面

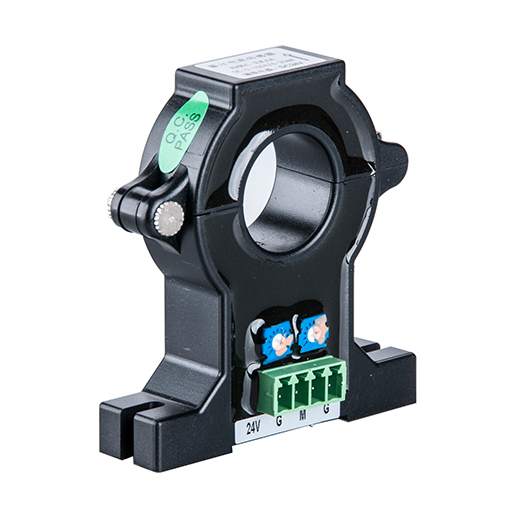

10.AHKC Hall Current Sensor

·Common Specification: 300A/75mV



Photos on site
