ADL200 din rail single phase energy meter

●AC220V
●10(80)A
●RS485(MODBUS-RTU)
●Set parameters
●LCD display
●kWh Class 1
●DIN 35 mm
  • ADL200
  • ACREL

Download

Manual of ADL200:ADL200 single phase energy meter specification.pdf

CE of ADL200:CE of ADL200.pdf

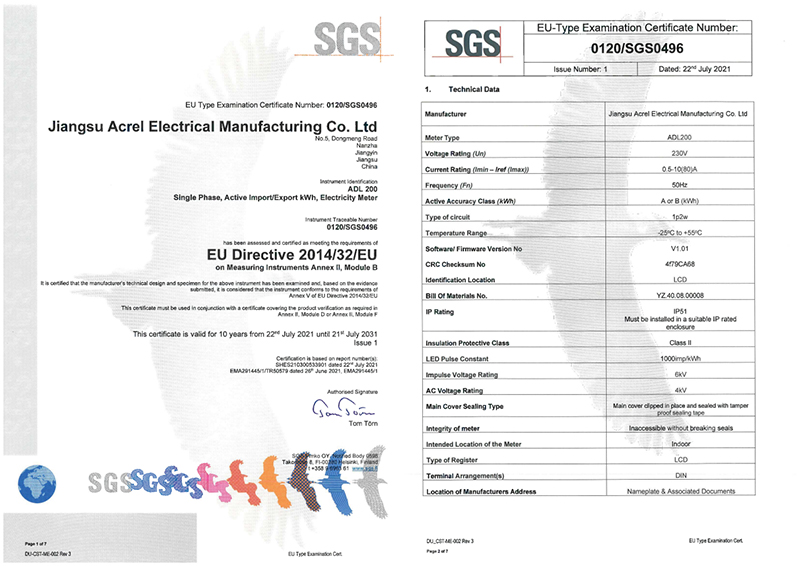

MID of ADL200:MID ADL200 single phase energy meter

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE

ADL200 single phase energy meter

ADL200 single-phase electronic watt-hour meter is mainly used to measure single-phase active energy in low-voltage networks. It can also measure voltage, current, power and other electricity. It is equipped with standard RS485 communication function, which is convenient for users to monitor, collect and manage electricity consumption.


It can be flexibly installed in the distribution box to realize the sub-item electric energy measurement, statistics and analysis of different areas and different loads.


Product Description
IMG_9852

Rated U and I

AC 220V,10(80)A

Accuracy

kWh: Class1

Frequency

45~65Hz

Power Supply(self supply)

154~264Vac

Pulse output

kWh

Input consumption:

<4VA

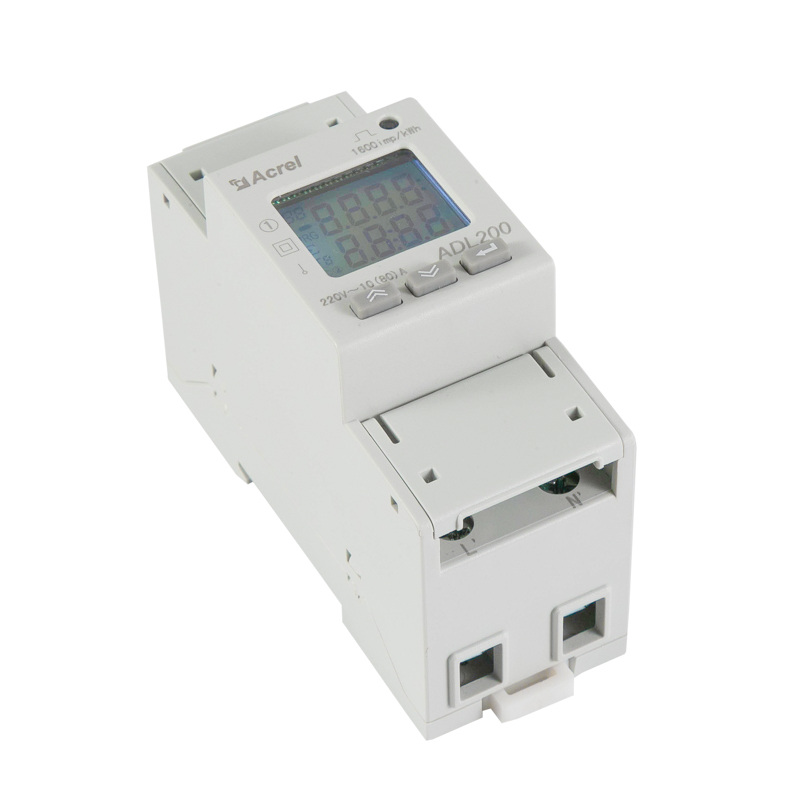

IMG_9856
Dimension(L*W*H)
90*36*65mm
Installation
DIN 35 mm
Clock
Error ≤0.5s/d
Starting current

0.04A

Display

8 digits LCD display U,I,P,Q,PF,kWh




指示

display



Parameter

Dimension


dimension

wiring


Parameter


Voltage Reference voltage AC220V
Reference frequency 50Hz
Consumption <10VA(Single phase)
Current Maximum current 10(80)A
Starting current 0.004Ib
Consumption <4VA(Maximum current)
Measurement performance Accuracy of active kWh Class 1
Measuring range 0~99999999kWh
Clock accuracy error≤0.5s/d
Standards compliant
IEC62053-21:2003
Pulse Pulse width 80±20ms
Pulse constant 1000imp/kWh
Communication Interface
RS485(A+,B-)
Medium Shielded twisted pair(STP)
Protocol Modbus-RTU,DL/T645-97,DL/T645-07
Outline L*W*H(mm) 36*90*65
Environment Temperature

Operating:-25~55℃

Storage:-40~70℃

Humidity ≤95%(No condensation)
Altitude <2000m






Typical connection

系统图
