Cloud Platform for Power IOT

Views: 215     Author: Elena     Publish Time: 2020-12-10      Origin: Site

Application

Substation,building,telecommunication base station,industrial energy consumption,intelligent lighthouse,operation and maintenance of power.


Structure

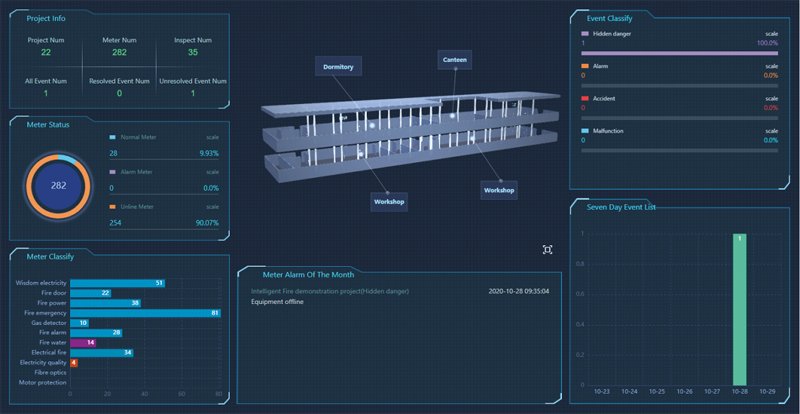

Main Function


1.Alarm Analysis

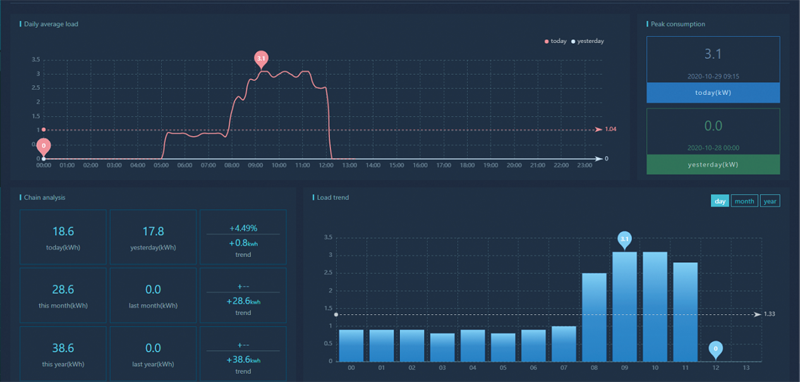

2.Energy situation

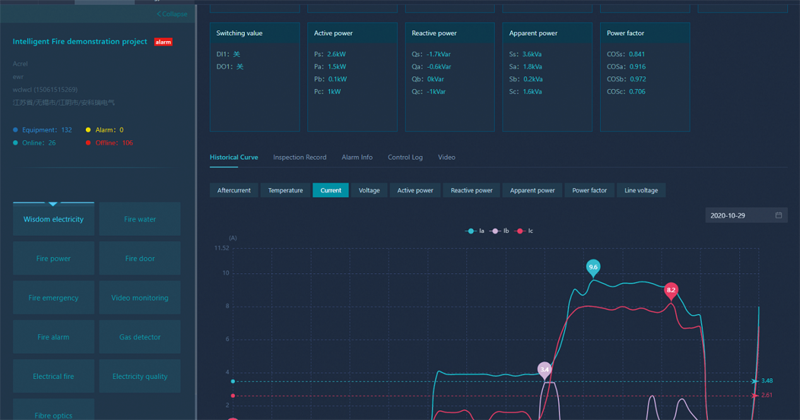

3.Details of electrical parameters

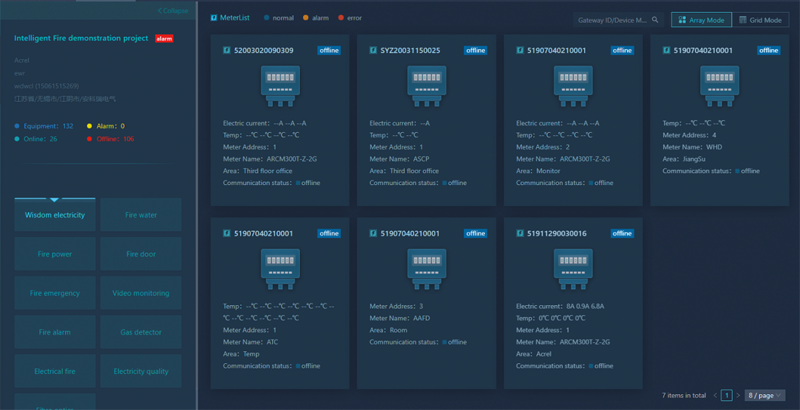

4.Equipment status



Product Selection

1.Gateway

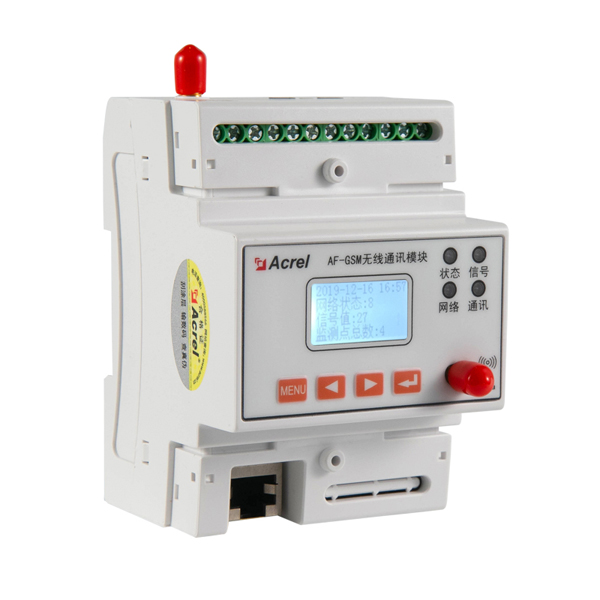

IMG_0533 (2)

1.AF-GSM500-4G

·Meter reading by LoRa or RS485

·Uplink Communication:4G or Ethernet

·Protocol: Modbus-TCP,MQTT,etc,protocol can be customized

·Support breakpoint transmission,local data storage,local display and button setting.

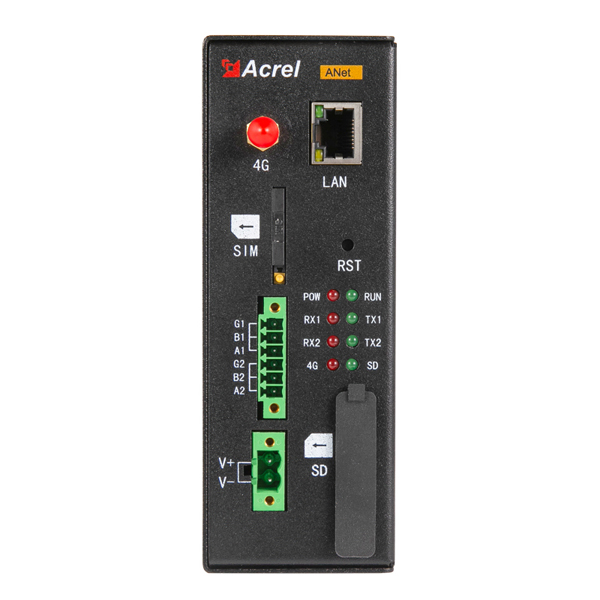

IMG_0426

2.Anet-1E2S-4G

·Downlink:2* RS485

·Uplink:4G


Read more

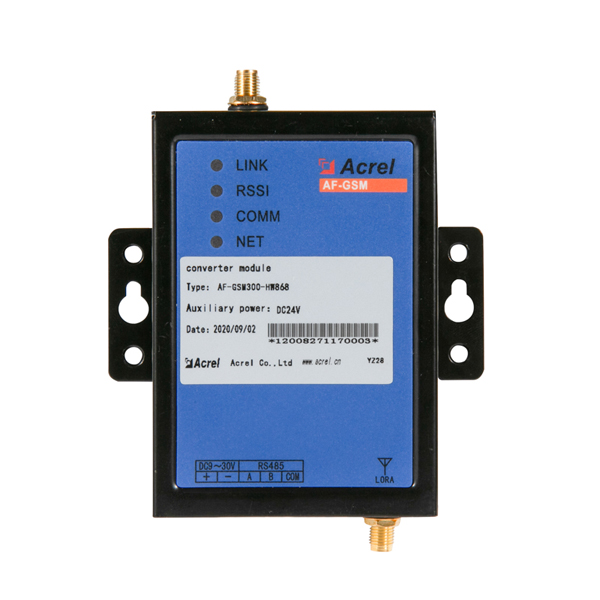

IMG_7827

3.AF-GSM300-HW868

·Downlink:LoRa or RS485

·It is used with AEW100-HW868

·Uplink:4G

·Protocol:MQTT


Read more

data acquisition module

4.AWT100

·Downlink:RS485

·Uplink:2G/ 4G/ WiFi/ NB-IOT/ LoRa/ LoRaWAN/ LoRaWAN868/ LoRaWAN923/ Ethernet/ GPS/ Profibus-DP


Read more



2.IOT meter

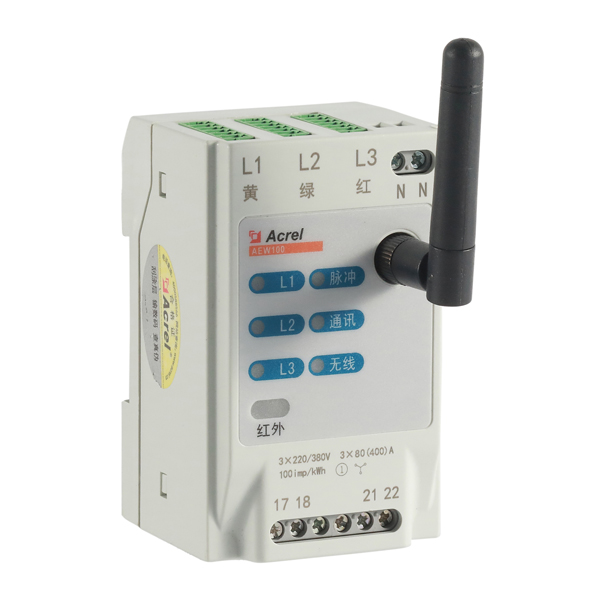

HG9A9475

1.AEW100

·Measurement:3 phase voltage,current,power,power factor ,etc.

·2-31st individual  harmonic and THD measurement

·Extreme records of voltage,current and power in this month and last 3 months

·Max demand and historical MD of last 12 months

·SOE

·Communication:RS485 or LoRa


Read more

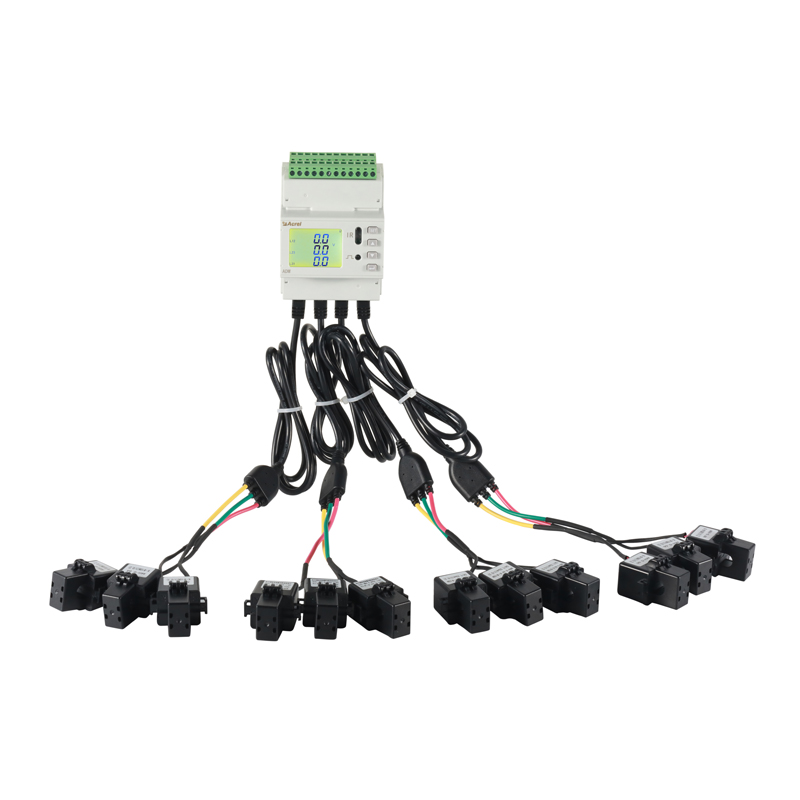

multi channel energy meter

2.ADW210

·Measurement: 4 circuits 3 phase voltage,current,power,power factor ,etc.

·Max demand

·Communication:RS485 or LoRa


Read more

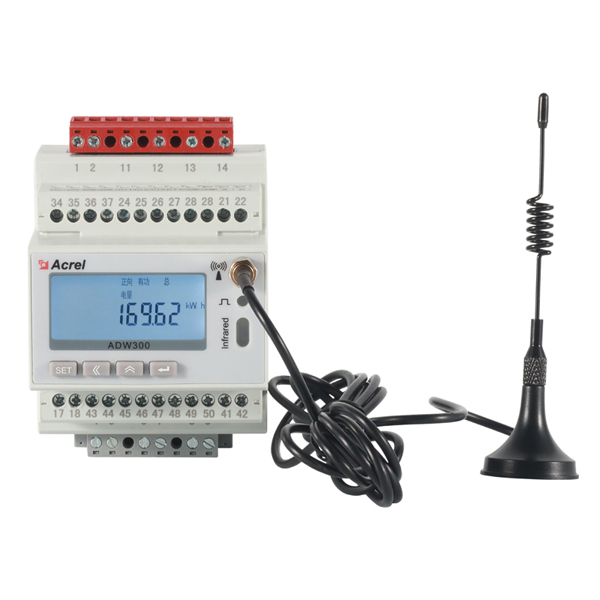

HG9A5272

3.ADW300

·Measurement:3 Phase voltage,current,power,power factor,etc.

·Accuracy:1

·Max demand

·Communication:RS485,LoRa,4G,NB or 2G


Read more

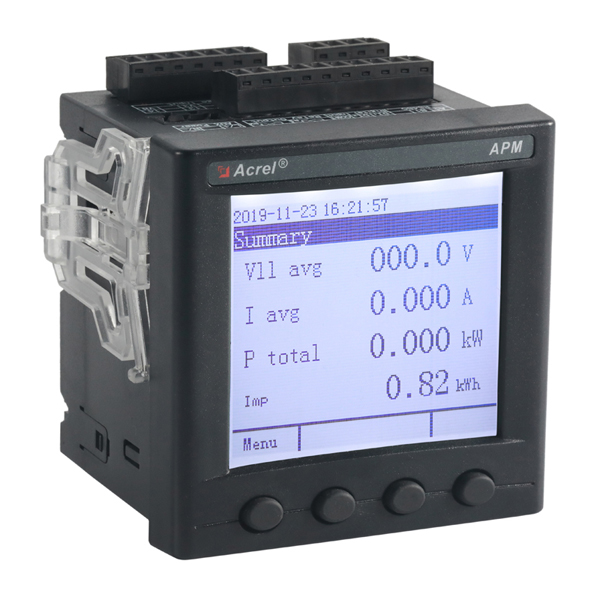

HG9A5386

4.APM830

·Installation:panel mounted

·Voltage:AC 100V、110V、400V、690V;Current:AC 1A, 5A

·Measurement:voltage,current,power,energy and other parameters.

·Communication:RS485 Mobus RTU

·Accuracy:0.2S


Read more

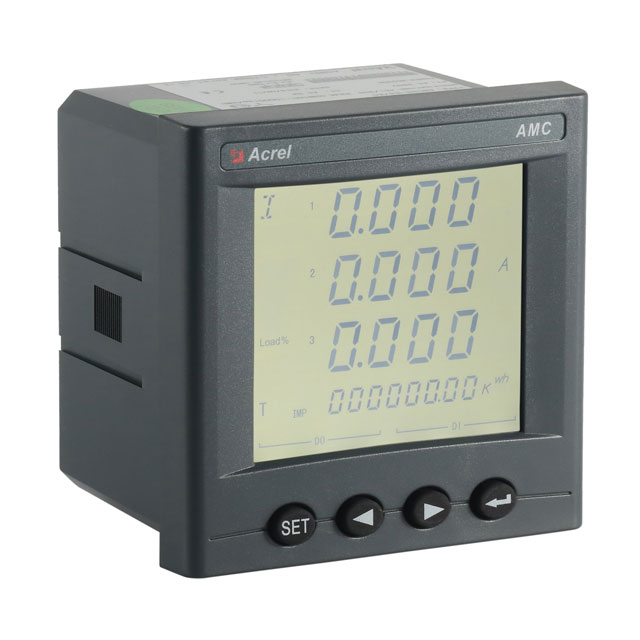

HG9A9446

5.AMC96L-E4/KC AC single circuit energy meter

·Installation:panel mounted

·Circuit 3 phase input 220V/5A 50/60HZ

·Measurement:voltage,current,power,energy and other parameters.

·Communication:RS485 Mobus RTU

·Accuracy:0.5


Read more


ADL10-E

6.ADL10-E

·Din rail mounted;

·Single-phase 60A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy;

·RS485 communication (Modbus protocol)


Read More



HG9A9449

7.ADL100-E Single Phase AC Energy Meter

·Din rail mounted;

·Single-phase 60A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More


IMG_9852

8.ADL200 Single Phase AC Energy Meter

·Din rail mounted;

·Single-phase 80A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More

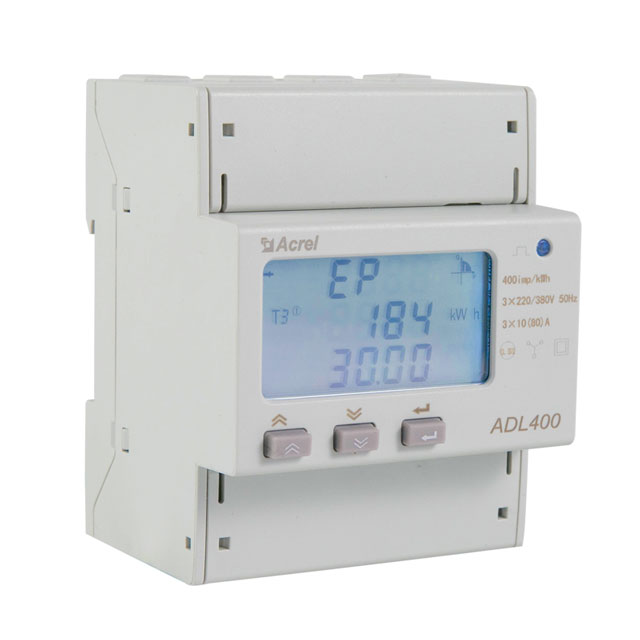

three phase energy meter

9.ADL400 Three Phase AC Energy Meter

·Din rail mounted;

·Three-phase 80A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More


HG9A9448

10.ADL3000-E Three Phase AC Energy Meter

·Din rail mounted;

·Three-phase 80A, 50/60Hz input;

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)

·Energy pulse output;

·Optional multi tariff.


Read More


multi circuit energy meter (1)

11.ADF400L Multi Channel Three Phase AC Energy Meter

·Din rail mounted;

·12 three-phase or 36 single-phase direct access measurement

·12 three-phase mutual inductor(current transformer) access measurement

·Measurement of electrical parameters such as voltage, current, power, energy,etc;

·RS485 communication (Modbus protocol)


Read More



3.Current transformer

组合图

1.AKH-0.66/K Split core open CT

·Current ratio:up to 5000/5A

·Accuracy:0.5,0.2


For cable:Read more

For busbar:Read more

500A

2.AKH-0.66I Closed loop CT

·Current ratio:up to 6300/5A

·Accuracy:0.2,0.5



Photos on site
