3 phase 4 wire rail type energy meter

ADL3000-E three phase electric meter is designed for three phase energy measurement on low voltage system and EV charging pile. The meter meet the related technical requirements of electronic meter in the IEC62053-21、IEC62053-22 standards.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ADL3000-E

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE


ADL energy meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation.


ADL3000-E three phase electric meter is designed for three phase energy measurement on low voltage system and EV charging pile. It features the high precision, small size and easy installation.The meter meet the related technical requirements of electronic meter in the IEC62053-21、IEC62053-22 standards.

Product Description

示意显示

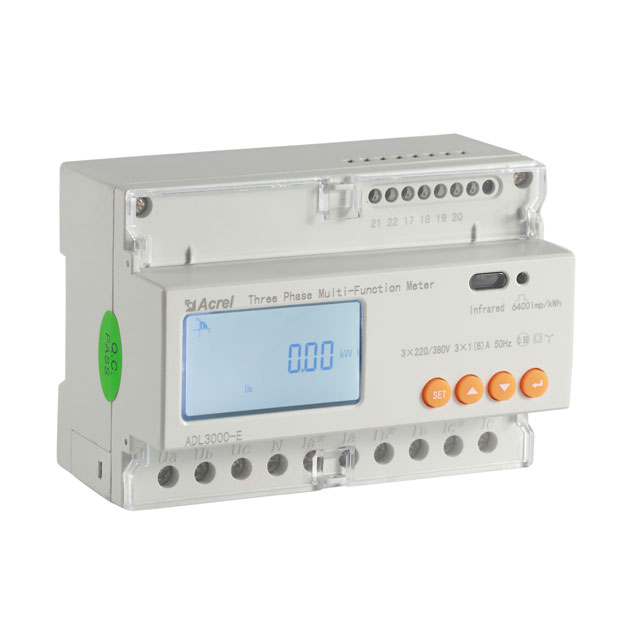

ADL3000-E three phase multi-function energy meter

● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

●  U、I、P、Q、S、PF、kWh、kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st  Harmonics

● Alarm

● kWh Class 0.5S,kVarh Class 2

Communication

RS485(Modbus-RTU)

Display

8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh)

Rated U and I

AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; 3×1(6)A, 3×10(80)A




Parameter

Parameter


Voltage Reference voltage

3*57.7/100V,3*220/380V,

3*1000V,3*380V

Reference frequency 50Hz
Consumption <10VA(Single phase)
Current Maximum current 6A,80A
Starting current

Direct connect:0.004Ib

Connect via:0.001In

Consumption <1VA(Single phase rated current)
Measurement performance Accuracy of active kWh Class 0.5S
Standards compliant
IEC62053-21:2003
Pulse Pulse width 80+20ms
Pulse constant

400imp/kWh

6400imp/kWh

Communication Interface
RS485
Protocol Modbus-RTU
Outline L*W*H(mm) 127*88*70
Environment Temperature

Operating:-25~55℃

Storage:-40~70℃

Humidity ≤95%(No condensation)
Altitude <2000m
