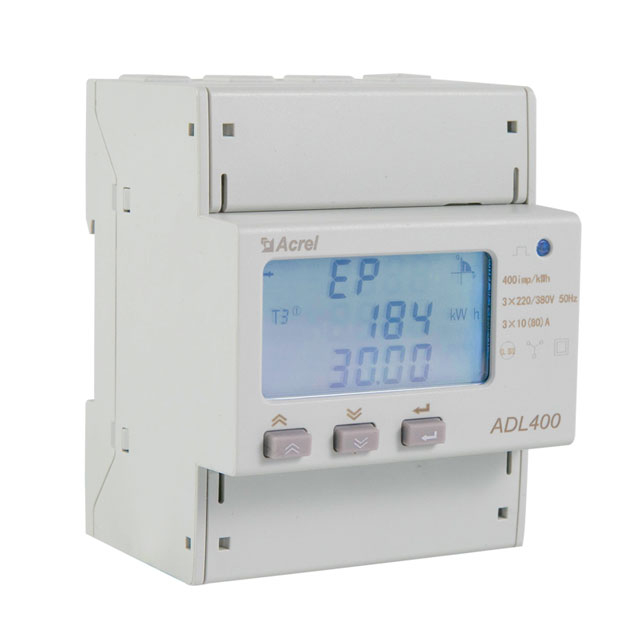

ADL400 Three phase rail mounted energy meter

● AC 3×220/380V，3×380V，3×57.7/100V，3×100V
● 3×1（6）A,3×10（100）A

●RS485(MODBUS-RTU)
●Set parameters
●LCD display

●kWh Class 0.5
●DIN 35 mm


Availability:



Inquire Add to Basket

Model:
ADL400
Brand:
ACREL

Download

Manual of ADL400：Manual of three phase energy meterADL400.pdf

CE of ADL400：three phase energy meter ADL400 CE-EMC+LVD.pdf

MID of ADL400：three phase energy meter ADL400 CE-MID.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Certificate：CE/MID

ADL400 three phase electronic meter is mainly used to measure three phase active energy in low-voltage networks. It can also measure voltage, current, power and other electricity parameters. It is equipped with multi tariff, pulse output,standard RS485 communication function, which is convenient for users to monitor, collect and manage electricity consumption.

It can be flexibly installed in the distribution box to realize the sub-item electric energy measurement, statistics and analysis of different areas and different loads.The meter meet the related technical requirements of electronic meter in the IEC62053-21、 IEC62053-22 standards.

Product Description

Accuracy

kWh: Class0.5s

Frequency

45~65Hz

Power Supply(self supply)

154~264Vac

Pulse output

kWh

Input consumption:

<1VA

Dimension(L*W*H)

90*72*65mm

Installation

DIN 35 mm

Clock

Error ≤0.5s/d

Starting current

0.01A/0.001A

LCD display

Wiring

connect via CT

Connect via CT

connect directly

Connect directly

Parameter

Dimension

dimension

Parameter

Specification	3 phase 3 wires, 3 phase 4 wires
Voltage	Reference voltage	3×100V、 3×380V、3×57.7/100V、 3×220/380V
	Consumption	<10VA(Single phase)
	Accuracy class	Error±0.2%
Current	Input current	3×1(6)A， 3×10(80)A
	Consumption	<1VA(Single phase rated current)
	Accuracy class	Error±0.2%
Power	Active, reactive, apparent power, error±0.5℅
Frequency	45～65Hz（Error±0.2%）
Measuring performance	Energy	Active energy(Accuracy class:0.5, 1) reactive energy(Accuracy class 2)
Measuring performance	Clock accuracy	error≤0.5s/d
Digit signal	Energy pulse output	1 active photocoupler output
Pulse	Pulse Width	80±20ms
Pulse	Pulse constant	1000impkWh,10000imp/kWh(Correspond with the basic current)
Communication	Interface and communication	RS485：Modbus RTU
	Range of communication address	Modbus RTU:1~ 254
	Baud rate	1200bps~19200bps
Outline	LWH（mm）	907265
Environment	Temperature	Operating：-25~55℃ Storage：-40~70℃
	Humidity	≤95%（No condensation）
	Altitude	＜2000m
