AMC96L-E4/KC Three phase AC energy meter
You are here: Home » Products » Energy Management » Multifunction Power Meter » AMC96L-E4/KC Three phase AC energy meter

AMC96L-E4/KC Three phase AC energy meter

● True RMS Measurements

● THD with 2-31st Harmonics

● Max/Min Log with Timestamp

● Internal Optional 4DI&2DO or 2DI&2DO&2AO

● Standard one Energy Pulse Output

Availability:
  • AMC96L-E4/KC
  • ACREL

Download

Manual of AMC96L-E4/KC:Manual of AMC(II)-E4KC Power meter.pdf

CE of AMC96L-E4/KC:CE of AMC96L-E4KC.pdf

Product Description

Overview
Brand:Acrel Place of Origin:China Standards:CE、IEC

AMC series intelligent power collection and monitoring device is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.

It integrates measurement of power parameters (such as sigle phase or three phase current, voltage, and active power). Power, reactive power, apparent power, frequency, power factor and power monitoring and assessment management. At the same time, it has a variety of peripheral interface functions for users to choose: with RS485 communication interface, MODBUS-RTU protocol can meet the needs of communication network management; 4-20mA analog output can correspond to measured electrical parameters, meet DCS such interface requirements; with switch input and relay output can realize the function of "remote signal" and "remote control" of circuit breaker switch.High-brightness LED/LCD display interface,parameter setting and control through buttons, ideal for real-time power monitoring systems. Can directly replace conventional power transmitters and measuring instruments. As an intelligent, digital front-end asquisition component, the instrument has been widely used in various control system, SCADA systems and energy management systems.


Product Description

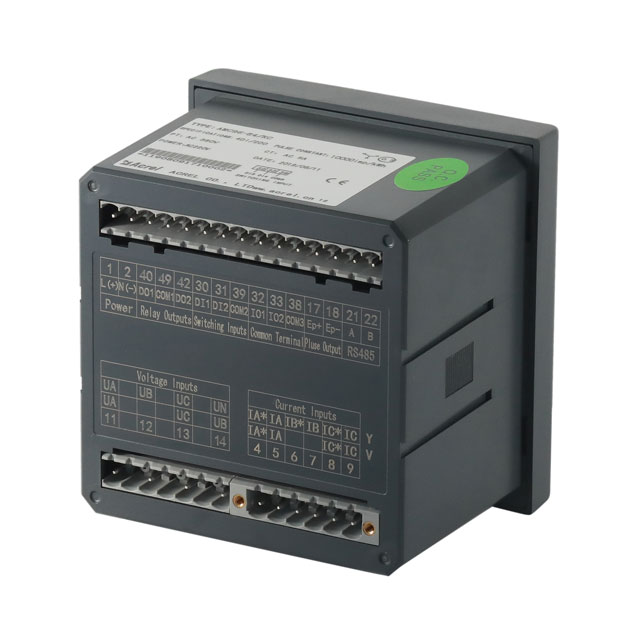

panel mounted energy meter

Accuracy

Active energy: Class 0.5

Frequency

Range: 45-65Hz

Auxiliary power supply

AC/DC 85~265V

Pulse output

1600-160000imp/kWh

Consumption

Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA


panel mounted energy meter
Installation
Panel mounted
Dimension(L*W*H)
Panel size (L×W): 96*96mm
Cutout (L×W): 92*92mm
Housing (L×W×H): 90*90*77.8mm
Relay
DC 30V/3A AC 220V/3A
Consumption
0.2%

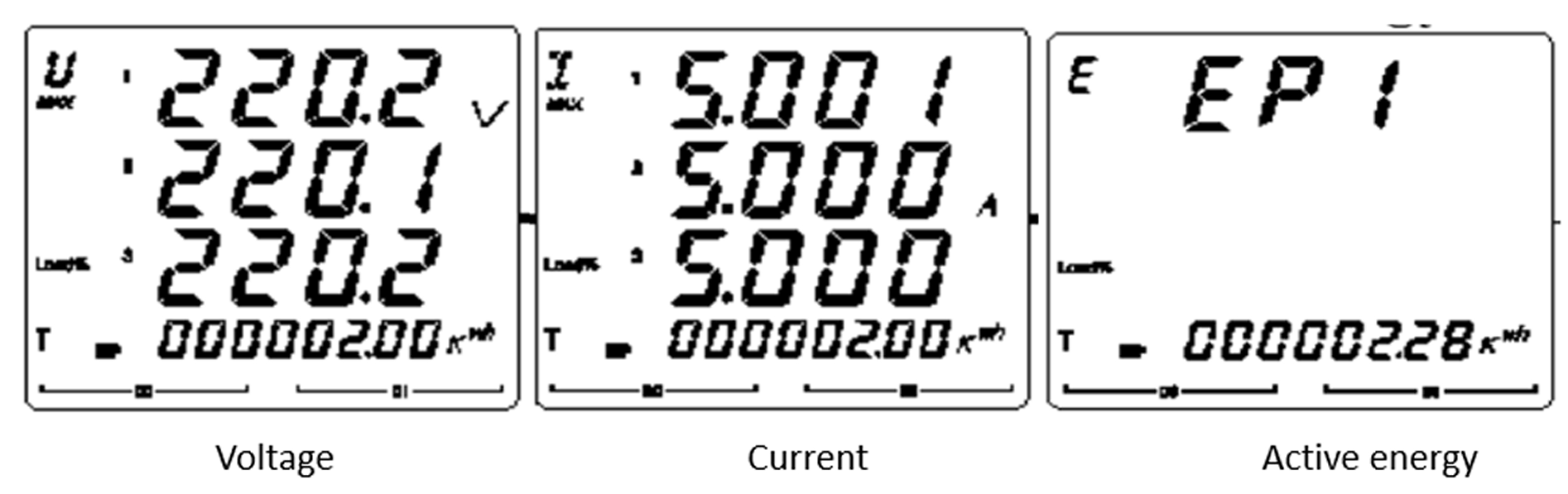

LCD display


amc96

amc96-1

Parameter

Dimension


Shape

Panel

Housing Cut out

Unit:mm

Width*Height Width*Height*Depth Width*Height
48 Square 48*48 44*44*93 45*45
72 Square 75*75 66*66*94.3 67*67
96 Square 96*96 90*90*77.8 92*92

cutout


installation

When install the meter, loosen the locking screw of the fixing bracket, remove the fixing bracket, insert the instrument into the mounting hole, install the fixing bracket and tighten the screw to make the instrument be firmly installed without loosening.Shape for clamp reed squeeze installation.

Parameter


Input Connection 3P3W,3P4W

Frequency

45-65Hz

Voltage

Rating:AC100V、400V

Overload:1.2 fold rating,2 fold rating for 1second
Power consumption:<0.5VA

Current

Rating:AC1A、5V

Overload:1.2 fold rating,2 fold rating for 1second

Power consumption:<0.5VA

Output

Electric energy

Output mode:open-collector photo-coupler pulse

Pulse constant:10000,40000,160000imp/kWh

Communication

RS485,Modbus-RTU,Band:1200~38400

Power supply

Voltage range

AC/DC85~265V

Power consumption

≤10vA


Typical connection

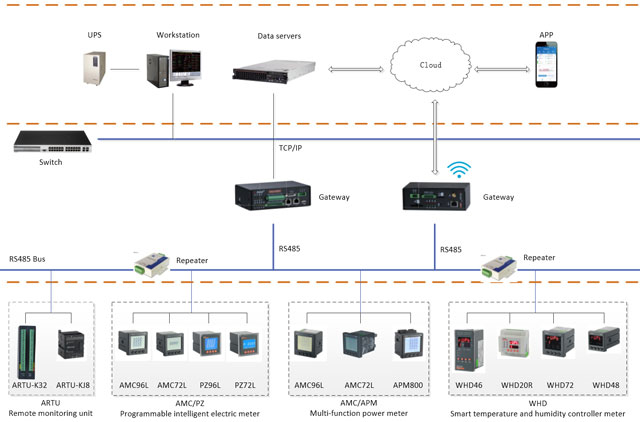

energy management systemstructure
