IOT smart gateway 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP

● Support data acquisition of the serial port MODBUS RTU protocol.
● Support for data acquisition of up to 30 MODBUS RTU devices.
● Support the acquisition of 5 register address fields for each MODBUS device.
Color:
Please select
Size:
Please select
  • AWT100
  • ACREL

Download

Manual of AWT100


Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application:IOT system,RTU,PLC

AWT100 Smart Gateway

The AWT100 data conversion module is a new data conversion DTU launched by Acrel.

The communication data conversion includes 2G, 4G, NB, LoRa, LoRaWAN, GPS, WiFi, CE, DP and other communication methods.

The downlink interface provides a standard RS485 data interface.

It can be easily connected to power meters, RTUs, PLCs, industrial computers and other equipment.



Product Description



data acquisition module

Auxiliary power supply

DC24V or AC/DC220V


Serial port type

RS485


Installation

DIN 35mm


Baud rate

4800bps、9600bps、19200bps、38400bps


Operating temperature

-10℃~55℃



● Support the data collection of the serial port MODBUS RTU protocol, and communicate with the Ankerui server through the Ankerui platform protocol.
● Support for data acquisition of up to 30 MODBUS RTU devices.
● Support the collection of 5 register address domains for each MODBUS device, and the address range of each register does not exceed 64.
● Support to preset alarm address and alarm value to trigger alarm for each MODBUS address range. There are currently at most 5 alarm addresses in each address domain.
● Support server MODBUS or LORA transparent transmission communication.

● Support fixed IP and dynamic domain name resolution methods to connect to the data center.

● Support transparent transmission protocol, common mode (active round copy, regular report), MQTT protocol, smart power wireless protocol, prepaid wireless protocol, etc., and can be customized and developed.




Display

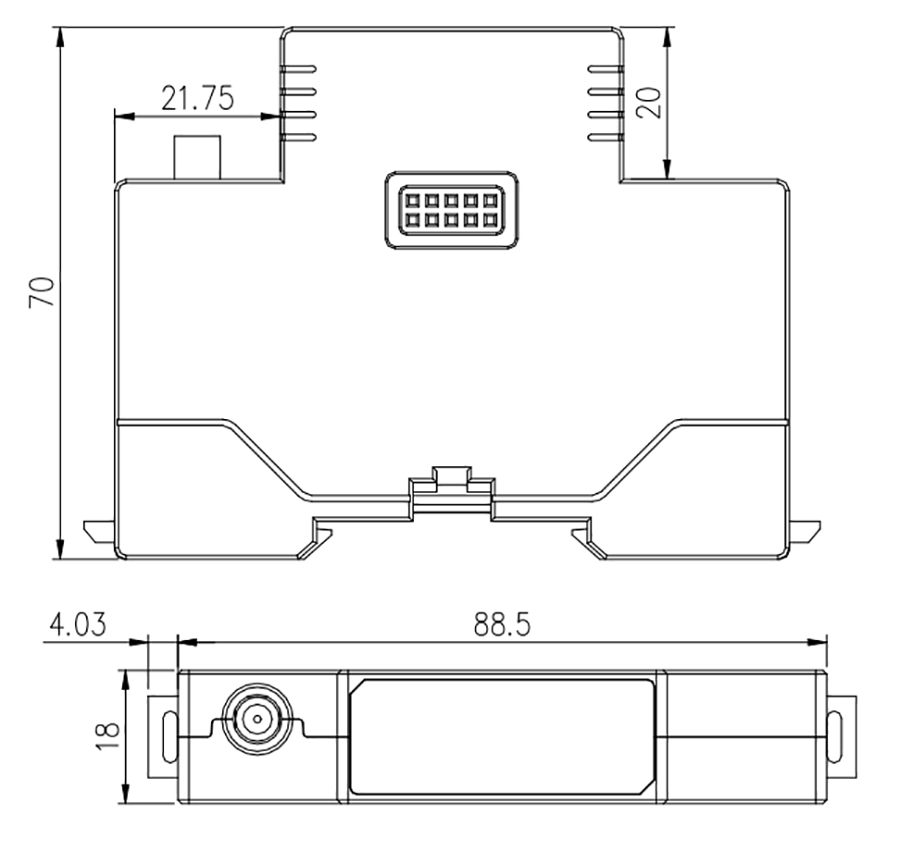

dimension


AWT100 smart gateway






Parameter

Parameter



AWT100-4G AWT100-NB AWT100-2G

AWT100-LoRa

AWT100-LW

Working frequency band

LTE-FDD B1 B3 B5 B8

LTE-TDD B34 B38 B39 B40 B41

CDMA B1 B5 B8

GSM 900/1800M

H-FDD B1 B3 B5 B20

GSM 850

EGSM 900

DCS 1800

PCS 1900

LoRa 460~510MHz
Transmission rate

LTE-FDD

maximum download rate is 150Mbps

maximum download rate is 50Mbps

LTE-TDD

maximum download rate is 130Mbps

maximum download rate is 35Mbps

CDMA

maximum download rate is 3.1Mbps

maximum download rate is 1.8Mbps

GSM

maximum download rate is 107Kbps

maximum download rate is 85.6Kbps

maximum download rate is 25.2Kbps

maximum download rate is 15.62Kbps

GPRS

maximum download rate is 85.6Kbps

maximum download rate is 85.6Kbps

LoRa 62.5Kbps
Download RS485
Upload 4G NB-IoT 2G LoRa


AWT100-GPS AWT100-WiFi AWT100-CE AWT100-DP
working Positioning accuracy: 2.5-5m

support 2.4G

WiFi:115200bps

10/100M

Profibus address:

1~125

Download RS485
Upload GPS WiFi Ethernet Profibus


Typical connection


typical connection

typical connection LoRa
