AKH-0.66K split core current transformer for reconstruction project

● Split core
● Aperture:30*20mm,60*40mm,80*40mm,80*50mm,80*80mm,100*40mm,120*60mm,120*80mm,130*60mm,140*60mm,160*80mm,200*80mm
● Current ratio:20-75A/1A,100-5000/5(1)A
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • AKH-0.66/K

  • ACREL

Download

Manual of AKH-0.66/K:ACREL catalog of power sensor.pdf

CE of current transformer:CE(Current Transformer.pdf

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE

AKH-0.66/K series split core current transformer

Current transformer(CT) is used  to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipment.


Product Description


HG9A9453

StandardsIEC/EN61869-1, IEC/EN61869-2


Ratio:20-75A/1A,100-5000/5(1)A


Class:0.5


Aperture:30*20mm,60*40mm,80*40mm,80*50mm,

80*80mm,100*40mm,120*60mm,120*80mm,

130*60mm,140*60mm,160*80mm,200*80mm


Rated frequency: 50/60Hz


Continuous overload: 120%In


Protection level: IP30



split core CT

Security factor: FS<5


Maximum system voltage: 720V AC


Test voltage: 3kV AC(1min)


Rated short-time thermal current: Ith=40~60In


Rated dynamic current: Idyn=2.5Ith


Rated secondary current: X/5A (X/1A upon request)


Casing: Non-flammable, polycarbonate self-extinguishing ABS






Parameter

组合

尺寸图


Dimension(mm) Aperture(mm) Note
Type
W H D a e
Specification(A)
Weight(kg)
K-30*20 90 114 40 22 32 20-400 0.8-0.9
K-60*40 114 140 36 42 62 250-2000 1.0-2.0
K-80*40 122 162 40 42 82 300-3000 1.2-2.4
K-80*50 114 159 36 52 82 250-1000 1.1-1.4
K-80*80 144 159 36 82 82 250-1000 1.3-1.5
K-100*40

144

194 52 42 102 1000-5000 1.6-3.2
K-120*60 164 214 52 62 122 400-5000 1.6-3.0
K-120*80 144 199 36 82 122 500-1500 1.5-2.3
K-130*40 144 224 52 42 132 1000-4000 1.6-3.6
K-130*60 170 222 70 60 130 1000-6000 2.4-4.0
K-140*60 164 234 52 62 142 1000-5000 1.7-3.7
K-160*80 184
254 52 82 162 1000-5000 2.8-3.7
K-200*80 184 294 52 82 202 1000-5000 3.5-4.5


Installation

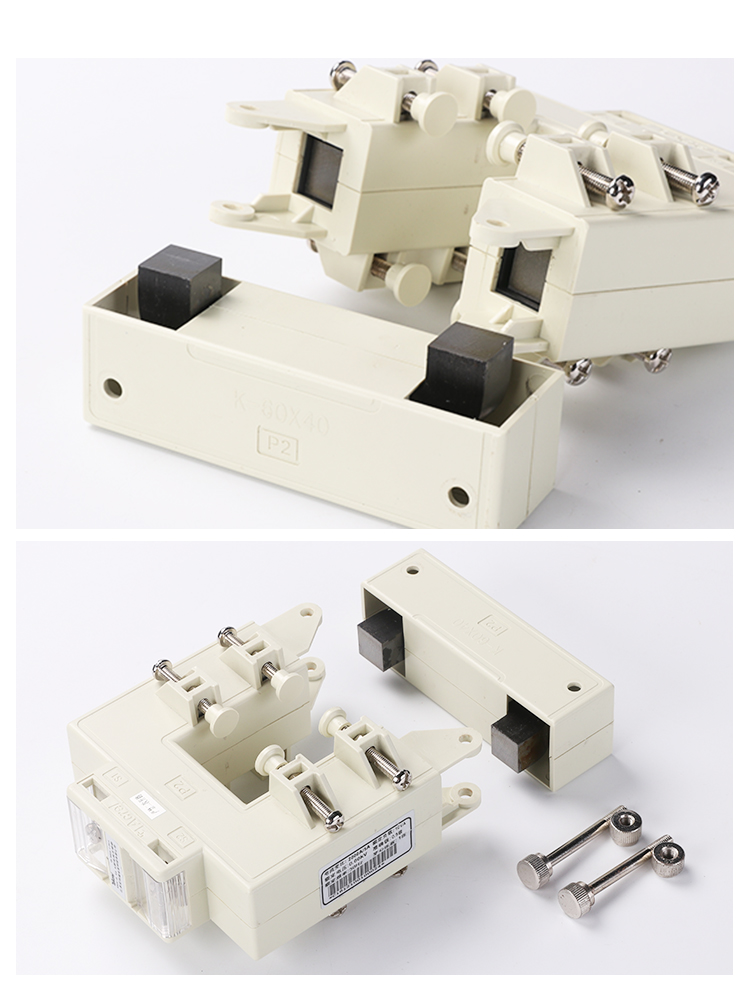

CT installationCT detail
