Multi channel current transformer 50A/50mA

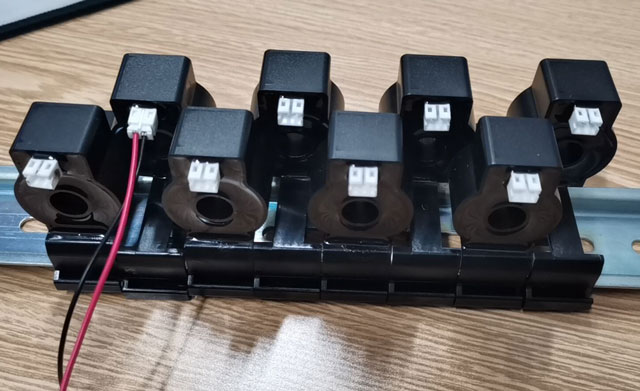

The product is of round shape, and the output is a small current signal of 50mA.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • AKH-0.66 W-9A/9B 50A/50mA

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Class:0.2

The product is of round shape, and the output is a small current signal of 50mA. It is used with the AMC16 multi-circuit power meter produced by our company.The product has the advantages of small size, high precision, strong load capacity, convenient installation, etc., and saves costs for users to realize multi-circuit monitoring.


  • Rated voltage:0.66kV

  • Input current:50A

  • Output current:50mA

  • Aperture:9mm

  • Installation:Din 35mm


Product Description

未标题-3





Parameter

Dimension


未标题-1

未标题-2


Parameter


Type Ratio(A) Class&Burden(VA/Ω) Turns Dia.(mm)
Class 0.2 Class 0.5 Class 1
W-9A 50A/50mA 10

1 φ9
W-9B 50A/50mA 10

1 φ9
