Hall Current Sensor Solution

Views:1195     Author:Elena     Publish Time: 2020-12-10      Origin:Site

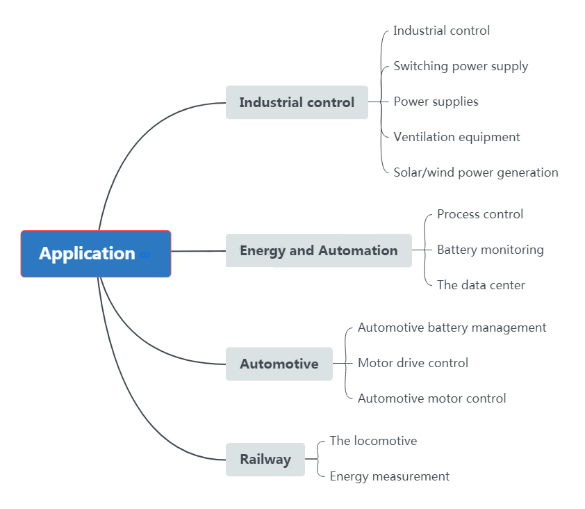

Application

Industrial control:  Switching power supply, Power supplies,Ventilation equipment,Solar/wind power generation,Military industry
Energy and Automation: Process control,Battery monitoring,Data center
Automotive: Automotive battery management,Motor drive control,Automotive motor control
Railway: The locomotive,Energy measurement


Hall effect sensor


Classification

Hall sensors are divided into three categories according to the principle: open loop Hall current sensor, closed loop Hall current sensor, Hall voltage sensor.

Type

Rated Input

Rated Output

Power Supply

Accuracy

Open loop Hall sensor

50A~20000A

5V/4~20mA

±15V/24V

class1

Closed-loop Hall sensor

10A~2000A

50mA/100mA/200mA

±15V

class0.5

Hall voltage transducer

100V~5000V

5V/50mA

15V/24V

class0.5

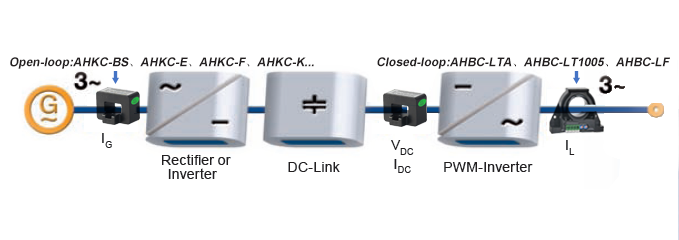

Structure

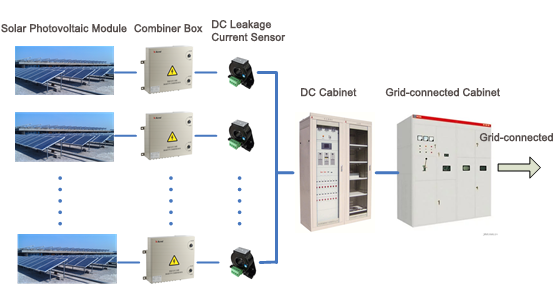

1.Photovoltaic

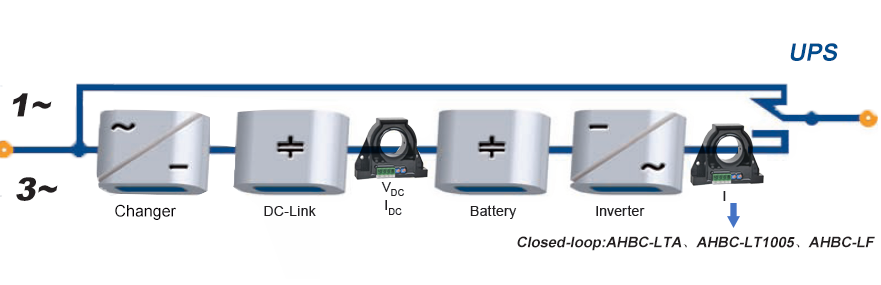

2.UPS


3.Solar and wind energy


4.Electric welding machine

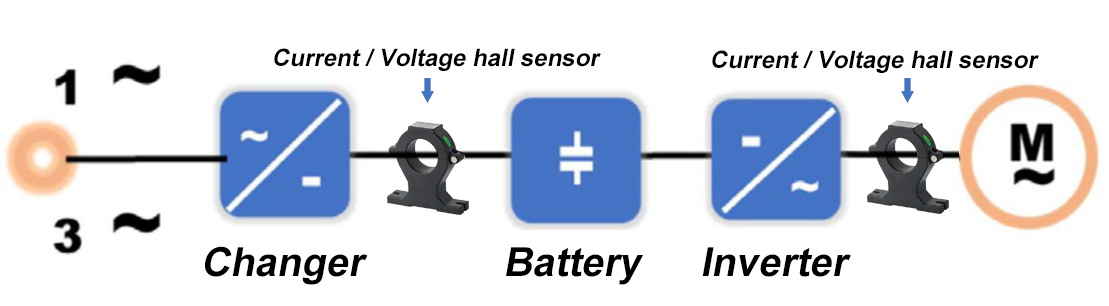

5.Motor servo system

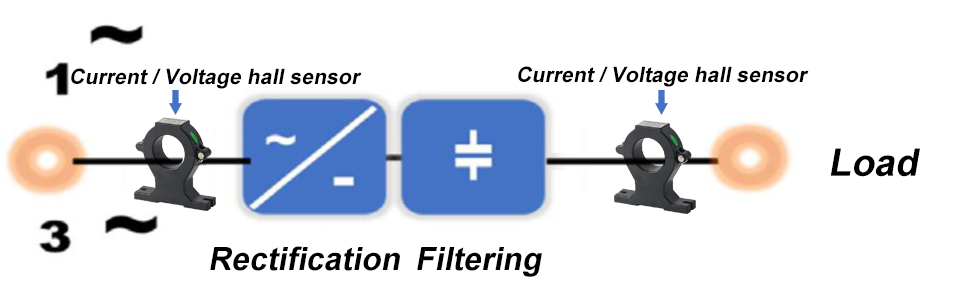

6.Rectifier



Main Functions


Type


Function

Open loop Hall sensor


1.Class1
2.Easy installation
3.Input range width:50A-20000A
4.Output: 4V/5V/20mA/4-20mA

Closed-loop Hall sensor


1.Class0.5
2.Input:10A-2000A
3.Fast response time≤1us
4.bandwidth:≤100kHz

Hall voltage transducer


1.Class0.5
2.Input:100-5000V
3.Fast response time≤200us
4.bandwidth:≤100kHz

Certificate

With EMC、CE、RoHs certificed.


Product Selection


Shape

Type

Rated

Input

Rated

Output

Measuring Aperture

Power Supply

Application

EKAA

AHKC-EKA

 0-(50-500)A

 5V/4V

 20mm

 ±15V













1. Photovoltaic DC cabinet



2.photovoltaic inverter/wind inverter



3.The data center



AHKC-EKAA

 DC 0-(50-500)A

 4-20mA

 20mm

 12V/24V

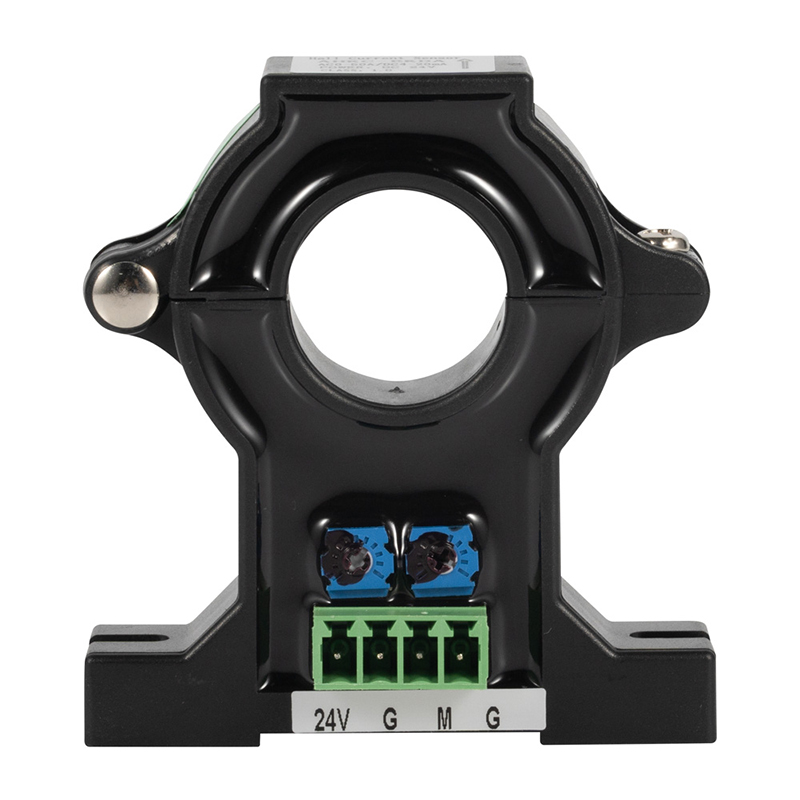

EKDA ac current transducer

AHKC-EKDA

 AC 0-(50-500)A

 4-20mA

 20mm

 12V/24V

split core hall effect current sensor AHKC-EKB 0-(200-1000)A

 5V/4V

 40mm

 ±15V

AHKC-EKBA

 DC 0-(200-1000)A

 4-20mA

 40mm

 12V/24V

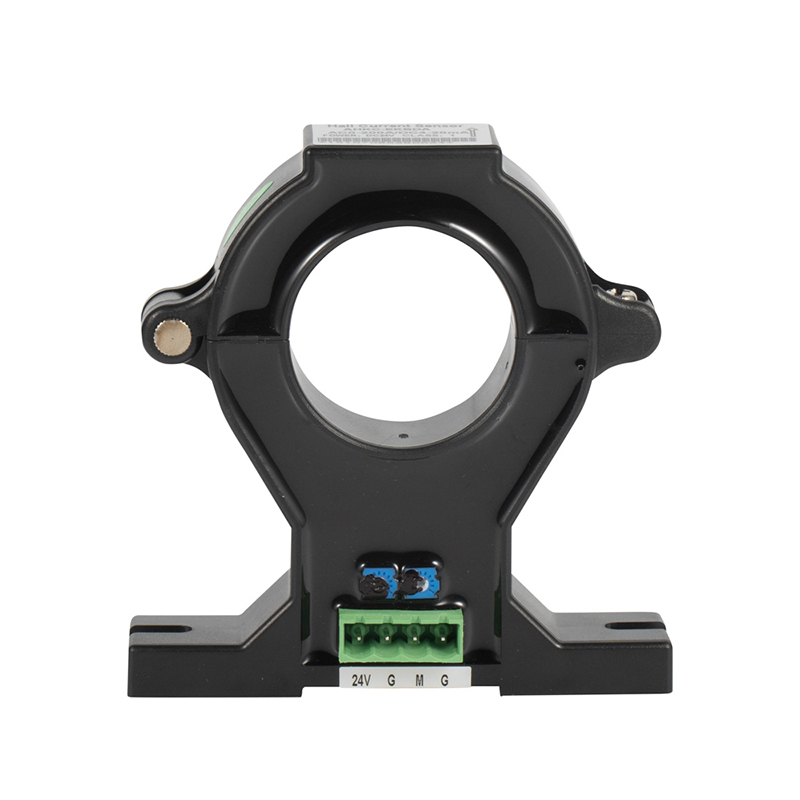

EKBDA ac hall current sensor AHKC-EKBDA

 AC 0-(200-1000)A

 4-20mA

 40mm

 12V/24V

AHKC-EKC hall current transducer AHKC-EKC 0-(500-1500)A

 5V/4V

 55mm

 ±15V

AHKC-EKCA

 DC 0-(500-1500)A

 4-20mA

 55mm

 12V/24V

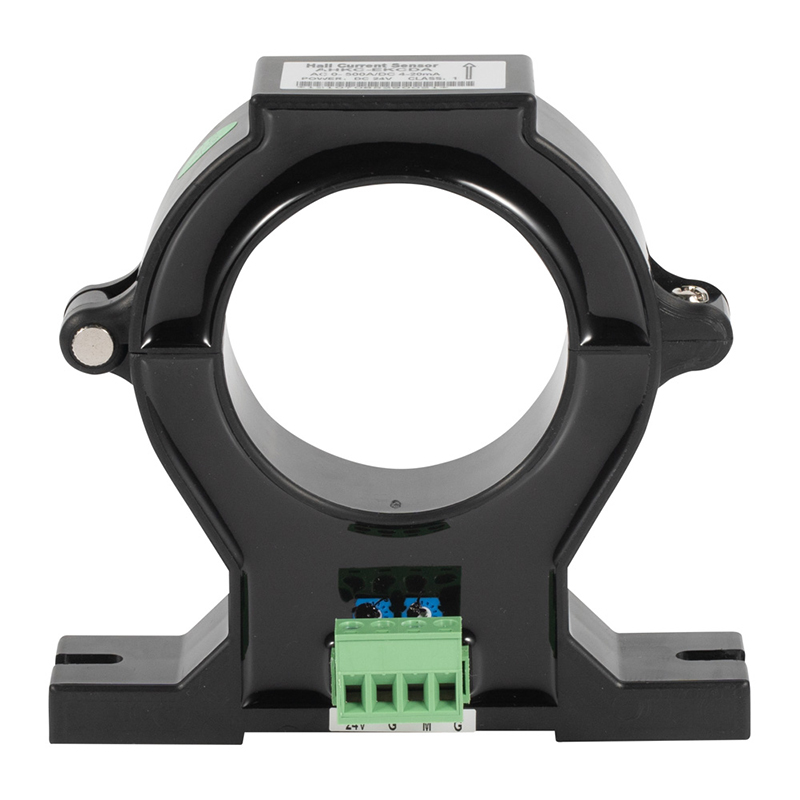

EKCDA ac hall current sensor AHKC-EKCDA

 AC 0-(500-1500)A

 4-20mA

 55mm

 12V/24V

hall effect current transducer

AHKC-BS



0-(50-500)A



5V/4V



20.5*10.5mm



±15V

hall effect current transducer 500A

AHKC-E

0-(200-500)A

 5V/4V

 20mm

 ±15V

AHKC-F hall effect current transducer

AHKC-F

0-(200-1000)A



5V/4V



43*13mm



±15V

open loop current transducer

AHKC-K

0-(400-2000)A



5V/4V



64*16mm



±15V

acrel hall effect current transducer LTA

AHLC-LTA



100A-300A



50mA/100mA



20mm



±15V

UPS




AHBC-LF

 2000A

 400mA

 /

 ±12V~±24V

1.UPS

2.photovoltaic inverter


AHBC-LT1005

 1000A

 200mA

 /

 ±12V~±24V



UPS


Please click here for more product selection of hall effect current transducer!


Photos on site

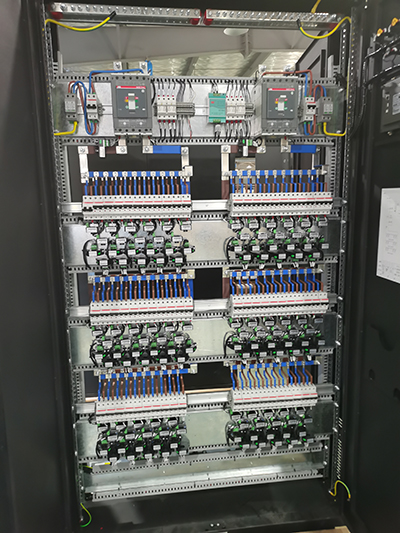

hall effect current transducer application4

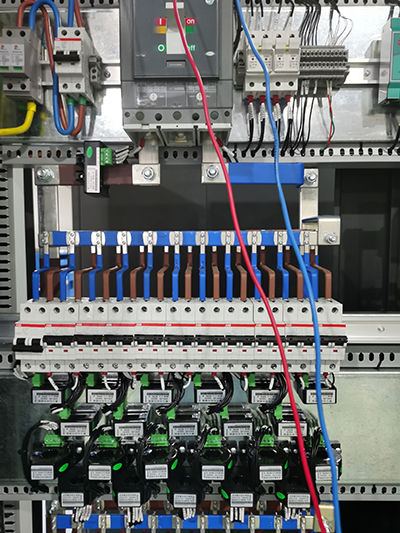

hall effect current transducer application3
