Current analog signal isolator

● Input：DC 4-20mA or 0-20mA or 0-5V or 0-10V ● Output：DC 4-20mA ● Power supply：DC24V


Availability:



Inquire Add to Basket

Model:
BM-DI/I
Brand:
ACREL

Download

Manual of BM：

CE of BM：https://jqrorwxhijiplk5q.ldycdn.com/CE+of+current+transducer-aidmiBpiKlqRliSqojiikllj.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Certificate：CE

Analogue signal transducer BM series can measure electrical parameters(e.g. current and voltage)and non-electrical parameters (e.g. temperature and resistance)rapidly and accurately and isolate and convert measured values to standard analogue output signal.

Product Description

BM-DI/I Analog Signal Isolator

A 4-wire isolator provides 2kV 3-port isolation for all direct current and voltage signals and eliminates the earth return. It can be equipped with power supply of various standards.

● Input:DC 4-20mA

● Output:4-20mA

● Power:DC24V

● Dimension（L*W*H：mm）138*24*76mm

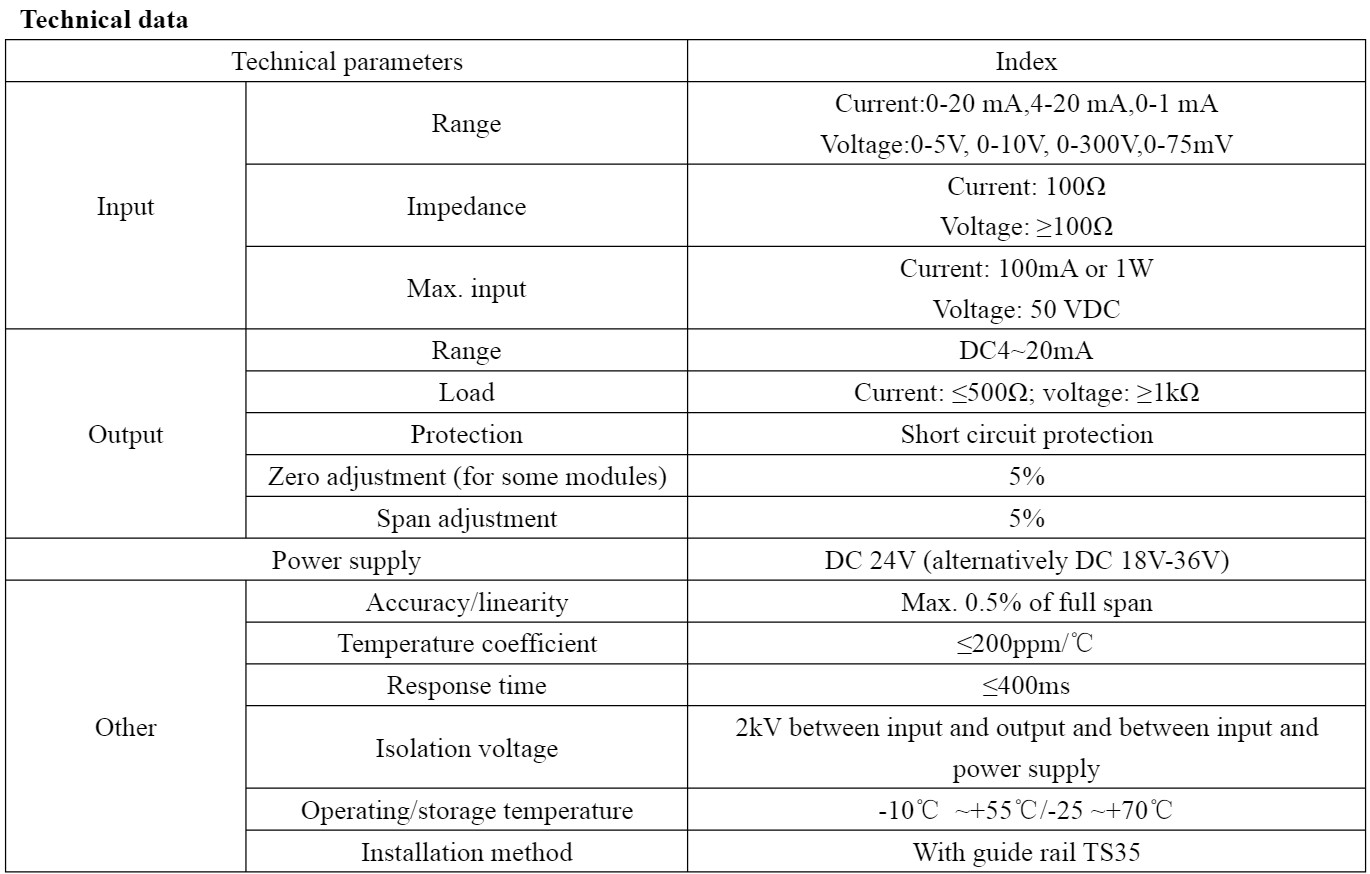

Parameter

Technical parameter
