BA20(II)-AI/I Split type AC current transducer 0-200A

● Input:AC 0-200A
● Output:DC 4-20mA or 0-20mA or 0-5V or 0-10V
● Power supply:DC24/12V
  • BA20(II)-AI/I
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE


The BA series products use the principle of electromagnetic induction to measure the AC current in the power grid in real time, and use constant current and linear compensation technology to convert it into a standard DC signal output.
24V or 12V safe voltage power supply can be widely used in the field of industrial automation.


Product Description

BA current transducer

BA20(II)-AI/I AC Current Transducer

Measurement

● Input: 0-200A

● Output: DC 4-20mA or 0-20mA or 0-5V or 0-10V

● Power supply:DC24/12V

● Aperture: 20mm

● Overload: 1.2 times of rated value

Application

● Industrial automation

● Dimension(L*W*H:mm)75*22.5*74mm





Parameter

PowerVoltageDC12V or 24V
Power consumption≤1W
Insulation resistance>100MΩ
Accuracy0.5
InputCurrentAC 0.5~600A
OverloadContinual 1.2 times of rated value, 10 times/5 seconds
Consumption≤1VA
OutputNorminal valueDC 4~20mA,or 0-20mA,0~5V,0~10V
Load resistanceCurrent output≤500Ω,Voltage output≥1kΩ
FunctionCommunicationRS485,Modbus-RTU
Response time≤400ms



Details

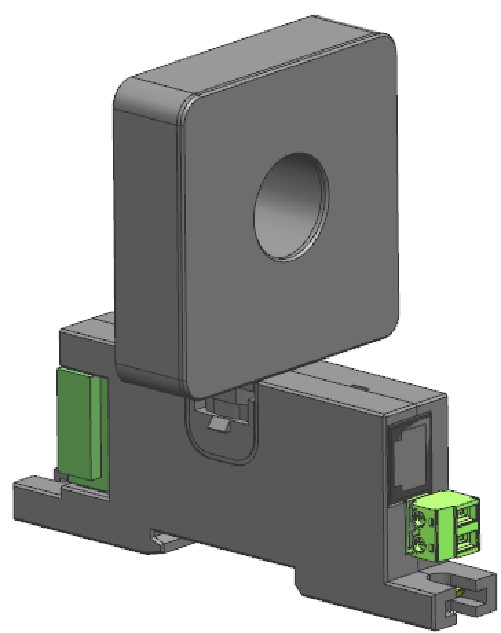

One-piece installation, in which the perforated part adopts a rotatable structure.

rotatable structure of split type current transducer1
rotatable structure of split type current transducer2

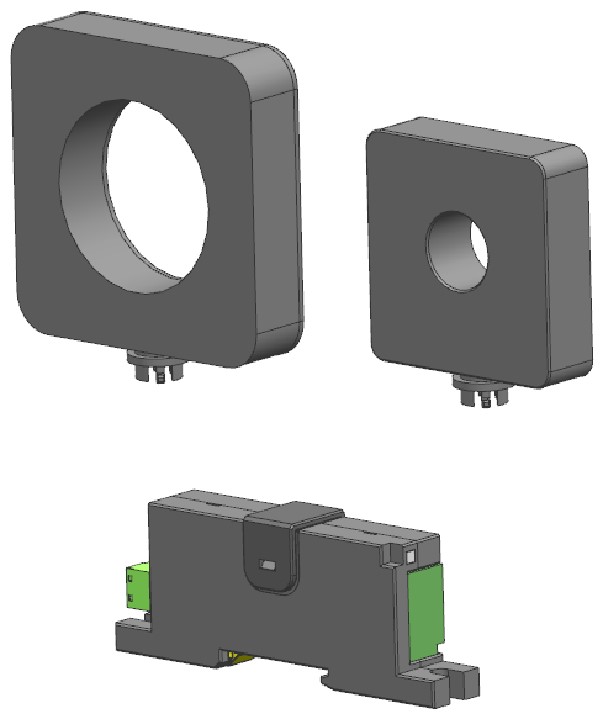

 The perforation aperture has two specifications: Φ20 and Φ50.

hole size of split type current transducer1

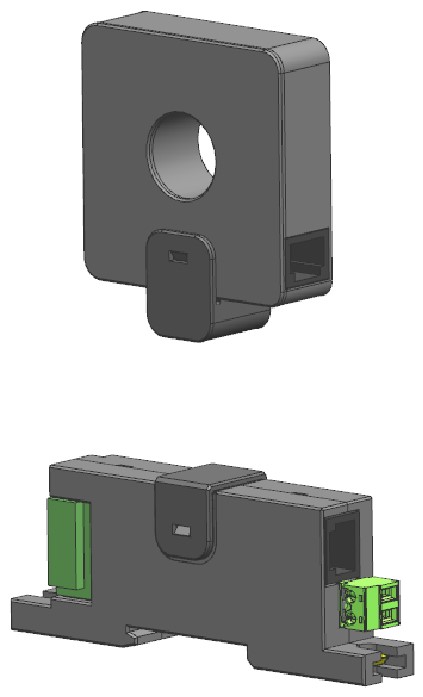

When using split connection, the transformer and the main body are connected with a network cable.

connect of split type current transducer1
connect of split type current transducer2

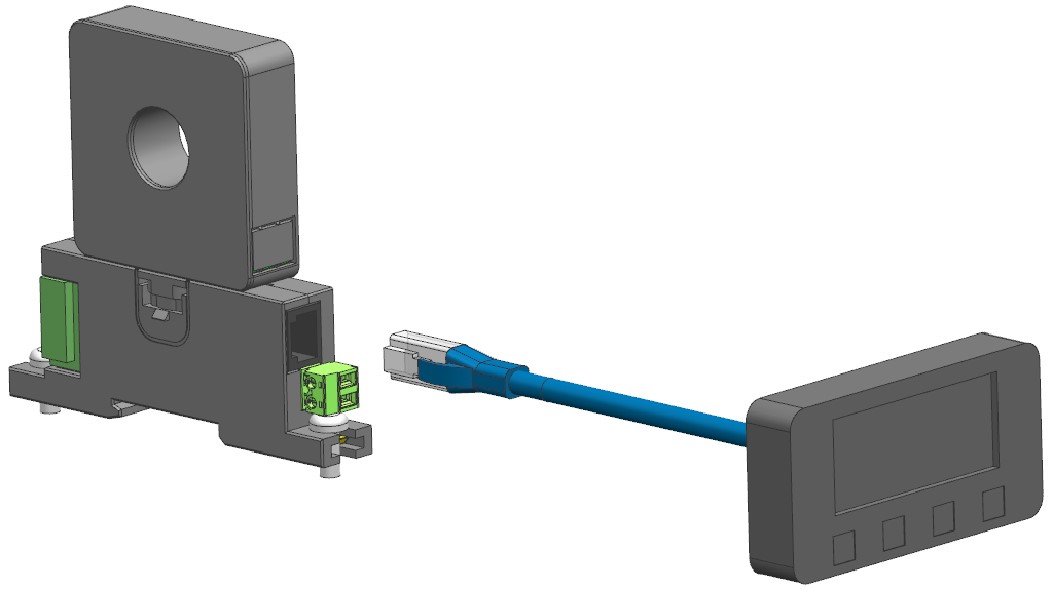

The main body can be connected to the display screen (use the existing display head as much as possible) to show the current and setting parameters.

display screen of split type current transducer1

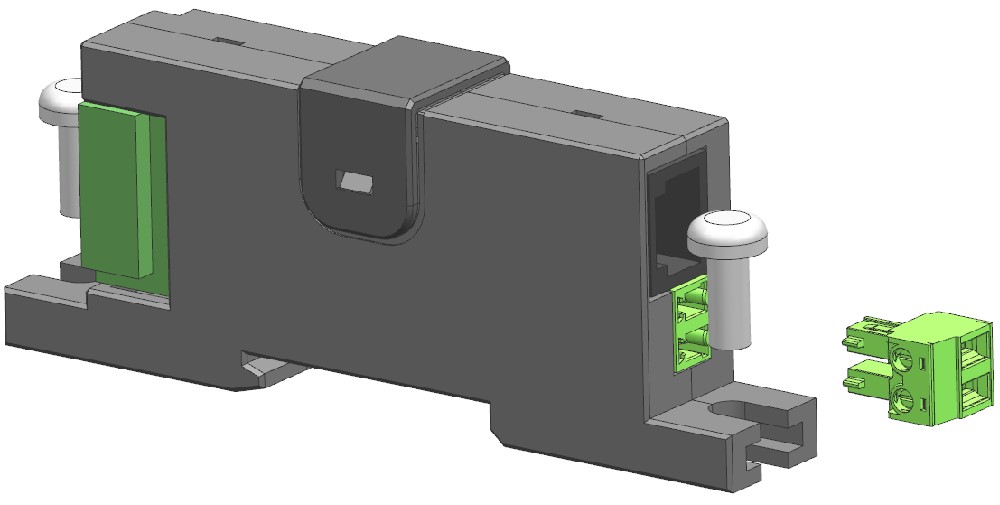

TS35 Din-Rail installation or Screw on the cabinet.

installation of split type current transducer1
installation of split type current transducer2
