Three phase power transducer

BD series isolate and convert electrical parameters (e.g. current, voltage, frequency, power and power factor) in the power grid into DC analog signal or digital signal.The product complies with GB/T13850-1998 and IEC-688.
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • BD-4E

  • ACREL

Download

Manual of BD：https://jqrorwxhijiplk5q.ldycdn.com/Manual+of+BD-aidmnBpiKlqRliSroojorlpj.pdf

CE of BD：https://rnrorwxhijiplk5q.ldycdn.com/CE+of+BA+BD+BM-aidmiBpiKlqRliSronjjqljj.pdf



Product Description

Overview


Brand:Acrel Place of Origin：China Certificate：CE


Transmit kWh value of electric power system into high linear pulse. It has RS485 communication interface, adopts Modbus protocol, and exports three-phase current, voltage, active power, reactive power, frequency, power factor, active energy reactive energy and so on. 1~4 channel analog optional, two channel electric energy pluse output.


Product Description

HG9A9370

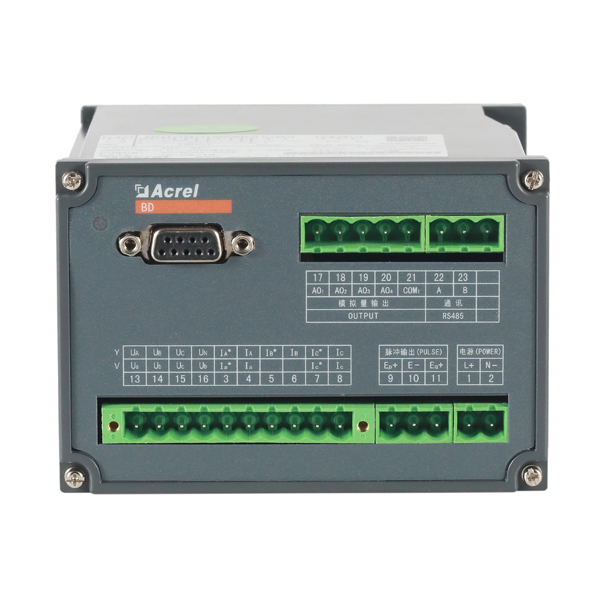

BD-4E Three Phase Transmitter


Input：

AC 0-1/5A，AC 100V，220V，380V


Overload:

1.2 times of rated value


Output：

1 channel analog output

2 channels energy impulse output


Analog Output：

DC 0-5V/0-10V/0-20mA/4-20mA


Power：

AC 85-265V，DC 100V-350V，DC 24V，DC 48V


HG9A9535

Communication

RS485 (Modbus-RTU)


Response time

≤400ms


Frequency

Range: 45-65Hz


Installation:

DIN 35mm


Dimension(L*W*H)：

110mm*128mm*75.4mm


Parameter

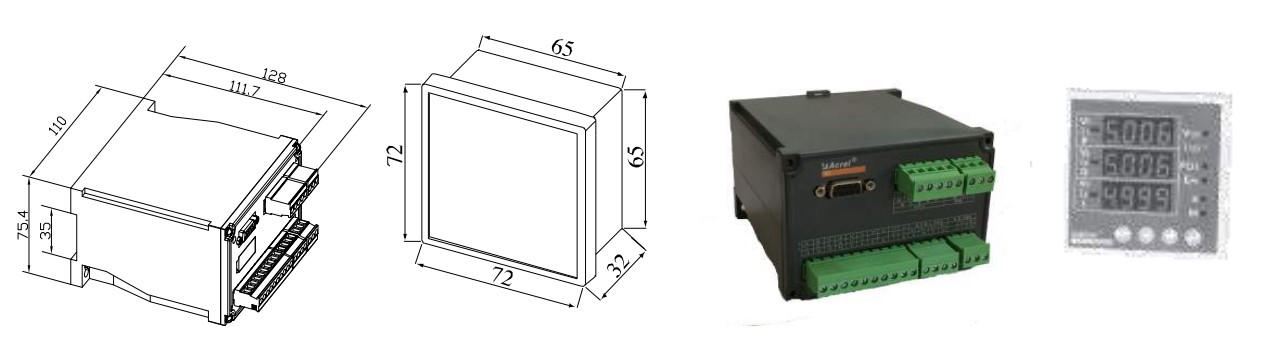

Dimension

dimension

Wiring


wiring
