Three phase current transducer

BD series isolate and convert electrical parameters (e.g. current, voltage, frequency, power and power factor) in the power grid into DC analog signal or digital signal.The product complies with GB/T13850-1998 and IEC-688.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • BD-3I3

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE


BD series power transmitter is a kind of electrical parameters such as current, voltage, frequency, power and power factor in the power grid, which are transferred to linear dc analog signal or digital signal device through isolation.


Product Description

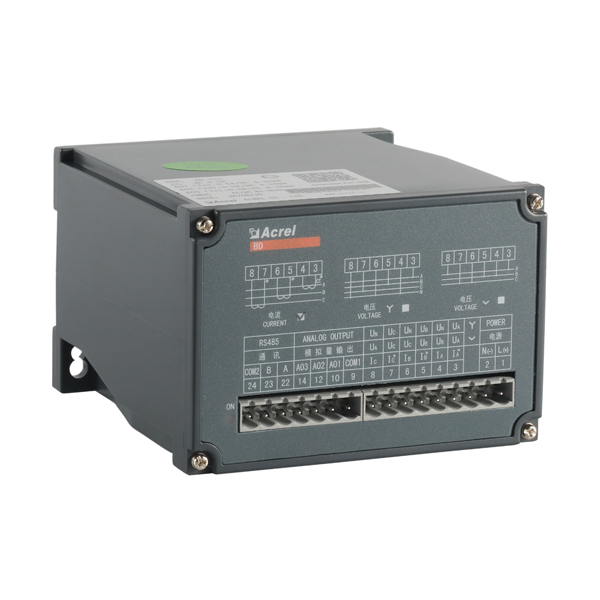

HG9A9369

BD-3I3 Three Phase Current Transmitter

Communication

RS485 (Modbus-RTU)


Input current:

AC 0-1/5A


Overload:

1.2 times of rated value


Analog Output

DC 0-5V/0-10V/0-20mA/4-20mA


Power:

AC 85-265V,DC 100V-350V,DC 24V,DC 48V




HG9A9832

Response time

≤400ms


Frequency

Range: 45-65Hz


Installation:

DIN 35mm


Dimension(L*W*H):

110mm*128mm*75.4mm




Parameter

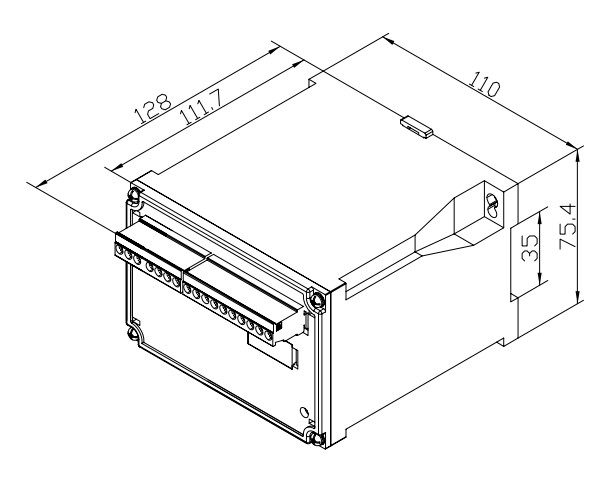

Dimension

dimension

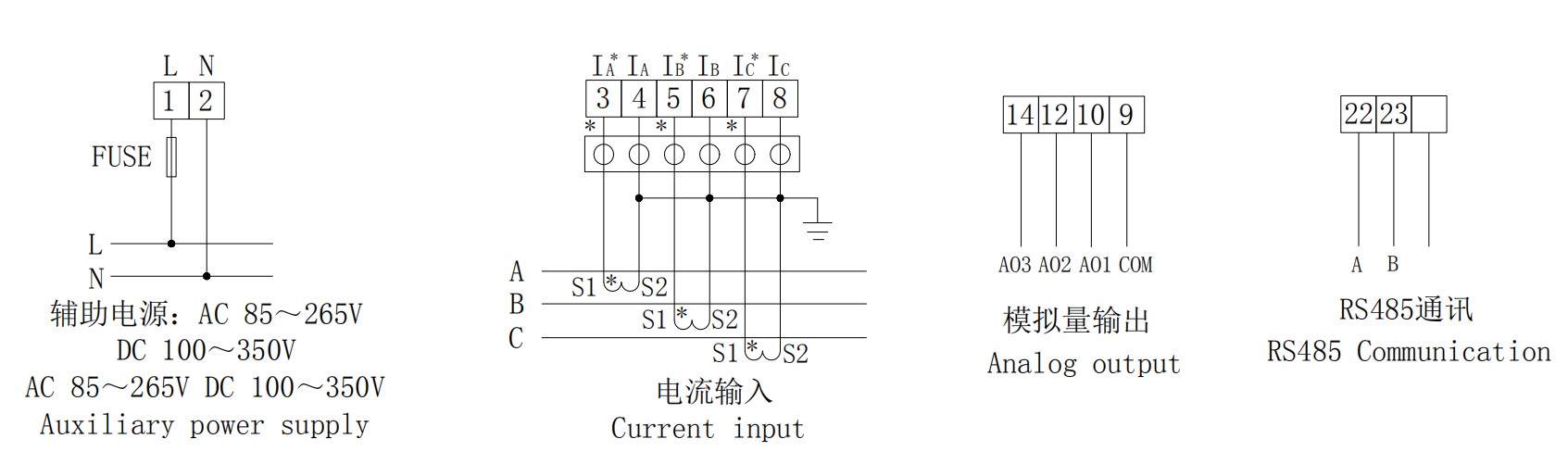

Wiring

Current transmitters


电流
