BA series AC current transducer

● Input:AC 0-10A/0-50A/0-200A/0-600A
● Output:DC 4-20mA/0-20mA/1-5V/0-5V
● Power supply:DC24/12V
  • BA
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE


The BA series products use the principle of electromagnetic induction to measure the AC current in the power grid in real time, and use constant current and linear compensation technology to convert it into a standard DC signal output.
24V or 12V safe voltage power supply can be widely used in the field of industrial automation.


Technical Parameter

BA05-AI-I-T 正面

BA05-AI/I AC Current Transducer

Measurement

● Input: 0~(0.5-10)A

● Output: DC 4-20mA/0-20mA/1-5V/0-5V

● Power supply:DC24/12V

● Aperture: 5mm

● Overload: 1.2 times of rated value

Application

● Industrial automation

● Dimension(L*W*H:mm)76*22.5*69mm


BA10 current transducer

BA10-AI AC Current Transducer

Measurement

● Input: 0~(8-50)A

● Output: DC 4-20mA/0-20mA/1-5V/0-5V

● Power supply:DC24/12V

● Aperture: 10mm

● Overload: 1.2 times of rated value

Application

● Industrial automation

● Dimension(L*W*H:mm)76*22.5*74mm


BA20 current transformer

BA20-AI AC Current Transducer

Measurement

● Input: 0~(40-200)A

● Output: DC 4-20mA/0-20mA/1-5V/0-5V

● Power supply:DC24/12V

● Aperture: 20mm

● Overload: 1.2 times of rated value

Application

● Industrial automation

● Dimension(L*W*H:mm)105*24*60mm


BA current transducer manufacture

BA50-AI AC Current Transducer

Measurement

● Input: 0~(60-600)A

● Output: DC 4-20mA/0-20mA/1-5V/0-5V

● Power supply:DC24/12V

● Aperture: 50mm

● Overload: 1.2 times of rated value

Application

● Industrial automation

● Dimension(L*W*H:mm)135*24*84mm


Parameter

Technical parameter
Value
Input BA05-AI AC 0~(0.5-10)A
BA10-AI AC 0~(8-50)A
BA20-AI AC 0~(40-200)A
BA50-AI AC 0~(60-600)A
BA50L-AI Residual current AC 0~(0.1-1)A
Output DC DC 4-20mA/0-20mA/1-5V/0-5V
Overload protection Maximum output≤ 135% of full
Load Resistance

≥1000Ω(Output voltage)

((Power voltage-4)/0.02)Ω(Output current)

Power supply DC DC12V(support 10-15V)
DC24V(support 18-30V)
Power consumption ≤1W
Power frequency withstand voltage AC2000V
Accuracy 0.5
Temperature drift ≤200ppm/℃
Response time Average value≤350ms,TRMS≤1000ms
Installation TS35mm din rail installed,or fix it on the cabinet with screws.
Enverionment Temperature Working temperature:-25℃~55℃

Storage temperature:-40℃~70℃

Humidity ≤95%(No condensation)
Altitude ≤2500m


Dimension

detail of BA current transducer


BA05-AI AC Current Sensor

dimension of BA05 current transducer

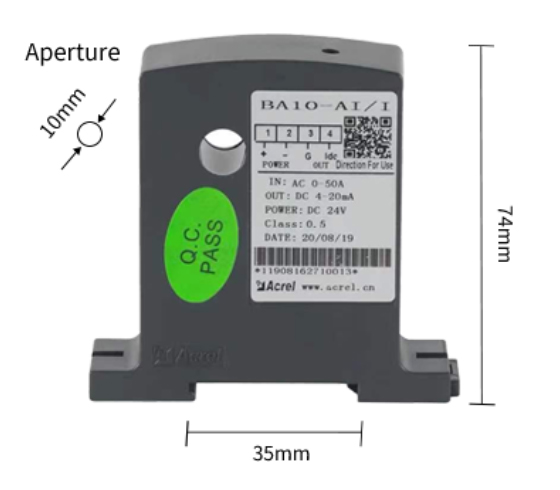

BA10-AI AC Current Sensor

dimension of BA10 current transducer

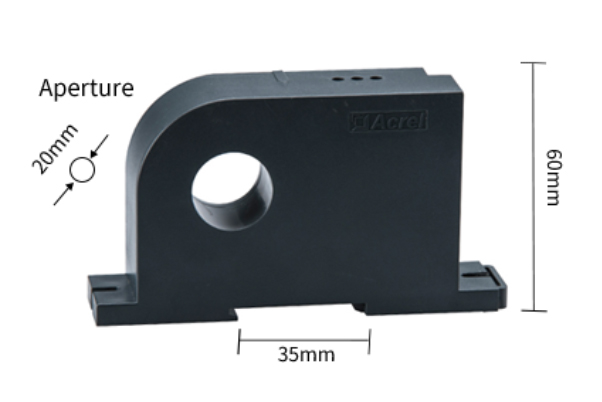

BA20-AI AC Current Sensor

dimension of BA20 current transducer

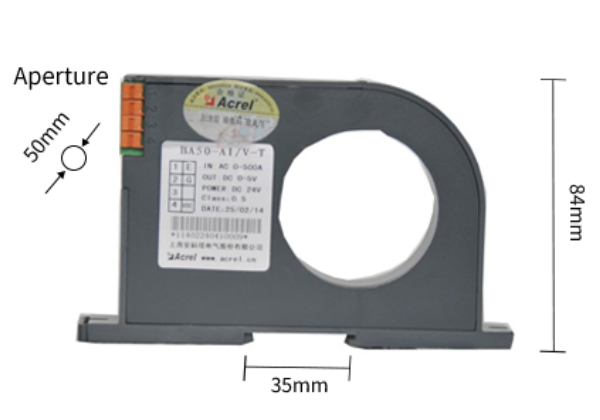

BA50-AI AC Current Sensor

dimension of BA50 current transducer


Installation Diagram

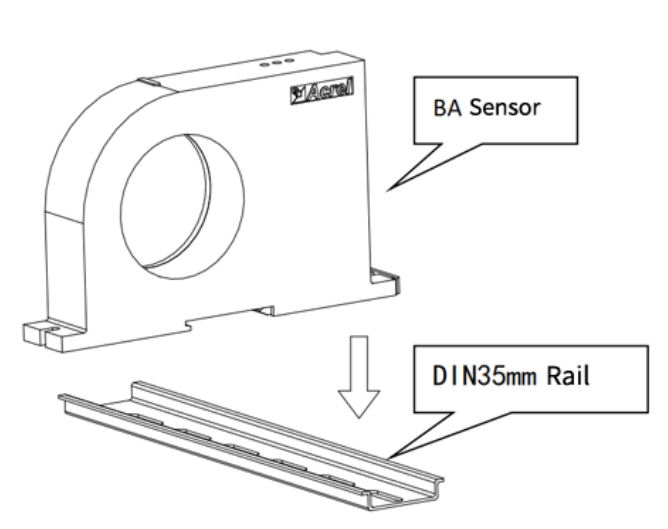

Din Rail installation

Choose a suitable place to install the standard DIN35mm rail, and install the BA sensor on the rail;

din rail installation of BA current transducer

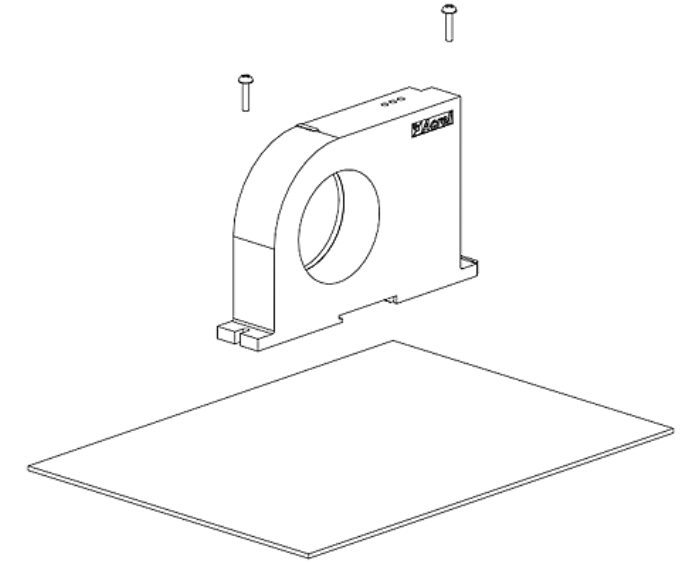

Screw fixed installation

On the bottom panel of the cabinet, choose a suitable place to open two threaded holes corresponding to the position of the fixed hole of the installed sensor; After placing the sensor, install the positioning screw

screw fixed installation of BA current transducer

Wiring

wiring of BA current transducer

1 —— + Positive power supply (not reversed)

2 —— - Power EARTH

3 —— G(Current output negative, which can be shared with the power supply)

4 —— IDC(Current output positive),VDC(Voltage output positive)
