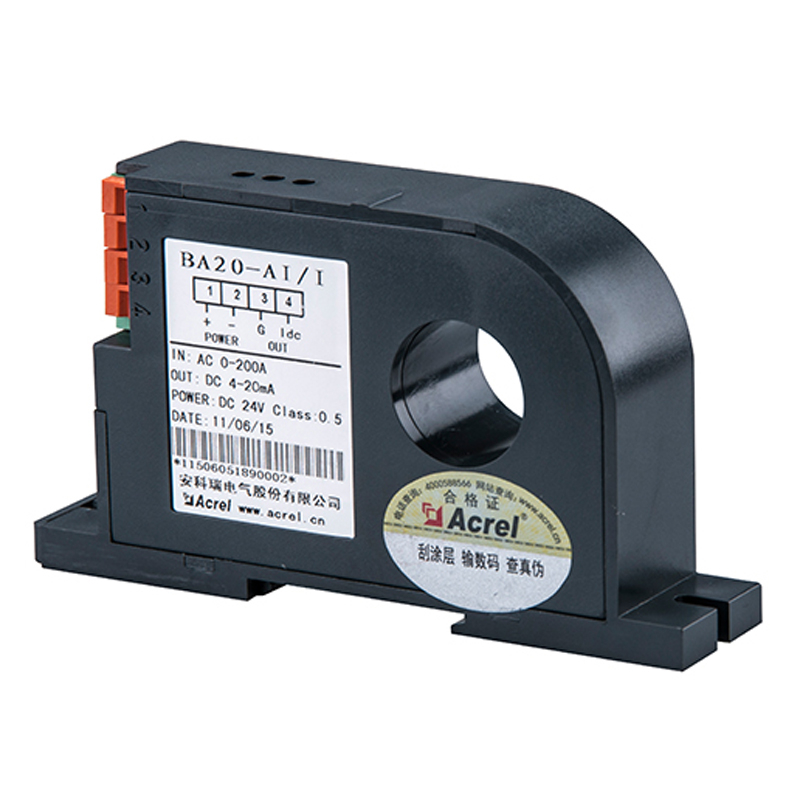

BA20-AI/I AC current transducer 0-200A

● Input：AC 0-200A

● Output：DC 4-20mA or 0-20mA or 0-5V

● Power supply：DC24/12V


Availability:



Inquire Add to Basket

Model:
BA20-AI/I
Brand:
ACREL

Download

Manual of BA：ACREL catalog of power sensor.pdf

CE of BA：CE(Current Transformer.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Certificate：CE

The BA series products use the principle of electromagnetic induction to measure the AC current in the power grid in real time, and use constant current and linear compensation technology to convert it into a standard DC signal output.
24V or 12V safe voltage power supply can be widely used in the field of industrial automation.

Product Description

BA20-AI/I AC Current Transducer

Measurement

● Input: 0-200A

● Output: DC 4-20mA or 0-20mA or 0-5V

● Power supply：DC24/12V

● Aperture: 20mm

● Overload: 1.2 times of rated value

Application

● Industrial automation

● Dimension（L*W*H：mm）105*24*60mm

Parameter

Technical parameter

Technical parameter		Value
Power consumption		≤1W
Power frequency withstand voltage		AC2000V
Accuracy		0.5
Temperature drift		≤200ppm/℃
Response time		Average value≤350ms,TRMS≤1000ms
Installation		TS35mm din rail installed，or fix it on the cabinet with screws.
Enverionment	Temperature	Working temperature：-25℃~55℃ Storage temperature：-40℃~70℃
	Humidity	≤95%（No condensation）
	Altitude	≤2500m
