AMC16-DETT multi circuit DC energy meter

●DC rated voltage: 1 channel: -48VDC ●Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2% ●RS485(MODBUS-RTU) ●LED display ●DIN 35 mm
  • AMC16-DETT
  • ACREL

Download

Manual of AMC16-DETT:Manual of AMC16-DETT.pdf

IEC of AMC16-DETT:AMC16-DETT IEC61010-1.pdf


Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application:Base station


AMC16-DETT Base Station DC Energy Meter

Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors.


Product Description

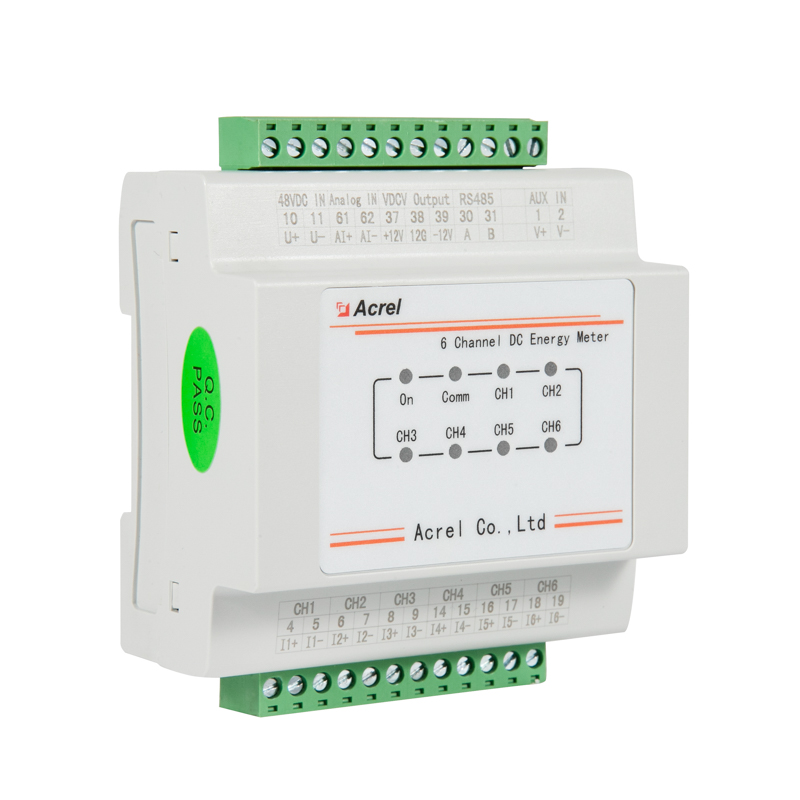

IMG_7811

Accuracy

1%In≤I≤10%In error±2.5%;I>10%In error±2%


Voltage range

-40V~-60VDC


Power consumption

≤2W( no hall power supply output)


Power supply output

+12V/100Ma, -12V/50mA


Power consumption

≤2W( no hall power supply output)



IMG_7808

Dimension(L*W*H)

89.7*87.8*52mm


Installation

DIN 35 mm


Clock

≤0.5S/d(23℃), ≤1S/d(-20℃-60℃)


Current

1.2 times continued



Display


显示

尺寸





Parameter

Parameter


Input DC rated voltage 1 channel:0-48VDC
DC current

6 channels hall sensors:total 200A/5V,China Telecom,China Mobile,China

Unicom and the 1st channel reserve 50A/5V,2nd channel reserve 100A/5V

Commercial power monitoring 1 channel:0-5VDC
Overload capacity

Voltage:1.2 times continued,2 times continued 1s;

Current:1.2 times continued,10 times continued 1s

Accuracy(superposition hall sensors) 1%ln≤l≤10%ln error±2.5%;l>10%ln error±2%
Measurement resolution Voltage:0.01V,Current:0.01A,Power:0.01kw,Energy:0.01kwh
Functions Basic function

Monitor device system time,total voltage,total current,power energy,each channel voltage,current,power,energy;LED display,RS485 communication

Metering function

Start current:under rated voltage,when the load current value of the meter doesn't exceed 1% of the max current,the meter start.

Shunt running current:when there is no current in the current circuit of the meter, and 85%-125% of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.

Alarm function DC under-voltage,DC over-voltage,one power down,module voltage loss,metering branch error,internal program error,clock error,memory failure,AC input power failure.


Typical connection


typical connection
