AMC16Z-FAK Data center multi circuit AC energy meter
You are here: Home » Products » Power Monitoring and Protection » Data Centre Monitor Device » AMC16Z-FAK Data center multi circuit AC energy meter

AMC16Z-FAK Data center multi circuit AC energy meter

● Designed specifically for the power supply management of server in the data center ● A+B independent 24 circuits(48 in total) ● U, I, P, Q, S, PF, kWh, kvarh ● 2nd-31st Harmonic ● kWh Class 0.5 ● DIN 35 mm
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • AMC16Z-FAK48

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application:Data center


AMC16Z series multi loop acquisition module is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center.It suitable for various all-round intelligent monitoring of terminal distribution equipment.



Product Description


IMG_0348

● 24 channels of each circuit of A+B independent 2 circuits the outgoing current, active power, active power, reactive power

● 2-31st harmonic, 48DI
● 1 RS485 communication


Installation

Din rail 35mm


Dimension(L*W*H)

180*94.3*75mm





Display

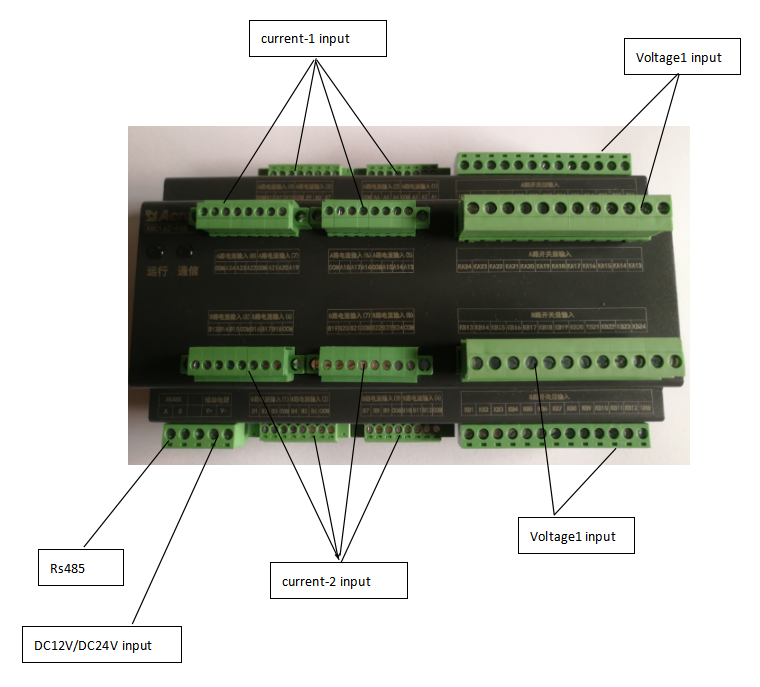

wiring





Parameter

Parameter


Distribution system AC
Specification 1 phase 2 wires, 3phase 4 wires
Measurement of electrical parameters I,U,P,Q,EP,EQ,S
2~31st harmonic
24 channels on each side(48 in total)
48DI
Voltage Rated voltage 3*220/380V
Accuracy ±0.2%
Current CT xxA/50mA
Accuracy ±0.2%
Auxiliary power supply DC 12V
Power consumption 3W
Frequency 45~65Hz,±0.2%
Accuracy Class 0.5(P/EP),Class 1(Q/EQ)
Communication RS485(Modbus-RTU)
Temperature Operating -15~55℃
Storing -25~70℃
Humidity

<95%(No condensation)

Altitude <2000m


Typical connection




Application

data center application1

Application for data center cabinet.

61
