Precision distribution monitoring solution for IDC

Views: 395 Author: Elena Publish Time: 2020-12-10 Origin: Site

Application

It is necessary to real-time monitor and centralize power consumption in data center and data can be displayed on HMI,and uploaded to the power and environment monitoring system by RS485 on touch screen and realize real-time monitoring of whole power distribution system. At the same time, it can realize energy efficiency analysis to reduce energy consumption.

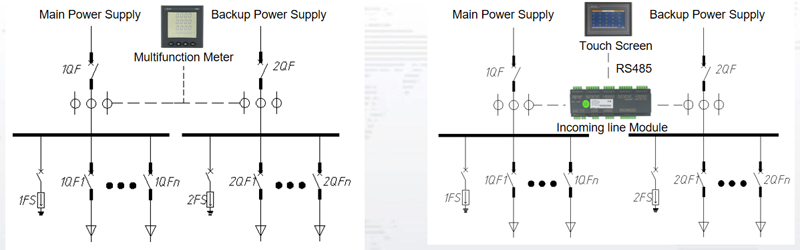

Structure

Main Function

1.Incoming line and outgoing line circuits independent monitoring modules.

2.Can measure up to 2 incoming line circuits and up to 192 outgoing line circuits current,voltage,power,energy and power quality.

3.Data centralized monitoring and display by HMI and data is uploaded to power and environment monitoring system through RS485.

4.For high voltage DC 240V or 336V system,insulation monitoring module can be added to monitor ground insulation resistance of main bus.

5.DC24V power supply for touch screen and outgoing line monitoring module(power supply from main module output )

6.Communication:monitoring device by RS485,touch screen by RS485 or RJ45

7.Certificate:CE

Product Selection

1.ATP007kt/ATP010kt HMI

·7 or 10 inch touch screen

·Real-time monitoring and display voltage,current,power,energy,power quality,switch status,waveform curve and so on.

·Monitoring device alarm,communication and other parameters can be configured on the screen.

·2 RS485 and 1 Ethernet interface,and data can be uploaded by RS485 or RJ45.

2.AMC16MA AC monitoring module

·Installation:DIN rail 35mm

·Three phase 2 channels inlet I,U,P,Q,EP,EQ,S

·Single phase 36 channels outlet

·Rated voltage 220V

·Communication:RS485 Modbus RTU

Read more

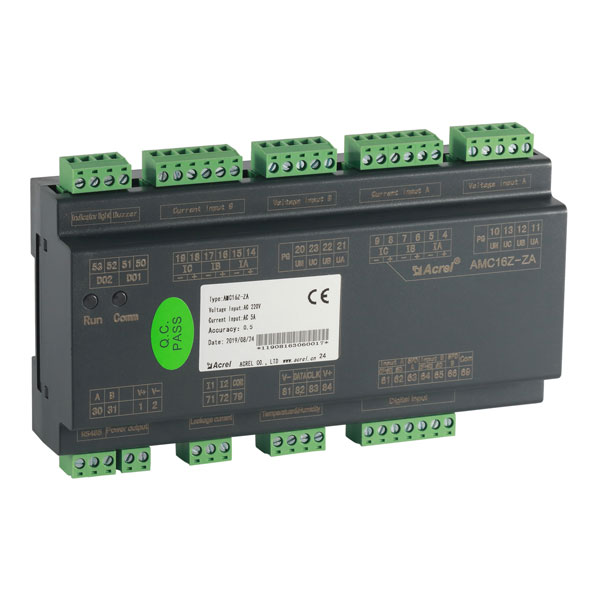

3.AMC16Z-ZA AC incoming line monitoring module

·Installation:DIN rail 35mm

·Measurement:A+B independent 3 phase circuits, 6DI2DO,2 leakage current,1 temperature and humidity.

·With DC 24V output power supply for outgoing line module and touch screen.

·Communication:RS485 Modbus RTU

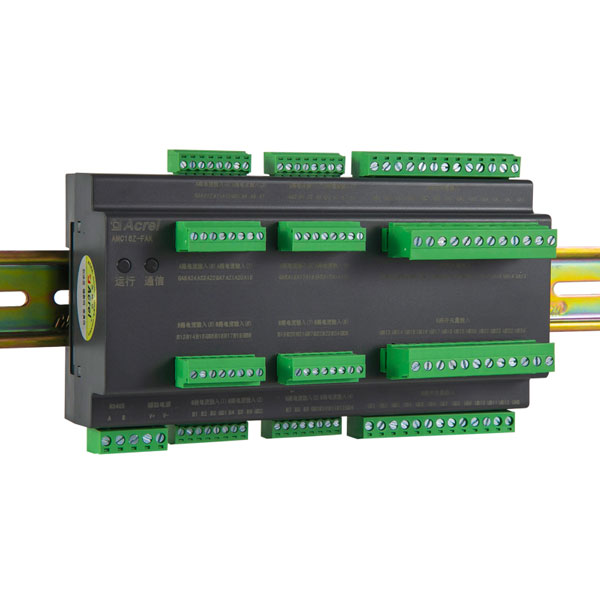

4.AMC16Z-FAK24/AMC16Z-FAK48 AC outgoing line monitoring module

·Installation:DIN rail 35mm

·Can measure up to 16 circuits 3 phase or 48 circuits single phase

·DC24V power supply

·Communication:RS485 modbus RTU

Read more

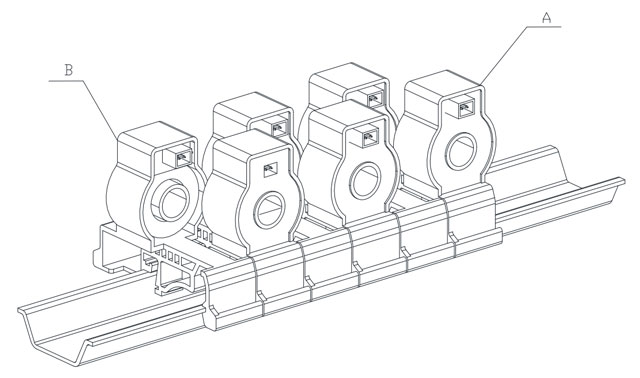

5.AKH-0.66W AC outgoing line current transformer

·Common Specification: 100A/50mA

Read more

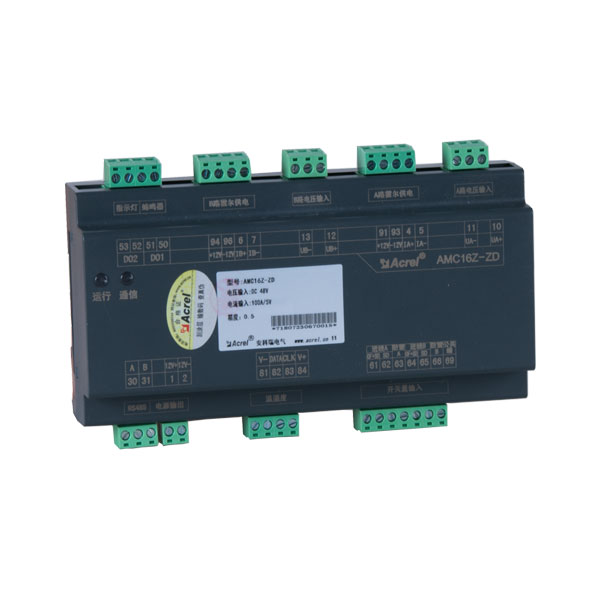

6.AMC16Z-ZD DC incoming line monitoring module

·Installation:DIN rail 35mm

·Measurement:A+B independent circuits, 6DI2DO,1 temperature and humidity.

·With DC 24V output power supply for outgoing line module and touch screen.

·Communication:RS485 Modbus RTU

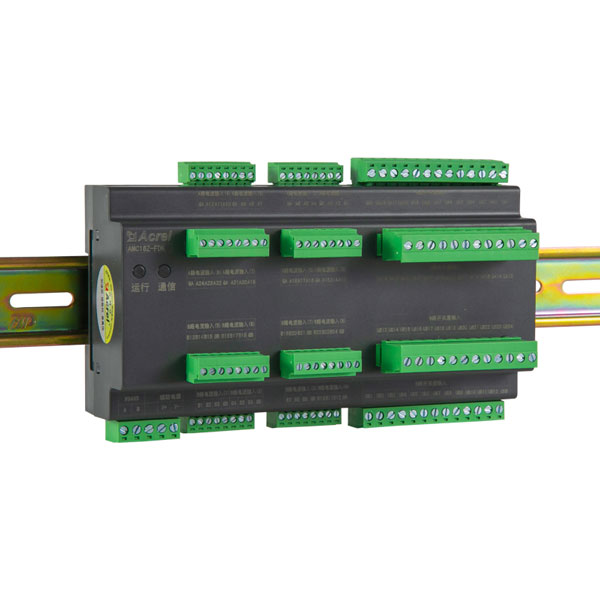

7.AMC16Z-FDK24/AMC16Z-FDK48 DC outgoing line monitoring module

·Installation:DIN rail 35mm

·Can measure up to 48 circuits DC outgoing line

·DC24V power supply

·Communication:RS485 modbus RTU

8.AMC16Z-ZJY DC incoming line insulation monitoring module

·Installation:DIN rail 35mm

·Measurement:A+B independent DC circuits ground insulation resistance of main bus

·DC 24V power supply

·Communication:RS485 Modbus RTU

9.AMC16Z-FJY DC outgoing line insulation monitoring module

·Installation:DIN rail 35mm

·Measurement:24 circuits ground insulation resistance of DC outgoing Line

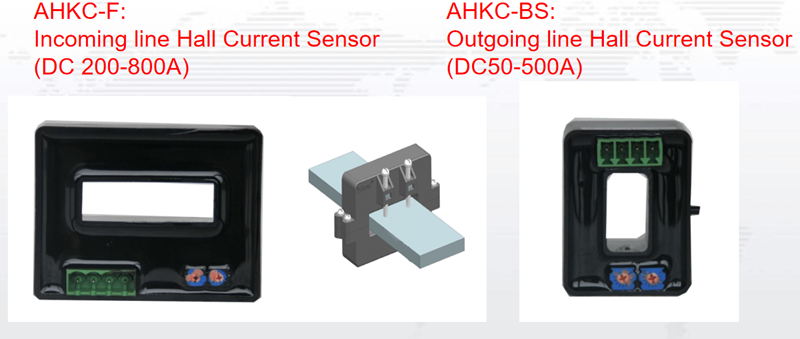

10.AHKC-BS DC outgoing line hall effect current sensor

·Common Specification:100A/5V

Read more

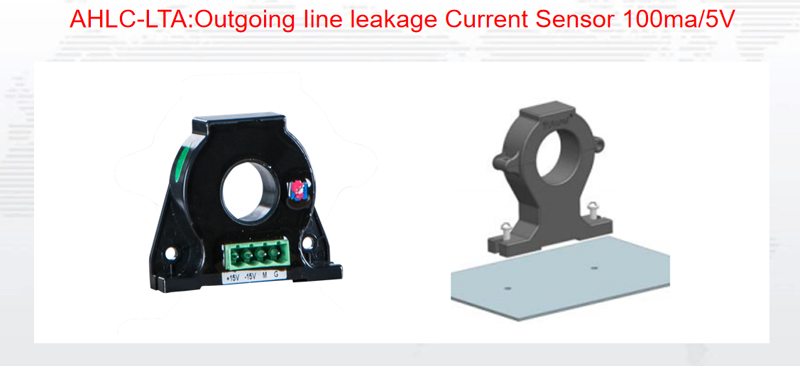

Human Machine Interface

Photos on site
