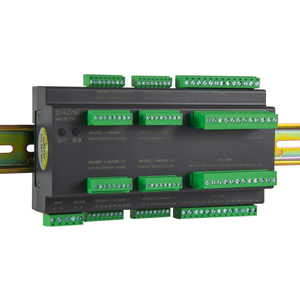

AMC16MA Multi Circuit AC Energy Meter

● Designed specifically for the power supply management of server in the data center
● Including 2 incoming line circuit and 36 outgoing line circuit
● U, I, P, Q, S, PF, kWh, kvarh
● Optional 2nd-15th harmonic


Availability:



Inquire Add to Basket

Model:
AMC16MA
Brand:
ACREL

Download

Manual of AMC16MA.pdf

Specification of AMC16 multi circuit monitoring device.pdf

Product Description

Overview

Brand:Acrel	Place of Origin：China	Certificate：CE
Application：Data center

AMC16MA series multi loop acquisition module is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center.It suitable for various all-round intelligent monitoring of terminal distribution equipment.

Product Description

● Three-phase 2 channels inlet voltage, current, active power, reactive power, power factor, active energy, reactive energy

● Single-phase 36 channels outlet (Three-phase 12 channels outlet) voltage, current, active power, reactive power, power factor, active energy, reactive energy

●1 on-off output

● 2 RS485 communication

Installation:

DIN 35mm

Dimension(L*W*H)：

194*124*88mm

Display

amc16-ma wiring

Parameter

Distribution system		AC
Measurement of electrical parameters		Three phase 2 channels inlet I,U,P,Q,EP,EQ,S
		Single phase 36 channels outlet
Busbar voltage	Rated voltage	220V
	Range	40~400V AC
	Overload	1.2 times(continuous), 10 times lasting 1s(instantaneous)
Inlet	CT	***A/5A
	Range	0~10A
Outlet	CT	100A/20mA
	Range	0~120%
Accuracy	Inlet	Class1.0
	Outlet	Class2.0
Auxiliary power supply		AC 85~265V/DC100~350V
Frequency		45~65Hz,±0.2%
Switching output		5A 250VAC/5A 30VDC
Communication		RS485(Modbus-RTU)
Temperature	Operating	-15~55℃
	Storing	-25~70℃
Humidity		＜93%（No condensation）
Altitude		＜2500m
Installation		Din rail 35mm
