Multi channel IOT energy meter

● Measurement: three phase voltage,current,power,power factor,harmonic,etc.
● Communication:RS485(Modbus-RTU)
● Maximum 4 channels 3 phase measurement
● 200 event records,record the action of DIDO
● Accuracy:Class 1
  • ADW210
  • ACREL

Download

Manual of ADW210:


Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application:IOT system

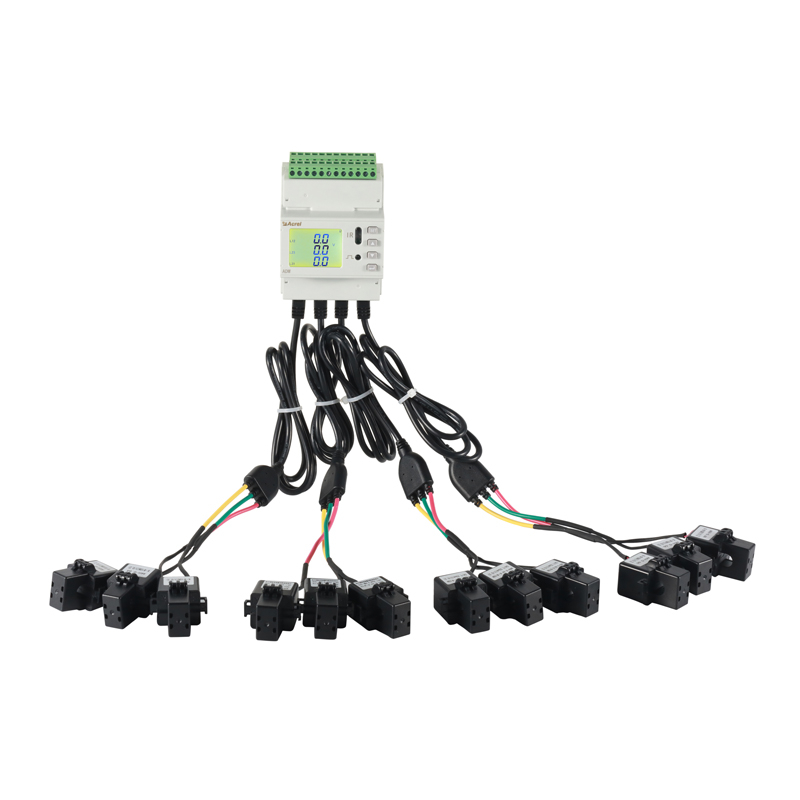

ADW210 three phase wireless energy meter

ADW210 series rail type multiloop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits. Up to four three-phase loop current inputs can be connected simultaneously.

● Measurement: three phase voltage,current,power,power factor,phase angle,unbalance, harmonic,etc.

● Communication:RS485(Modbus-RTU)

● Up to four three-phase measurement



Product Description


HG9A5242

Rated U and I

3*220/380V

AC 5A,100A,400A,600A,(External opening transformer)


Accuracy

Active energy:Class 1

Reactive energy:Class 2


Frequency

Range:45-65Hz


Pulse output

Active pulse output and Reactive pulse output(or Clock pulse output)





HG9A5256

Dimension(L*W*H)

72*97.7*36mm


Starting current

4‰Ib(class 1)


Display

LCD


Consumption

<0.5VA





Display


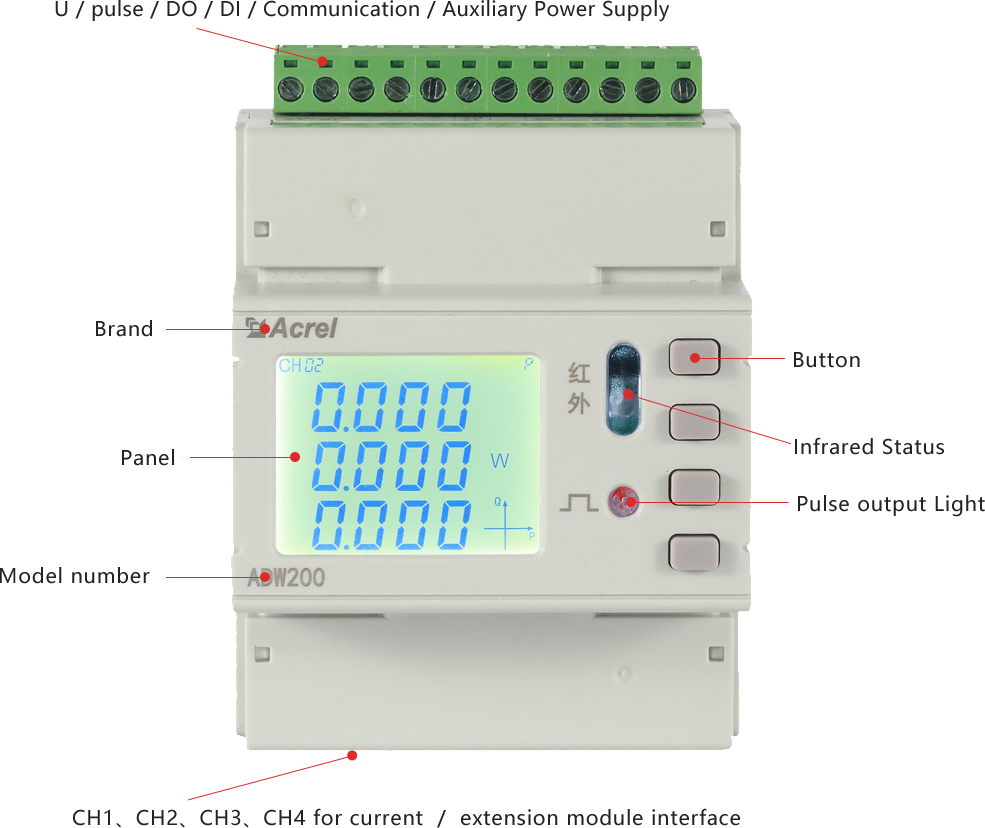

949539i





Parameter

Parameter


Auxiliary power AC/DC 85~265V,consumption≤10VA
Input Frequency 45~65Hz
Voltage AC 3×220V/380V
Overload:1.2 times of rated value(continuous),2 times of rated value/1s
Power consumption≤0.5VA
Current AC 5A,100A,400A,600A,(External opening transformer)
Overload:1.2 times of rated value(continuous),10 times of rated value/1s
Power consumption≤0.5VA
Measurement accuracy Frequency 0.05Hz,voltage and current 0.5 level,active electric energy level 1,reactive electric energy level 2
2-31st harmonic accuracy:±1%
Features Pulse output

Output mode:optocupler pulse with open collector

Communication RS485,Modbus-RTU,Baud rate 1200~38400
Switching input Dry contact input,built in power supply
Switching output

Output mode:relay normally open contact output

Contact rating:AC 250V/3A,DC 30V/3A


Typical connection

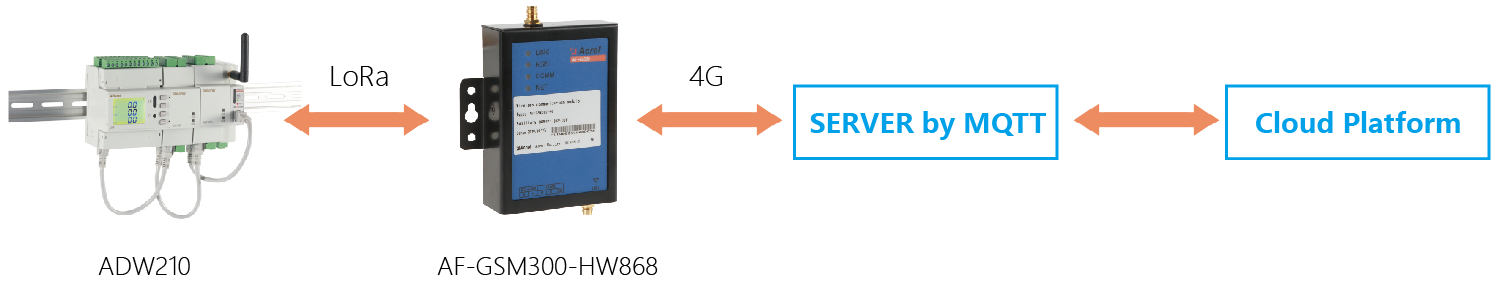

IOT power meterIOT energy meter

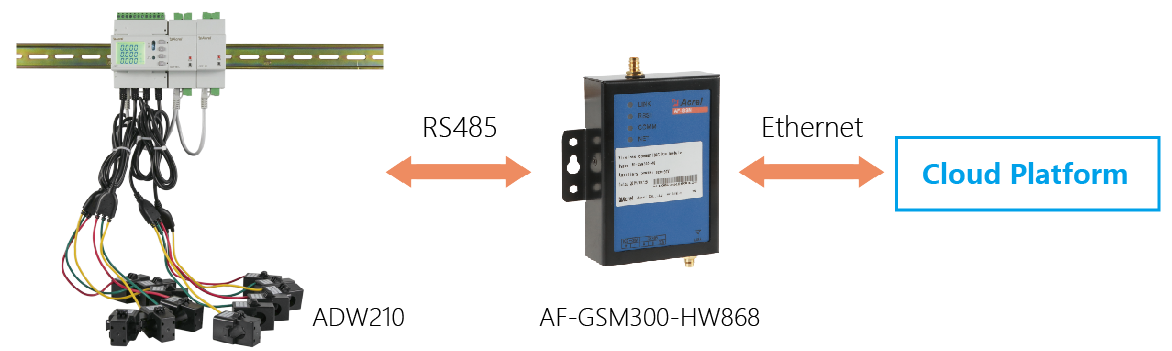

wireless meter connection


Optional module

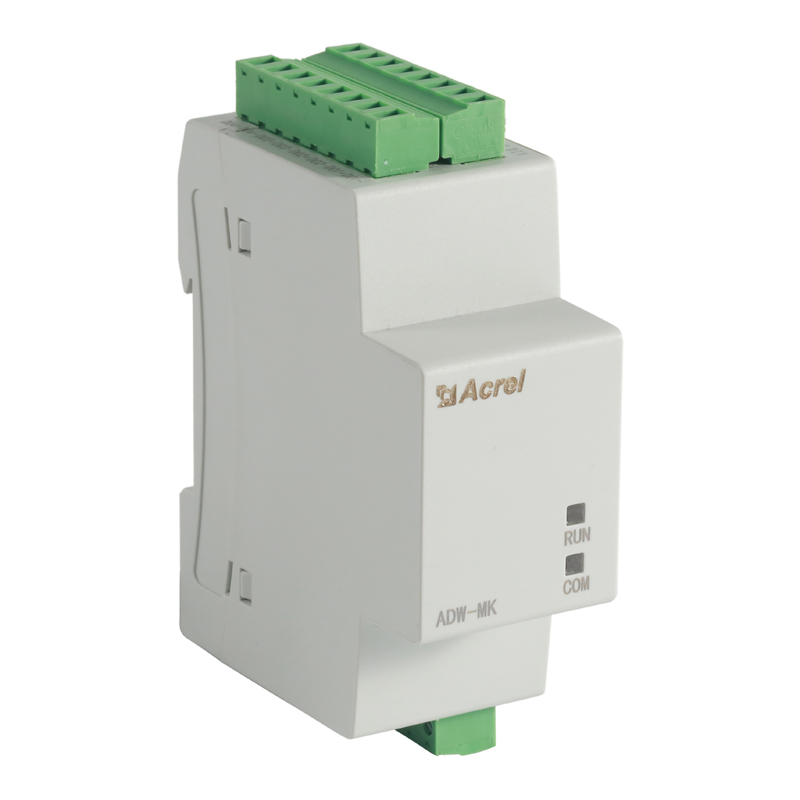

MK module

MK Switching module

12 channel switching inputs

4 channel switching outputs


MTL module

MTL Temperature and leakage module

12 channel external NTC temperature

4 channel residual current (leakage current)measurement


Switching module Power

RJ45 interface,DC 12V,Power consumption≤1W

Communication RJ45 interface,Modbus-RTU,(Communication with the main part)
Switching input Dry contact input,built in power supply
Switching output

Output mode:relay normally open contact output

Contact rating:AC 250V/3A,DC 30V/3A

Temperature and leakage module Power RJ45 interface,DC 12V,Power consumption≤1W
Communication RJ45 interface,Modbus-RTU,(Communication with the main part)
Temperature measurement -20~100℃
Leakage measurement 10~3000mA
Measurement accuracy temperature ±2℃,leakage 1.0%


HG9A5242

Current transformer

AKH-0.66/K-Φ 10N

AKH-0.66/K-Φ 16N

AKH-0.66/K-Φ 24N

AKH-0.66/K-Φ 36N

Residual current transformer

AKH-0.66-L45


AWT100 smart gateway

AWT100 smart gateway

AWT100-2G:2G wireless communication

AWT100-4G:4G wireless communication

AWT100-NB:NB-IoT wireless communication

AWT100-LoRa:LoRa wireless communication

AWT100-LW:LoRaWAN wireless communication

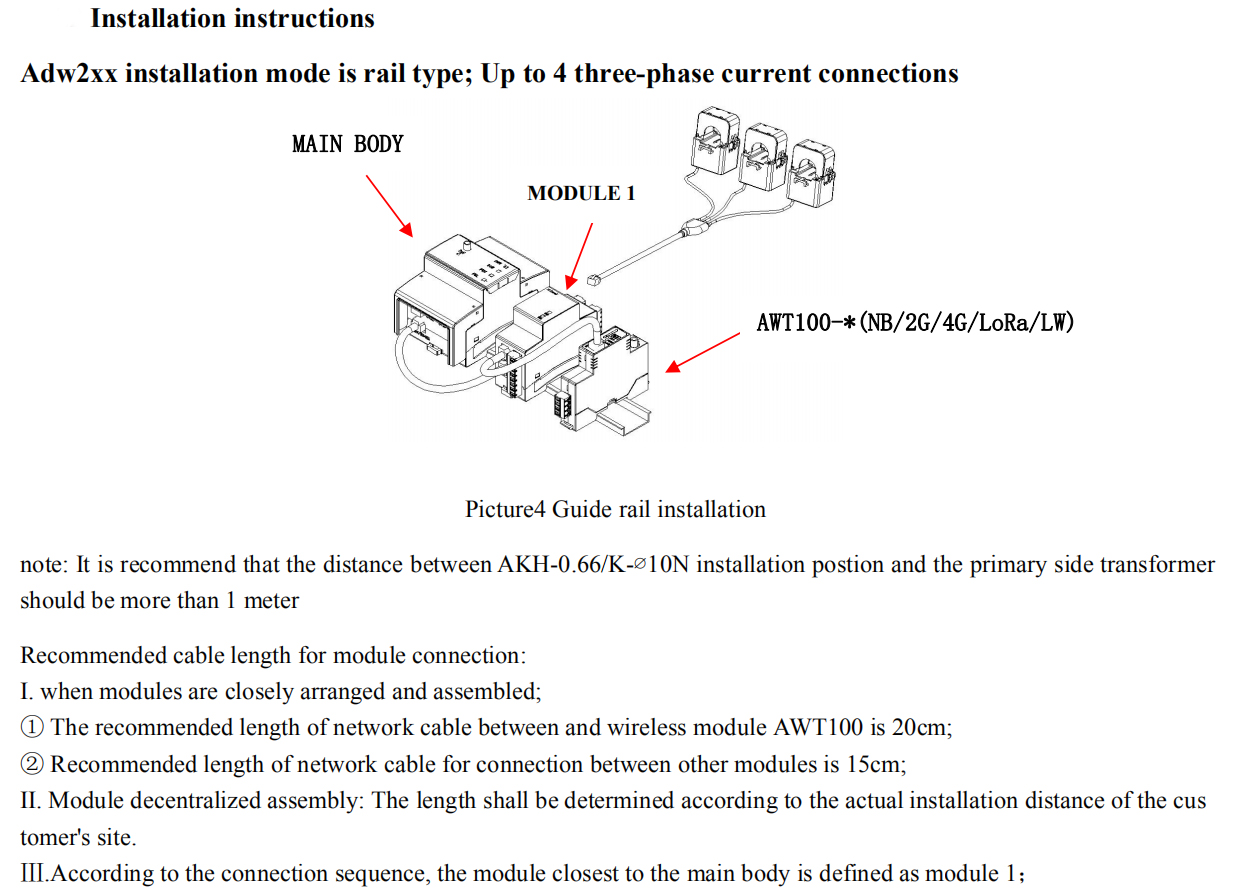

installation
