AHBC-LTA closed loop hall effect current transducer
You are here: Home » Products » Power Sensor » Hall Effect Current Sensor » AHBC-LTA closed loop hall effect current transducer

AHBC-LTA closed loop hall effect current transducer

● Closed loop
● Rated input current:AC/DC100-300A
● Rated output:50mA/100mA
● Measuring Aperture:20mm
  • AHBC-LTA
  • ACREL

Download

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE

Application:

Acquisition and feedback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.

AC variable speed drives

Battery supplied applications

Uninterruptible Power Supplies

Power supplies for welding application

AHBC-LTA closed loop hall effect current transducer


The principle of hall effect, the transformed signal can be directly collected and accepted by AD, DSP, PLC, secondary instrument and other devices.It has the advantages of fast response time, wide range of current measurement, high accuracy, strong overload ability, good linearity and strong anti-interference ability.


Product Description


acrel closed loop hall effect current transducer

Rated input current:AC/DC100-300A


Rated output:50mA/100mA


Measuring Aperture:20mm


Power supply:±15V


Size / Dimension:90*73.5*25mm


Accuracy:0.5



acrel hall effect current transducer LTA

Zero offset current: ±0.2mA


Linearity: ≤0.05%FS


Response time: ≤1us


Frenquency:100kHz


Insulation voltage: 2.5kV/50Hz/1min


Power consumption:0.5W




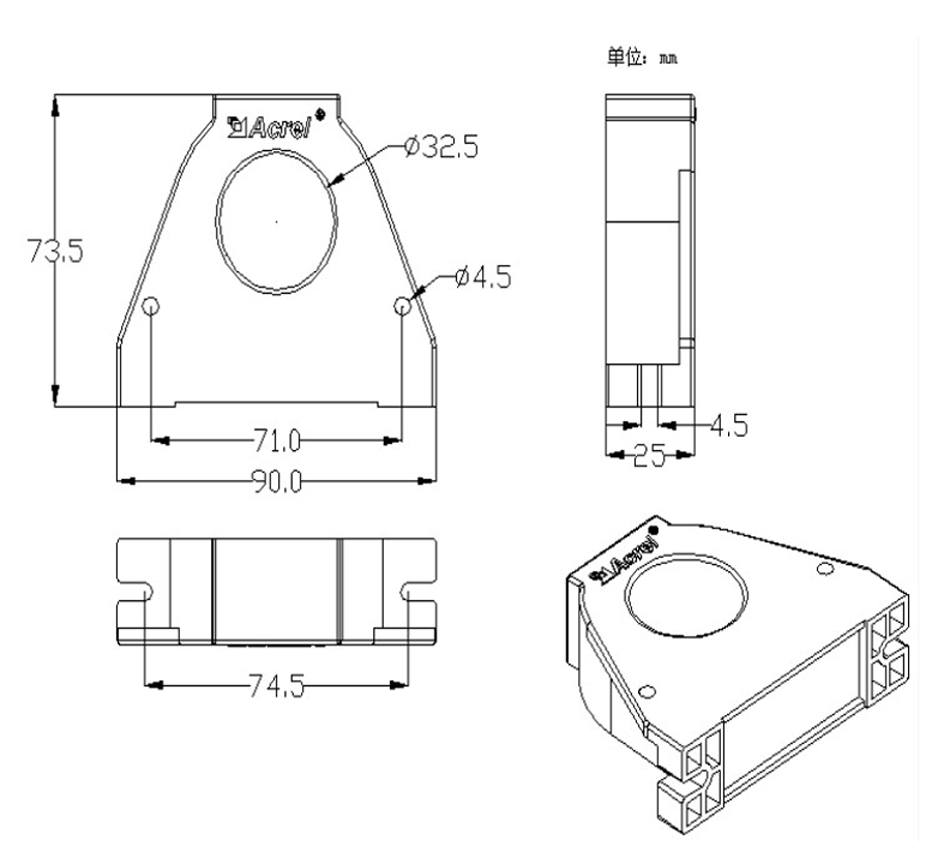

Dimension
 Dimension: 90*73.5*25mm

Aperture/

Hole size:

20mm

尺寸



Installation

wiring

wiring

Parameter

Rated input current

100A

200A300A
Measuring current range300(±18V,20Ω)A600(±18V,20Ω)A900(±18V,20Ω)A
Turns ratio1:10001:20001:3000

Rated output current

50±0.5%mA100±0.5%mA100±0.5%mA
Measuring Aperture20mm
Accuracy0.5
Power supplyDC±15V(Allow the volatility±20%)
Power consumption current20+ls
Zero offset current±0.2mA
Linearity≤0.05%FS
Response time≤1us
Frenquency100kHz
Insulation voltage

2.5kV/50Hz/1min

Working temperature

-40ºC~85ºC

Storage temperature

-40ºC~85ºC

Power consumption

≤0.5W


Application

hall effect current transducer application3


hall effect current transducer application4
