Motor circuit protector

● Suitable for motors with rated voltage of AC380V/660V;
● Optional leakage protection, RS485 communication, analog output, etc.
● 2 channels DI passive dry node input, signal power supply with built-in DC24V power supply;
● 4 channels DO output.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ARD2

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Standards:CE


ARD2 smart motor protector can protect the motor during the running and provide the SOE fault event recorder. It is equipped with the RS485 remote communication interface and the DC4-20mA analog output, which is convenient to form a network system together with control machines like PLC and PC.


Product Description

ard2-1

HG9A9429

ARD2 Smart Motor Protector

Communication

RS485 (Modbus-RTU)


Display

4 digitals LED display


Rated U and I

AC380/660V, rated current up to 800A


Auxiliary power supply

AC85V~265V/DC100V~350V



HG9A9745

Accuracy

U, I: Class 1.5


Frequency

Range: 45-65Hz


SOE event recorder

Record 8 fault messages


Installation:

Panel mounted


Dimension(L*W*H):

96mm*78.5mm*48mm




Parameter

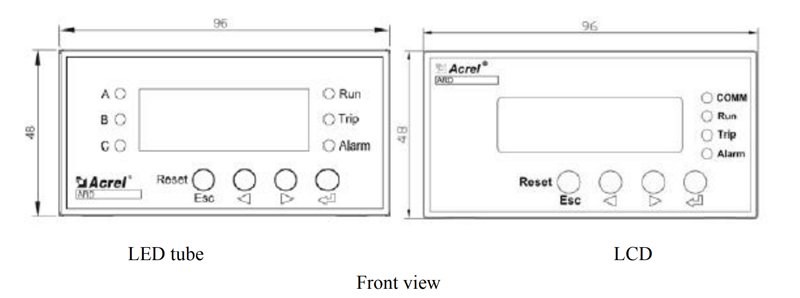

Dimension

dimension


主体

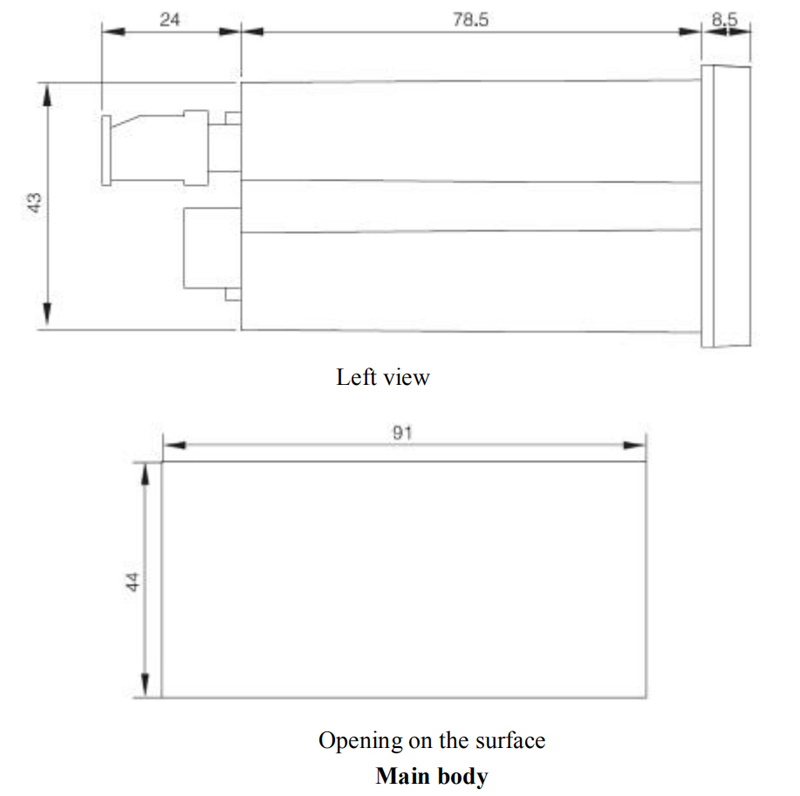

When install the meter, loosen the locking screw of the fixing bracket, remove the fixing bracket, insert the instrument into the mounting hole, install the fixing bracket and tighten the screw to make the instrument be firmly installed without loosening.Shape for clamp reed squeeze installation.

Parameter

Parameter Technical specification
Auxiliary power supply AC85-265V/DC100-300V,power consumption≤7VA
Rated voltage AC380V/660V,50Hz/60Hz
Rated current 1A(0.1-999.9A) Specific current transformer
5A(0.1-999.9A)
1.6A(0.4-1.6A)
6.3A(1.6-6.3A)
25A(6.3-25A)
100A(25-100A)
250A(63-250A)
800A(250-800A)

Relay output contactor

Rated negative capacity

4 channels,AC250V,3A
Switching input 2 channels,opto-coupler isolation
Communication Standard RS485(Modbus-RTU)
Option(choose one)

1 or 2 channels Profibus DPV1

1 channel Profinet

Ethernet(Modbus TCP)

Environment Operation temperature -10℃~+55℃
Storage temperature -20℃~+65℃
Relative humidity ≤95%(No condensation)
Altitude ≤2000m
Class of pollution Level 2
Protection level Main module IP20
Installation category Class III
