AGF-AE-D single phase two wire solar photovoltaic energy meter
You are here: Home » Products » Power Monitoring and Protection » PV/Solar Inverter Energy Meter » AGF-AE-D single phase two wire solar photovoltaic energy meter
AGF-AE-D single phase two wire solar photovoltaic energy meter AGF-AE-D single phase two wire solar photovoltaic energy meter
AGF-AE-D single phase two wire solar photovoltaic energy meter AGF-AE-D single phase two wire solar photovoltaic energy meter
AGF-AE-D single phase two wire solar photovoltaic energy meter AGF-AE-D single phase two wire solar photovoltaic energy meter
AGF-AE-D single phase two wire solar photovoltaic energy meter AGF-AE-D single phase two wire solar photovoltaic energy meter
AGF-AE-D single phase two wire solar photovoltaic energy meter AGF-AE-D single phase two wire solar photovoltaic energy meter

AGF-AE-D single phase two wire solar photovoltaic energy meter

●Single phase three wire
●Rated voltage: AC 120V/208V，240V(88%~110%)
●Rated current: AC 100A ， 200A
●Application: inverters in Australia, Europe, North America and other areas
●DIN 35 mm
Availability:
Inquire Add to Basket

  • AGF-AE-D
  • ACREL

Download

Manual of AGF-AE-D：AGF-AE-D energy meter for inverter.pdf

UL/ANSI of AGF-AE-D:CoFC_70171135_EN  AGF-AE-D200  CSA (UL+ANSI).pdf


Product Description

Overview


Brand:Acrel Place of Origin：China Certificate：UL，ANSI
Application：Solor photovoltaic，inverter


AGF-AE-D Single Phase AC Energy Meter

AGF-AE-D single phase 3 wire energy power meter with UL for off-grid inverter.


If the inverter has a built-in revenue grade meter(RGM),an external meter on the same bus can be wired as RGM.
It is with RS485,SunSpec protocol.
This single phase 2 channel energy meter mainly used in inverters applied in Australia, Europe, North America and other areas.

AGF-AE-D/100：100A, AGF-AE-D/200：200A


Product Description


AGF-AE-D energy meter for off-grid inverter


Rated voltage（line to N）：120V

Rated voltage（line to line）：208/240V

Power Supply(self supply)

AC85～265V or DC100～350V; power consumption ≤10VA


Frequency：60Hz

Installation：Din rail 35mm



Dimension(L*W*H)

54.1×87.8×52mm

Communication：

RS485，SunSpec protocol

Number of Supplied Current Transformers：

2pcs
AGF-AE-D

Standard：

UL1741 installed in the output of inverters,converters,controllers and interconnection system equipment for use with distributed energy resources.


Display


显示





Parameter

Parameter

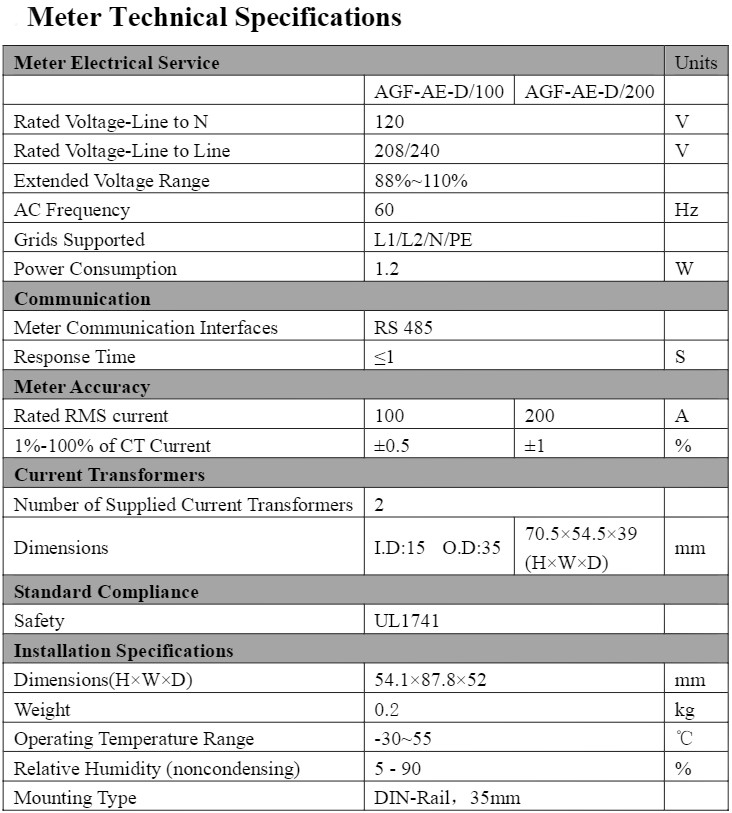

technical specification


Typical connection


防逆流检测仪表

接线

typical connection

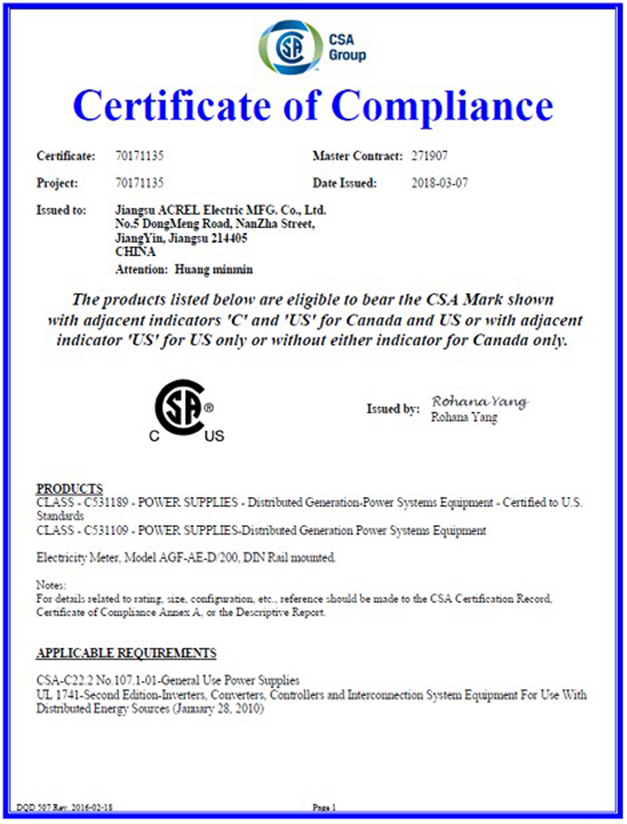

Certificate

certificate

UL

attestation

ANSI
