In critical sectors such as data centers, communication base stations, and rail transportation, UPS power supply systems are the core of ensuring continuous equipment operation, while batteries are the "last line of defense" for the entire power supply system. A battery failure can paralyze the entire system, causing incalculable losses.
Battery Failure: A Hidden Time Bomb in the System
Statistics show that almost all battery failures can be detected by an increase in the internal resistance of individual cells. According to the IEEE 1188-1996 standard, when the battery's internal resistance increases to 125%-130% of the baseline value, the corresponding battery capacity will drop to 80%, which is the standard line for judging battery failure in the battery industry.
The main causes of battery failure include: passivation of active materials due to long-term float charging, drying of electrolyte, and corrosion and deformation of plates. These factors will directly lead to an increase in battery internal resistance and a decrease in capacity.
With increasingly stringent industry standards, intelligent monitoring is imperative.
The implementation of standards such as GB50174-2017 Design Specification for Computer Rooms of Electronic Information Systems, ANSI/TIA-942 Design and Planning Requirements for Communication Data Centers, and IEEE-1491 Guidelines for the Selection and Use of Battery Monitoring Equipment has placed higher demands on battery monitoring.
In particular, ANSI/TIA-942 Level 4 data center standards explicitly stipulate that the temperature, voltage, and internal resistance of individual batteries must be automatically detected. Battery internal resistance, as a primary parameter indicating battery capacity and health status, along with auxiliary parameters such as voltage and current, becomes crucial for battery monitoring.
ABAT100 Series: Intelligent Solution for Online Battery Monitoring
Acrel Electric's ABAT100 series online battery monitoring system is a professional solution developed in this context. Compliant with ANSI/TIA-942 standards, the system provides early warnings for failing batteries and performs battery equalization, effectively preventing system failures due to battery malfunctions.

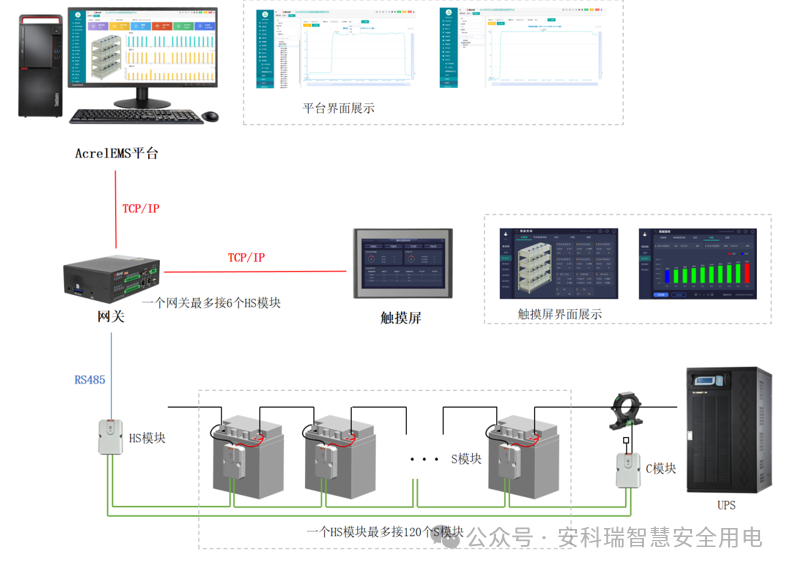

System Composition and Functional Features

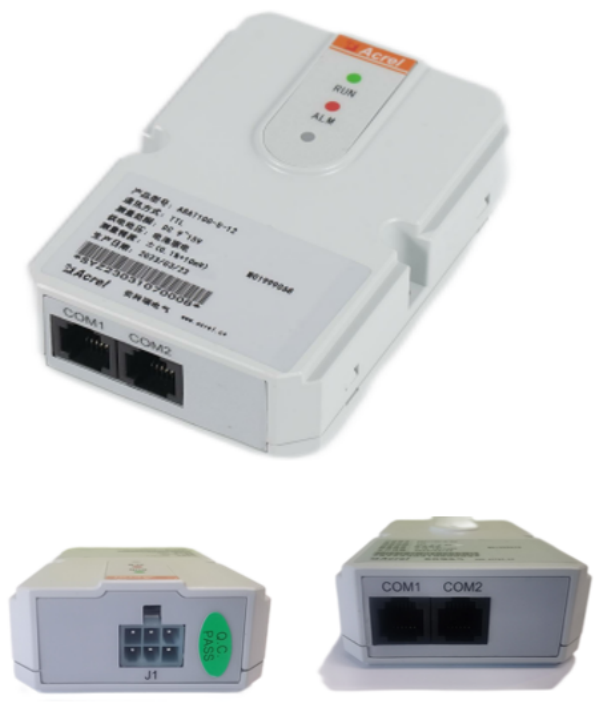

ABAT100-S Single Cell Monitoring Module: One monitoring module per cell
24-hour online monitoring, real-time detection of deteriorating batteries
Three detection ranges: 2V, 6V, and 12V, meeting the needs of most batteries
Monitors three key parameters: voltage, internal resistance, and negative electrode temperature
Simple installation; connect one wire to each of the positive and negative terminals; no special training required for installation.

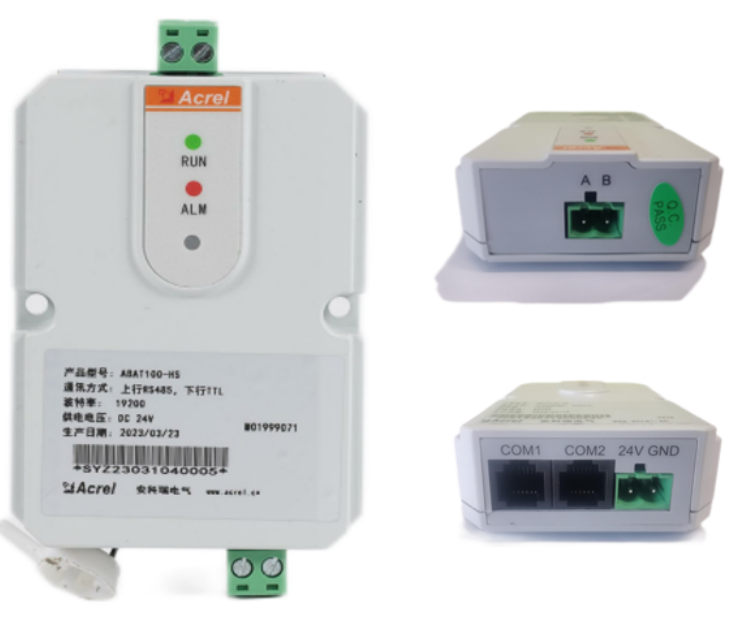

ABAT100-HS Data Acquisition Unit: One acquisition unit per battery group
Manages data from up to 120 batteries
Automatically analyzes and processes data to accurately estimate remaining battery capacity
Supports MODBUS protocol for easy integration with third-party monitoring systems
ABAT100-C Single Battery Monitoring Module: One monitoring module per battery group.
Dedicated to monitoring charge/discharge current and ambient temperature.
Features opto-isolation for strong anti-interference capabilities.
Equipped with a Hall current sensor for high monitoring accuracy.

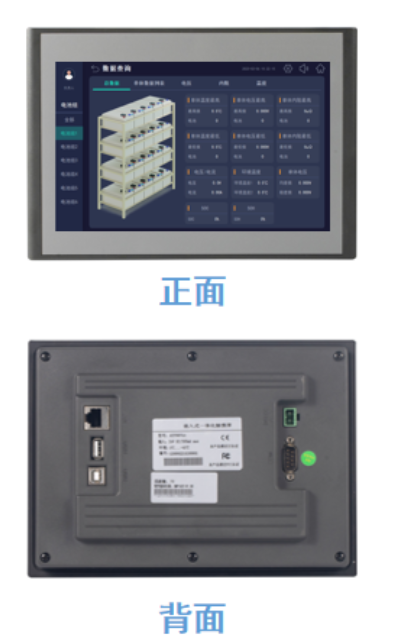

ATP Touchscreen Display: System Human-Machine Interface
Real-time data, alarm information, event query and statistics functions
Diverse graphical displays including line graphs, bar charts, and pie charts
7/10-inch industrial-grade touchscreens available to adapt to different scenario needs

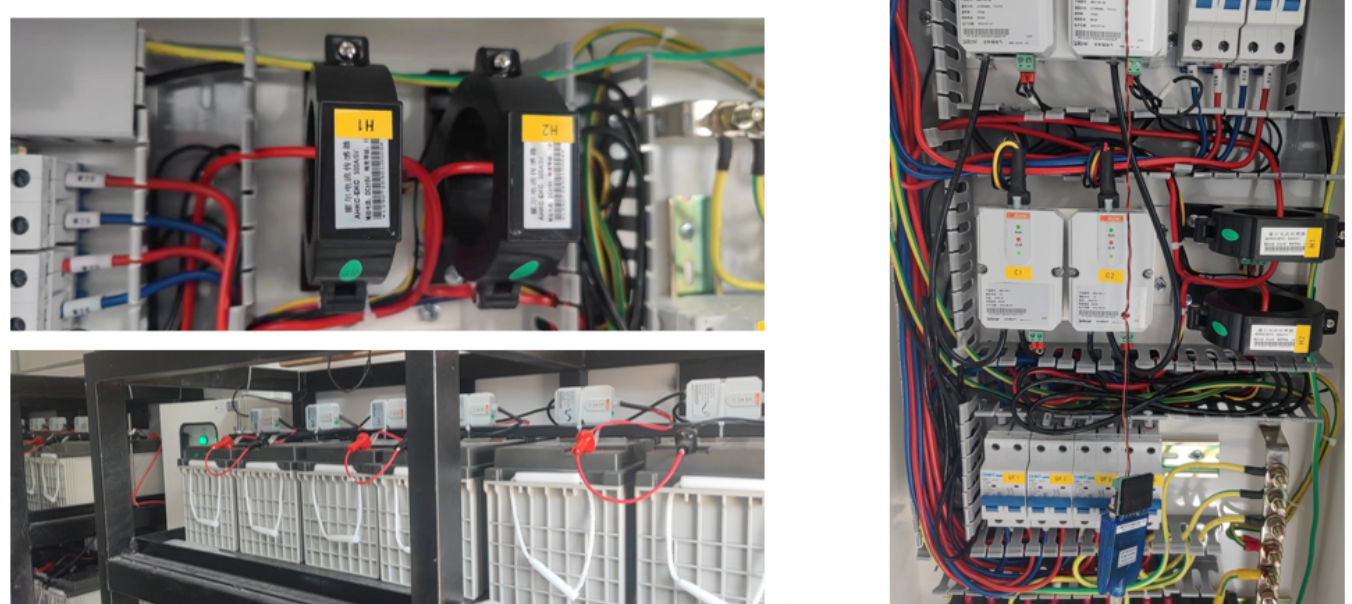

Successful case studies demonstrate the system's reliability
The system, which has been exported overseas, has performed exceptionally well in Brazilian hospital projects, demonstrating its adaptability and reliability under international standards.
Wide Range of Applications, Comprehensive Power Supply Security
Data Centers: As the "heart" of the information age, data centers have extremely high requirements for power quality. The ABAT100 system provides scientific operation and maintenance management for UPS power supply systems.
China Tower Base Stations: With the implementation of the national strategy for building a strong network, the stable operation of base stations 24 hours a day is crucial. This system safeguards the stable operation of China Tower base stations.
Oil and Petrochemical Industries: From exploration and oil extraction to refining, each stage is equipped with computer rooms and data centers for data storage and analysis, requiring extremely high power supply continuity.
Rail Transit: With the booming development of China's rail transit system, represented by high-speed rail, the battery energy storage equipment on trains is crucial to personal safety, ensuring basic lighting, door control power, and other escape functions in emergencies.
Conclusion: As the last line of defense for the power supply system, the health of the battery directly affects the reliability of the entire system. Acrel's ABAT100 series online battery monitoring system, through scientific operation and maintenance management of the battery system, can promptly detect potential faults, extend battery life, ensure power supply security, and reduce total cost of ownership. In the wave of digitalization and intelligentization, choosing a reliable battery monitoring system is to build a "last line of defense" for critical equipment.
