AIM-D100-CA Series DC Insulation Monitor

AIM-D100-CA series DC insulation monitor can be applied in DC system of 0~1000V, used for on-line monitoring of DC ungrounded system positive and negative pole to ground insulation resistance, when insulation resistance is lower than the set value, it will send out warning or alarm signal. The product is mainly designed for DC 0~1000V range of electric vehicle charging device insulation monitoring, but also can be applied in energy storage DC, substation DC screen, UPS power supply system, photovoltaic DC system and other DC power grid DC system.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • AIM-D100-CA

  • ACREL

Product Description

Overview
Brand:Acrel

Place of Origin:China



With the development of industry, many electrical equipment and factory equipment are powered by DC systems, and the positive and negative poles of the DC system are not grounded. For ungrounded (IT) power distribution systems, insulation resistance should be monitored to ensure the safe operation of the power supply system.


AIM-D100-CA series DC insulation monitor can be applied in DC system of 0~1000V, used for on-line monitoring of DC ungrounded system positive and negative pole to ground insulation resistance, when insulation resistance is lower than the set value, it will send out warning or alarm signal.


The product is mainly designed for DC 0~1000V range of electric vehicle charging device insulation monitoring, but also can be applied in energy storage DC, substation DC screen, UPS power supply system, photovoltaic DC system and other DC power grid DC system.


Specifications

model description

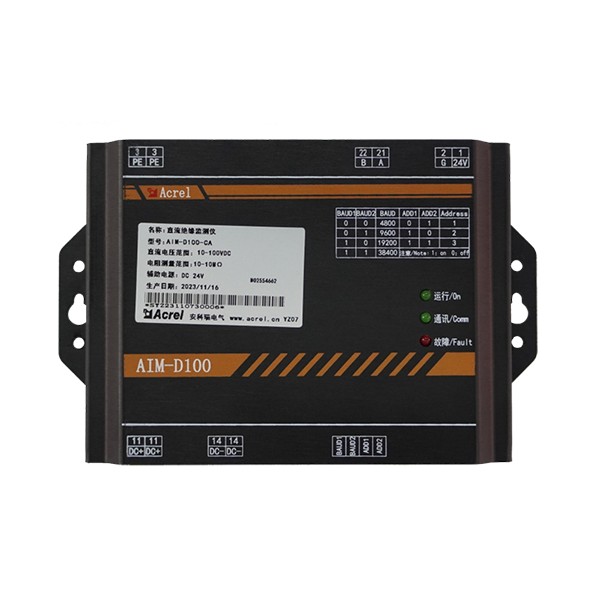

AIM-D100-CA_F

AID150 Alarm And Display Device


● Resistance Monitoring

● Voltage Monitoring

● Current Monitoring (Optional)

● LED Indicator

● RS485 Communication

● Metal Casing

● Plug-in Terminals


Parameter

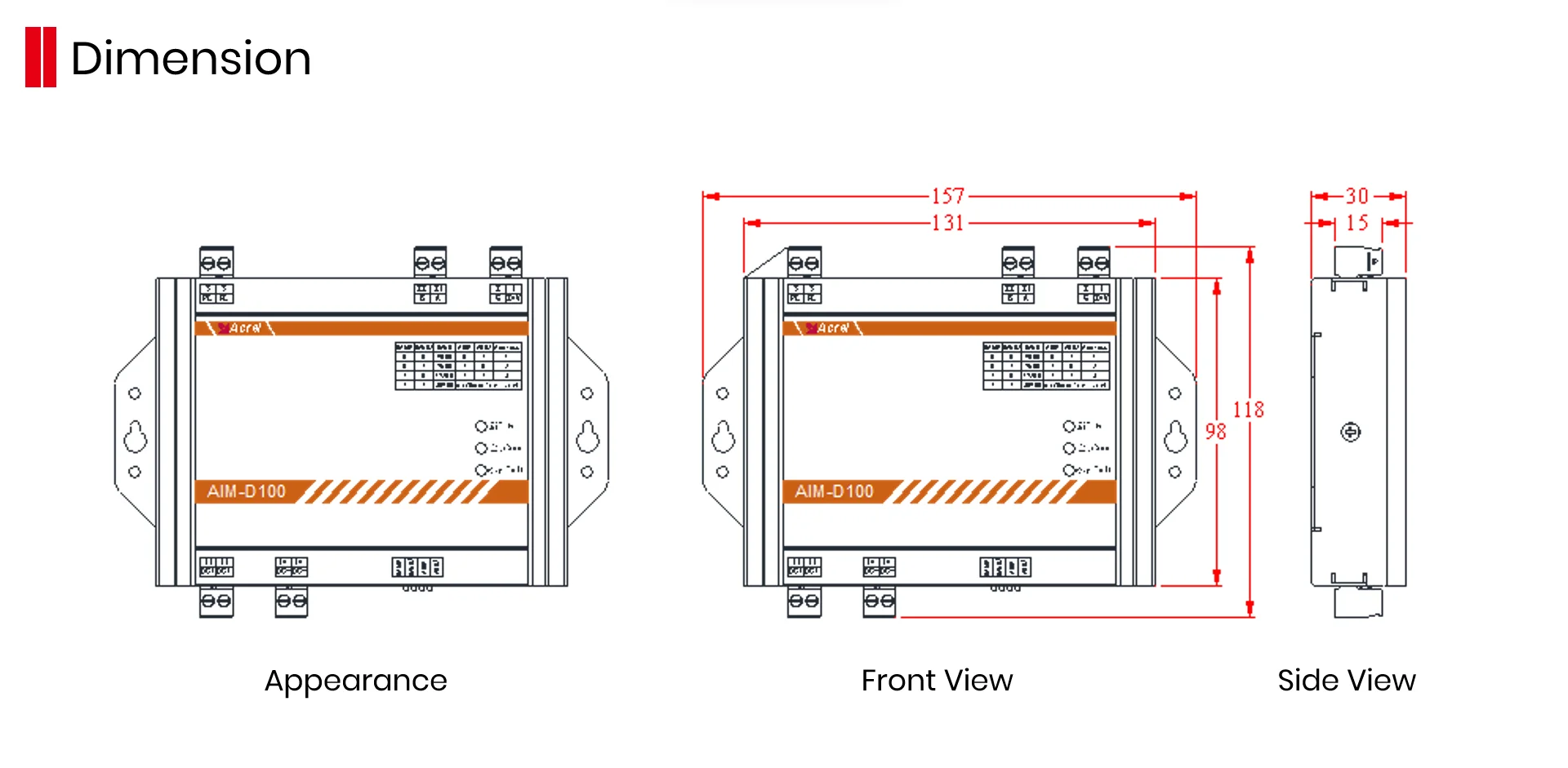

dimension

Parameter

AIM-D100-CA
Technical Parameter
Auxiliary Power
DC 9~36V
Max. Power Consumption
≤6W
Voltage Monitoring
Voltage Range
DC 0~1000V
Accuracy
Class 0.5
Current Monitoring
Current Monitoring
Connect with current shunt base on rated current; CAI models only
Accuracy
5%
Insulation Monitoring
Insulation Resistance Range
1kΩ~10MΩ
Warning and Alarm Range
10kΩ~10MΩ
Accuracy
1~10kΩ: ±1k; 10k~500k: ≤3%
System Leakage Capacitance
≤5μF
Insulation Monitoring Speed
500ms/cycle; 1000ms/cycle
Alarm Method
LED indicator
Communication
RS485 interface, Modbus-RTU protocol
Installation
Wall-mounted installation or
DIN-rail installation (plastic stent included)
Protection Level
IP30
Environment
Operating Temp.
-40~+75℃
Storage Temp.
-40~+125℃
Relative Humidity
<95%, without condensation
Altitude
<2000m


Application

installation

application
