ACR10R-D16TE4 three phase energy meter for solar PV

● Rated voltage: AC 57.7V/100V or 220V/380V(400V)
● Rated current:AC 80A,120A,200A,300A
● RS485(MODBUS-RTU)
● Certificate: CE
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ACR10R-D16TE4

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application:Solor photovoltaic,inverter


ACR10R-D16TE4 Three Phase AC Energy Meter



Product Description

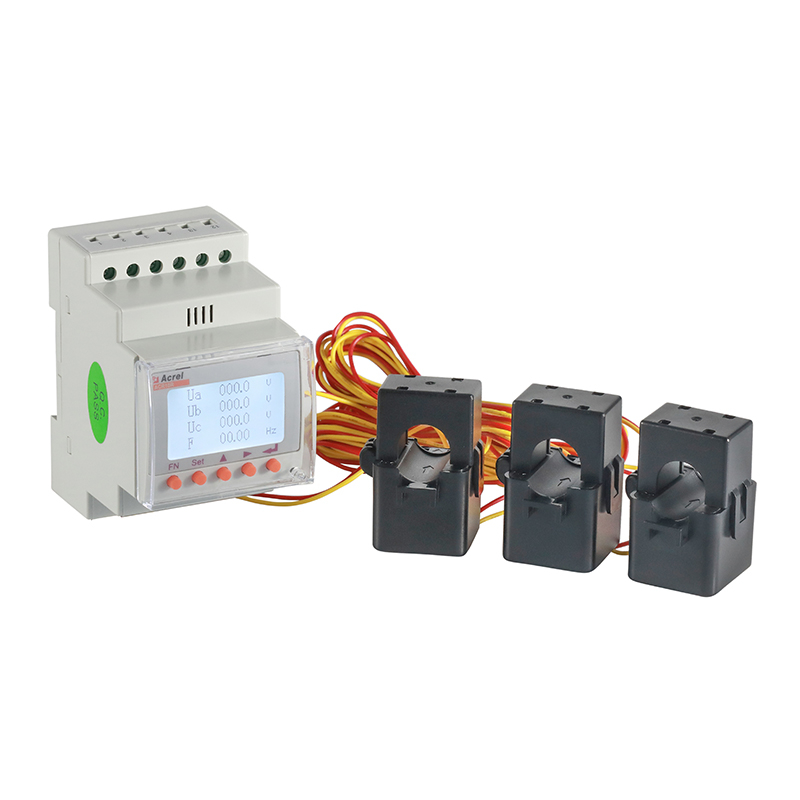

solar energy meter

Accuracy

Voltage: 0.2, Current, Power,Active energy: 0.5,Frequency:0.01Hz,Reactive energy:1

Frequency

45~65Hz

Power consumption

≤10VAp>

Power supply output

AC85~265V or DC100~350V

Input consumption

Less than 0.2VA




solar three phase energy meter

Dimension(L*W*H)

85*74*54mm

Installation

DIN 35mm

Display

LCD display

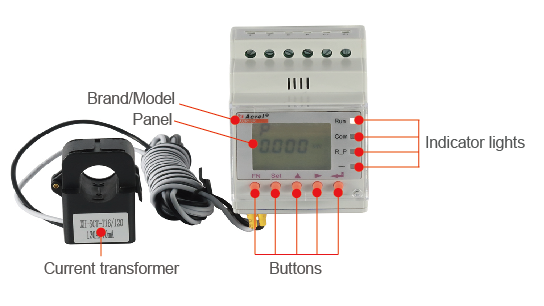

Display


display





Parameter

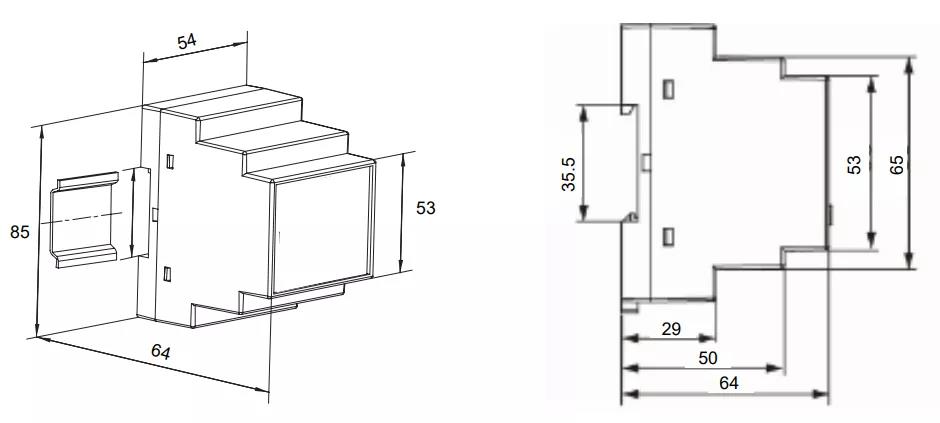

Dimension


energy meter dimension

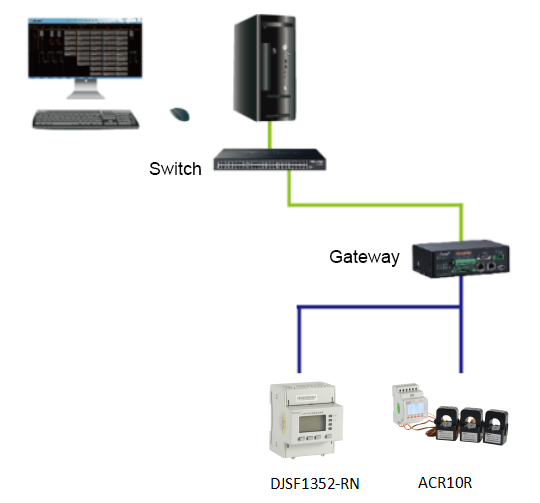

Typical connection



wiring

typical connection


Certificate

CE(ACR10R
