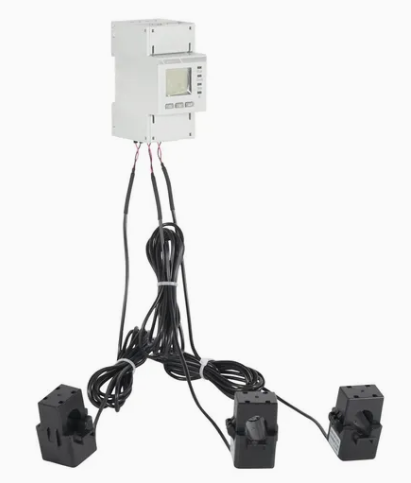

ADL400N-CT Three Phase Energy Meter for Solar PV

Measurement

Current:

5A、80A, 120A, 200A, 300A, 3*5A、

3 × 80A, 3 × 120A, 3 × 200A, 3 × 300A

Voltage:

3×220/380V、3× 230/400V、3×277/480V

Frequency

45～65Hz

Response Rate

≤100ms

Power Consumption

＜0.2VA

Accuracy

±0.5%

Interface and Communication Protocol

RS485 interface and Modbus RTU
