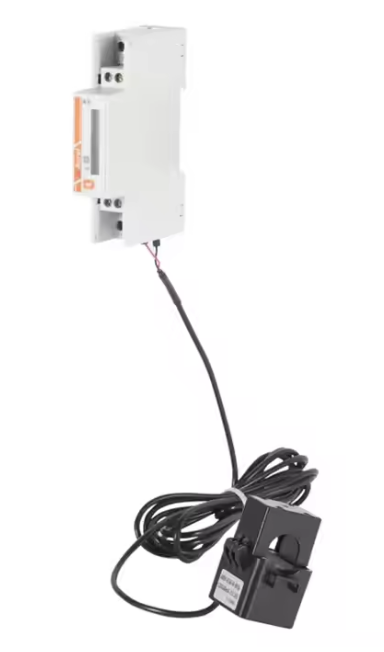

ADL200N-CT Single Phase Energy Meter for Solar PV

● Rated voltage: AC 230V
● Rated current:AC 80A,120A,200A,300A
● RS485(MODBUS-RTU)
● Certificate: CE/MID


Availability:



Inquire Add to Basket

Model:
ADL200N-CT
Brand:
ACREL

Download

Manual of ADL200N-CT：

ADL200N-CT Series DIN-Rail Mounted Electric Energy Meter

CE of ADL200N-CT:

ADL200N-CT CE-LVD Certificate.pdf

ADL200N-CT CE-EMC Certificate.pdf

Product Description

Overview

Brand:Acrel	Place of Origin：China	Certificate：CE/MID
Application：Solor photovoltaic，inverter

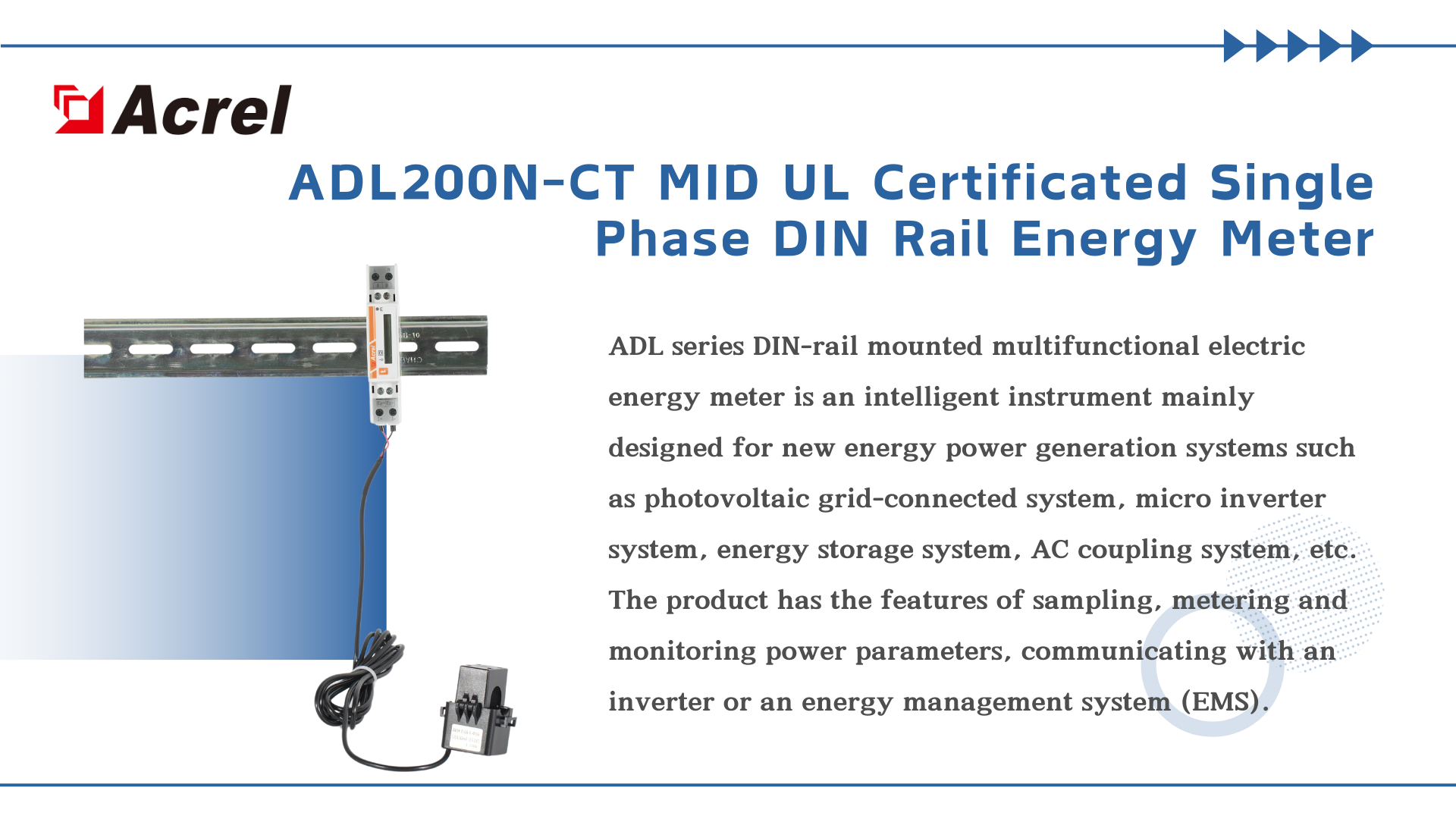

ADL200N-CT Single Phase AC Energy Meter

Product Description

Measurement

Current:

80A, 120A, 200A, 300A

Voltage:

230V

Frequency

45～65Hz

Response Rate

≤100ms

Power Consumption

＜0.2VA

Accuracy

±0.5%

Interface and Communication Protocol

RS485 interface and Modbus RTU

Display

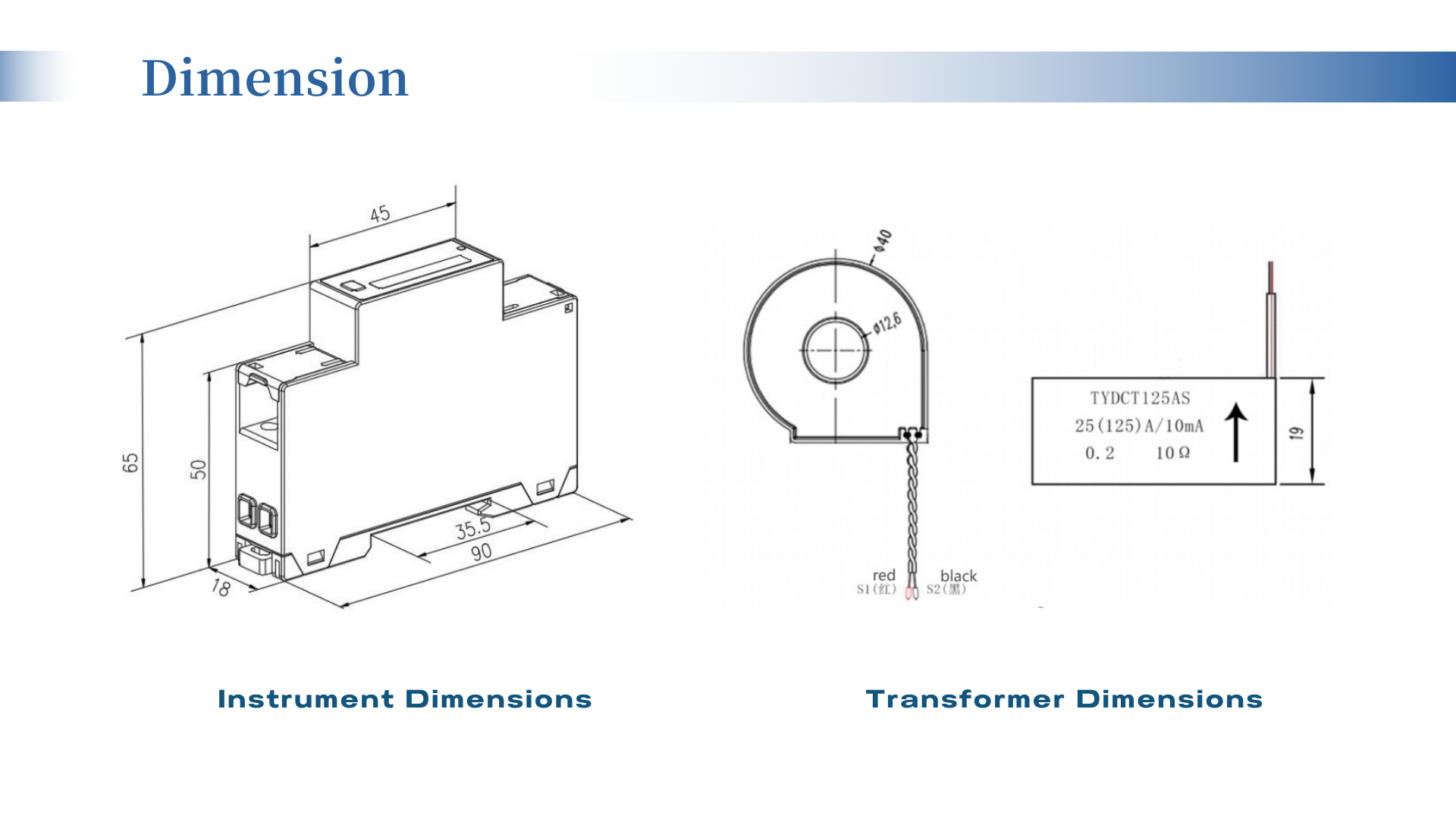

ADL200N dimension

Parameter

Wiring

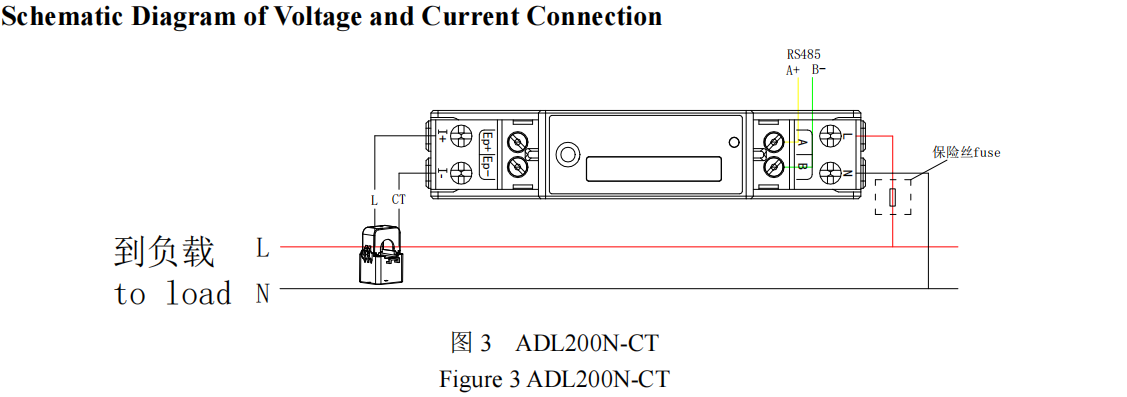

ADL200N wiring

Typical connection

ADL400N function

ADL400N iot system
