Alarm and display device for isolation mornitoring

AID150 alarm and display device is designed for visual and audible indication of alarm messages from ACREL medical intelligent insulation monitor and residual current monitor.
  • AID150
  • ACREL

Product Description

Overview
Brand:Acrel

Place of Origin:China

Standards:IEC 60364-7-710:2002

AID series and display device is a remote display and sound and light alarm device by using advanced fieldbus communications technology. Products can display the current insulation resistance,transformer load rate data and other monitoring data of AIM-M series medical intelligent insulation monitoring device real-time. Products emit sound and light alarm signal when system failure occurs. Products are classified according to the installation method and display. The device can be installed on the operaing room or information control pannel of intensive care unit, the medical staff can easily know the status of medical isolated power systems, and the type of fault when the system fails.


AID150 alarm and display device is designed for visual and audible indication of alarm messages from ACREL medical intelligent insulation monitor AIM-M10,AIM-M100,AIM-M200,and residual current monitor AIM-R100. It meets with the requirement of IEC 60364-7-710:2002.


Specifications

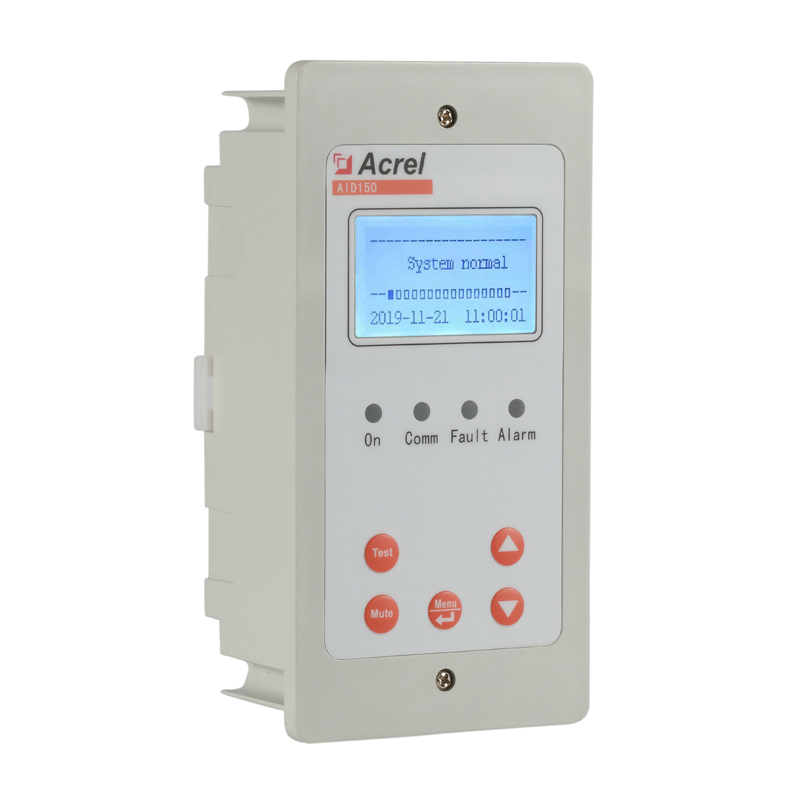

HG9A2447

AID150 Alarm And Display Device


● Remote monitoring

● LED indicators:On, Insulation, Overload, Overtemp

● Mute button

● Test button

● Auxiliary power supply: DC24V

● RS485(MODBUS-RTU)

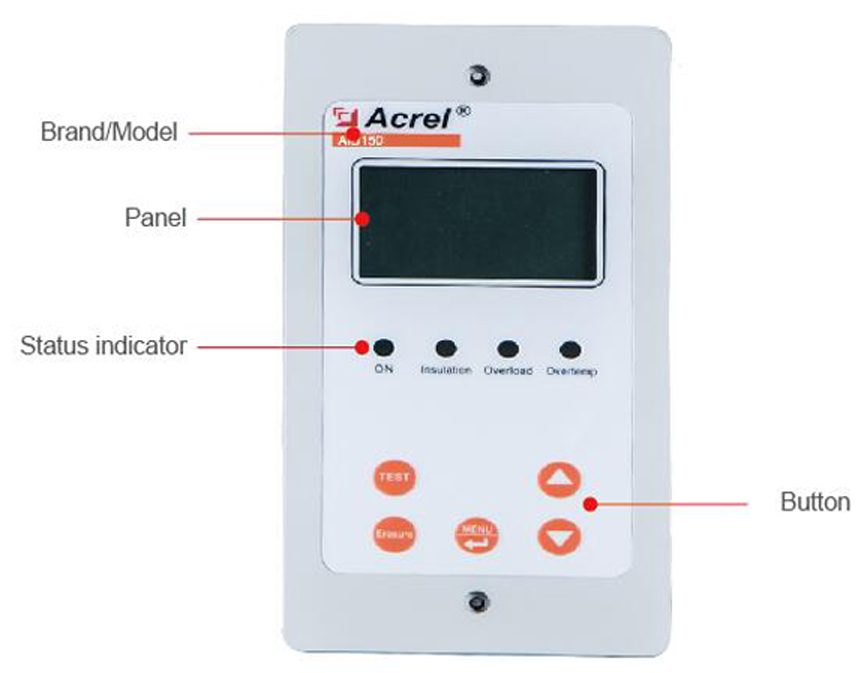

aid150 wiring

Panel display

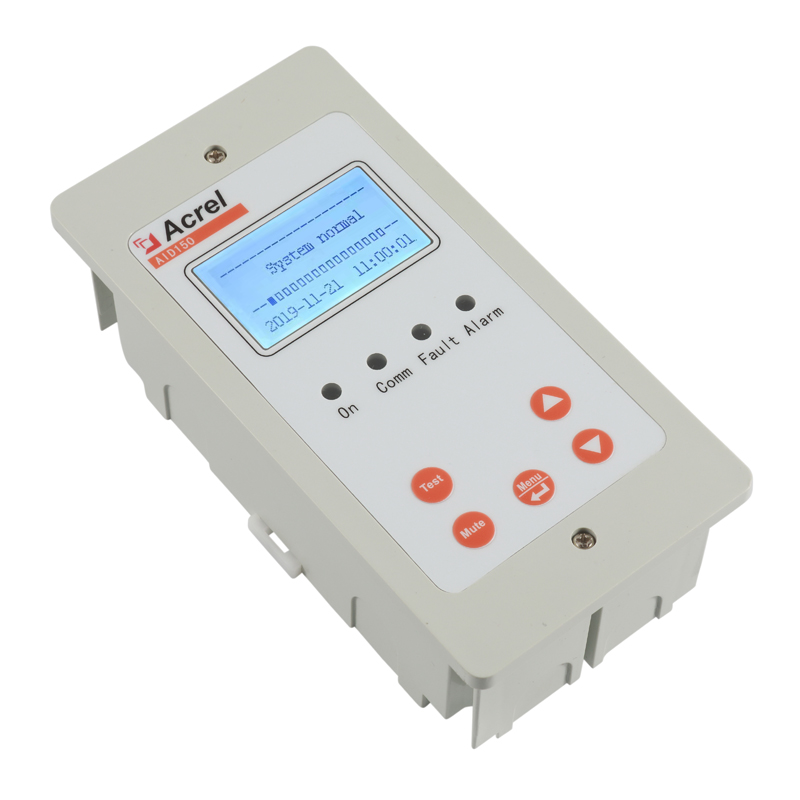

HG9A2536



Parameter

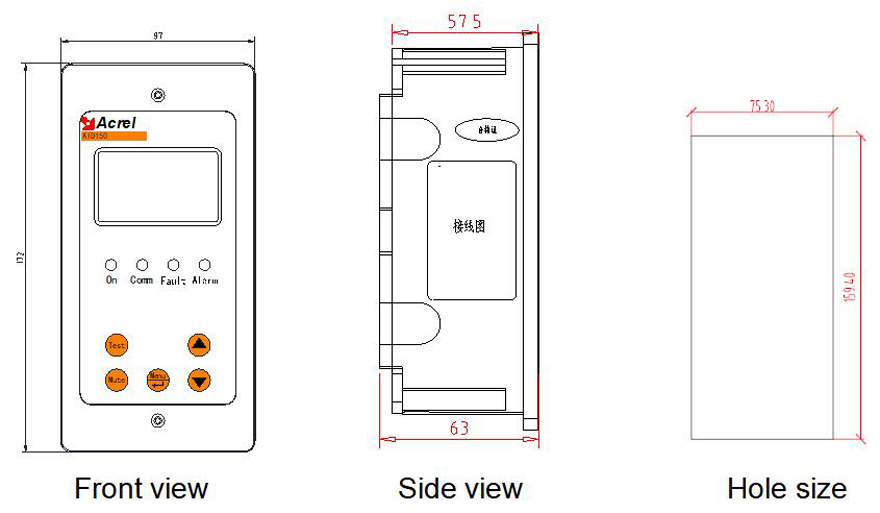

Dimension

aid150 dimension

Parameter


Power supply Voltage DC24V
Consumption ≤0.6W
Alarm range Insulation 50-999kΩ
Current 14A、18A、22A、28A、35A、45A
Temperature 0~+200℃
Alarm mode Audible and visual alarm
Alarm type Insulation fault,overload,overtemperature,device failure
Communication RS485,Modbus-RTU
Display mode LCD display,128*64 dot array
Dimension 172*87*63mm
Cut-out 159.4*75.3mm
