8 channels temperature controllor

ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It can connect to 8-channel PT100 sensor.It is suitable for temperature measurement in low voltage switch cabinet electrical contacts, transformer windings, motor windings and other occasions.It is mainly applied to temperature survey and control in thermal power plant and water power plant.
  • ARTM-8
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE


ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It can connect to 8-channel PT100 sensor.It is suitable for temperature measurement in low voltage switch cabinet electrical contacts, transformer windings, motor windings and other occasions.It is mainly applied to temperature survey and control in thermal power plant and water power plant.


Product Description

artm wiring

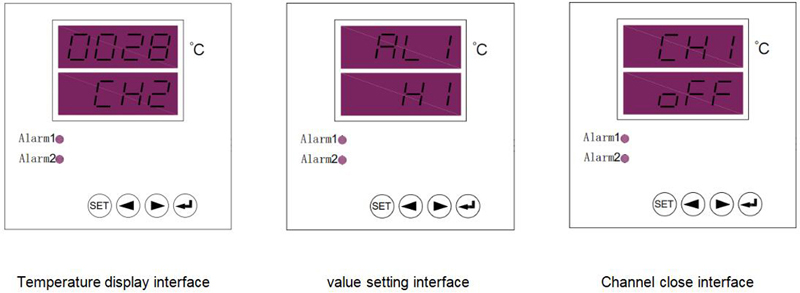

artm

ARTM-8 Multi Channel Temperature Controller

● 8 PT100 measurement;
● 2 Alarm relays;
● LED display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V;
● 1 RS485 serial communication, Modbus-RTU;

Accuracy 0.5s
Channels 8 PT100 measurement
Inputs Thermal resistance: Pt100
Output 2 Alarm relays
Output of relay Set the alarm direction and alarm value
Installation Embedded installing
Dimension(L*W*H)

Faceplate(L×W):96*96mm

Cutout(L×W):88*88mm

Housing(L×W×H):85*86*70mm

Switch relay AC250V/5A,DC30V/5A



Parameter

Parameter


Channels 8
Inputs Termal resistance:Pt100
Accuracy 0.5s
Auxiliary Power supply Voltage AC85~265V,DC100~350V
Consumption

≤2W

Alarm Channels 2 groups normally open
Capacity
AC250V/5A,DC30V/5A
Communication Protocol

Modbus-RTU

Interface
RS485
Baud rate(bps) Can choose 1200,2400,4800,9600,19200,
Isolation
2kV/1min AC effective value
Environment Temperature

Operating:-10~+55℃

Storage:-25~70℃

Humidity ≤95%(No condensation)
Altitude <2000m


typical connection
