Wireless temperature coordinator

●ATC600-C wireless temperature transceiver
●Rail (DIN35mm) installation
●Support 240 points

Download

Product Description

Overview

Brand:Acrel

Place of Origin：China

Type：Din rail

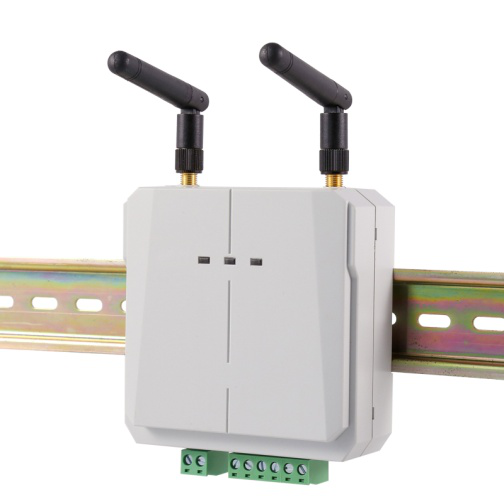

The wireless temperature coordinator connected with ATE series wireless temperature sensor ATC600 which can be mounted on rail (DIN35mm).

Product Description

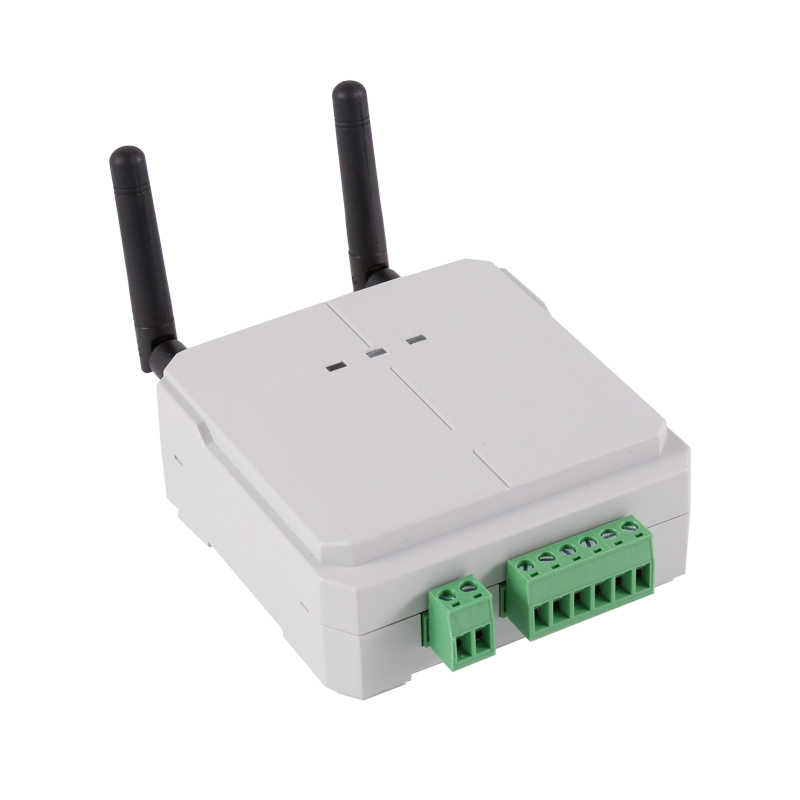

ATC600-C Wireless Temperature Transceiver

● Wireless temperature measurement;

● Measuring 240 points;

● 1 RS485 serial communication, Modbus-RTU;

● 2 alarm relays;

● Power supply adapt with AC/DC220V，AC/DC110V

Parameter

Temperature Transceiver	ATC600-C
Power source	AC/DC220V,AC/DC110V
Power consumption	≤1W
Points	≤240
Resolution	0.1℃
Communication	RS485
Protocol	Modbus-RTU
Installation	Din rail
Baud rate（bps）	2400、4800、9600、19200
Application	Joints in high or low voltage switchgears
Environment	Temperature	-20~+55℃
	Humidity	≤95%（No condensation）
	Altitude	＜2000m
	Atmospheric pressure	86kPa~106kPa
