Wireless temperature monitoring

ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ARTM-Pn

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Wiring mode:3P3W or 3P4W


ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.


Product Description

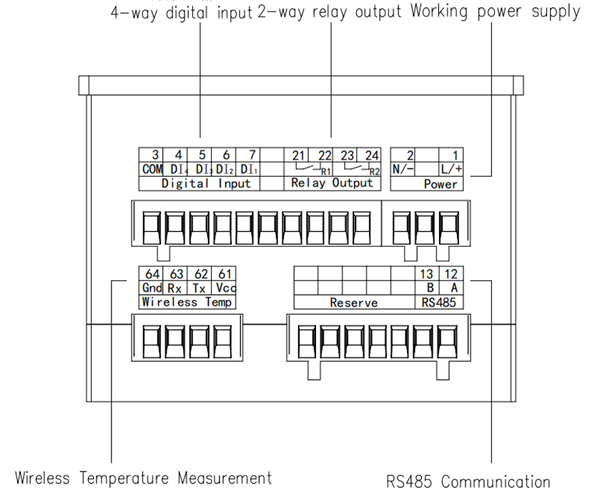

artm-p3wiring

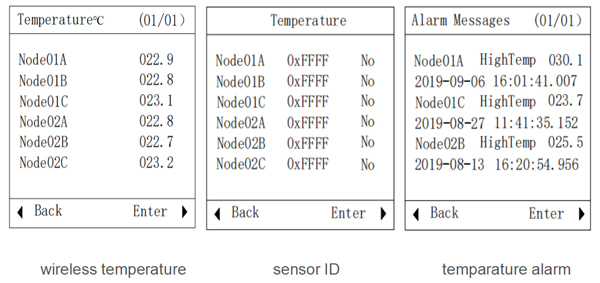

artm-P3 display

ARTM-Pn Wireless Temperature Measuring Equipment

● Wireless temperature measurement, maximum measuring 60 points;

● 4 digital inputs;

● 2 alarm relays;

● LCD display;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 1 RS485 serial communication, Modbus-RTU.

● High temperature alarm


Parameter

Parameter


Temperature sensor ATE100,ATE200,ATE400
Auxiliary Power supply Voltage AC85~265V,DC100~300V
Consumption

8W

Wireless temperature measurement Accuracy ±2℃
Sensor number
60
Communication Protocol

Modbus-RTU

Interface
RS485
Baud rate(bps) Can choose 1200,2400,4800,9600,19200,
Environment Temperature

Operating:-10~+55℃

Storage:-25~70℃

Humidity ≤95%(No condensation)
Altitude <2000m
Atmospheric pressure 86kPa~106kPa
Average work time without stoppage
≥50000 hour
