Wireless temperature transceiver

●ATC450-C wireless temperature transceiver
●Rail (DIN35mm) installation or bolt fixing
●Support 60 points
  • ATC450-C
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Type:Din rail


ATC450-C wireless temperature transceiver can adopt guide rail (DIN35mm) installation or bolt fixing.


Product Description




ATC450-C Wireless Temperature Transceiver

● Wireless temperature measurement;

● Measuring 60 points;

● 1 RS485 serial communication, Modbus-RTU;

● Power supply adapt with DC24V



Parameter

Parameter


Temperature Transceiver ATC450-C
Power source DC24V
Power consumption ≤1W
Points ≤60
Resolution 0.1℃
Communication RS485
Protocol Modbus-RTU
Installation Din rail
Baud rate(bps) 2400、4800、9600、19200
Application Joints in high or low voltage switchgears
Environment Temperature

-20~+55℃

Humidity ≤95%(No condensation)
Altitude <2000m
Atmospheric pressure 86kPa~106kPa

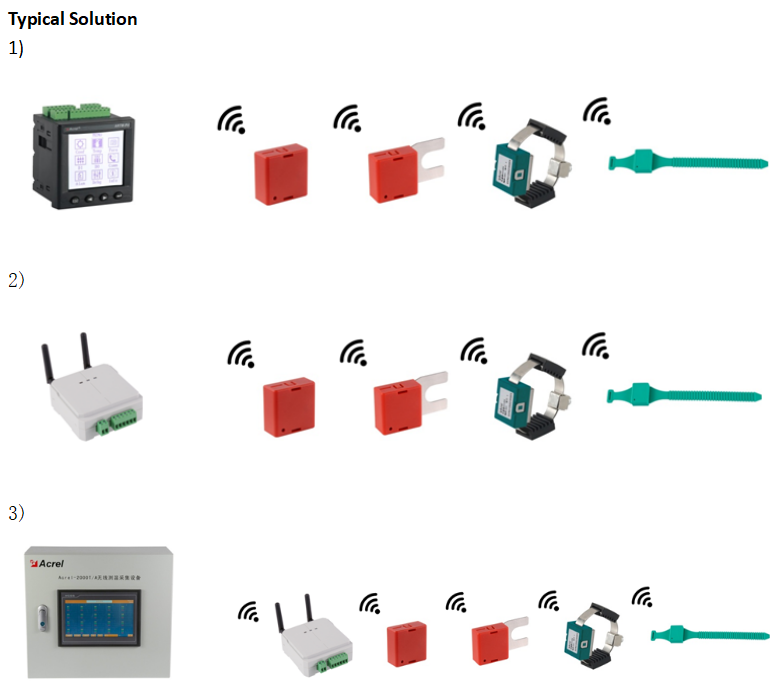

Solution


typical
