Strap-secured wireless temperature sensor

ATE200 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
  • ATE200
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Type:Strap-secured


ATE200 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.


Product Description





IMG_5378






ATE200 Wireless Temperature Sensor

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,25s;

● Battery -powered,more than 5 years;

● Widely temperature measuring range, -40℃~125℃



Parameter

Parameter


Temperature sensor ATE200
Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Battery life ≥5 years
Installation Belt
Range of temperature  -50~+125℃
Precision ±1

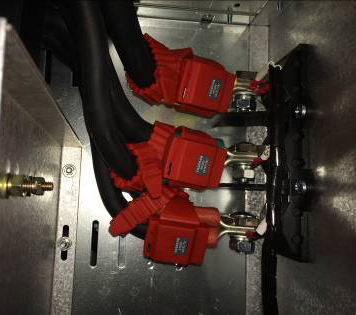

Application Joints in high or low voltage switchgears
Environment Temperature

Operating:-40~+125℃

Storage:-25~70℃

Humidity ≤95%(No condensation)
Altitude <2000m
Atmospheric pressure 86kPa~106kPa
