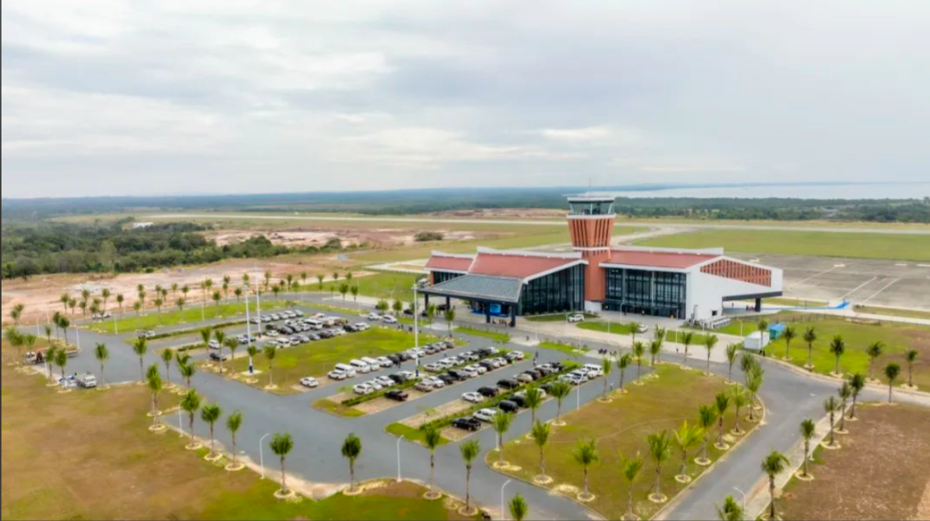

Cambodia Dara Sakor International Airport Power Center Project

1.APM810 Three Phase AC Energy Meter

for High voltage or Low voltage circuit

● True RMS Measurements

● THD with 63rd Harmonics

● K-Factor and Crest Factor

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

Read More

2.AMC96L-E4/KC Three Phase AC Energy Meter

for Power cabinet

● True RMS Measurements

● THD with 2-31st Harmonics

● Max/Min Log with Timestamp

● Internal Optional 4DI&2DO or 2DI&2DO&2AO

● Standard one Energy Pulse Output

Read More

3.ADW210

for Power cabinet

● Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh

●3×220/380V,3*380V,3*57.7/100V,3*100V

● 3×1(6)A,3×20(100)A,3×80(400)A,3×120(600)A

● Communication:RS485 or LoRa

Read More

4.ADL3000-E Three Phase AC Energy Meter

for Power cabinet

●AC3×220/380V,3×380V,3×57.7/100V，3×100V

● 3×1(6)A,3×10(80)A

●  U、I、P、Q、S、PF、kWh、kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st  Harmonics

● kWh Class 0.5S,kVarh Class 2

Read More

5.ADL400 Three Phase AC Energy Meter

for Power cabinet

●AC220V

●3×1(6)A,3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 0.5

●DIN 35 mm

Read More

6.ADL100-ET Single Phase AC Energy Meter

for Lighting cabinet

● 10（60）A，20（100）A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm

Read More

7.ADL200 Single Phase AC Energy Meter

for Lighting cabinet

●3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 1

●DIN 35 mm

Read More

8.ADL10-E Single Phase AC Energy Meter

for Lighting cabinet

● 10（60）A

● RS485，MODBUS-RTU

● LCD display

● kWh Class 1，Kvarh Class 2

● U、I、P、Q、S、PF、kWh、kvarh

● DIN 35mm

Read More

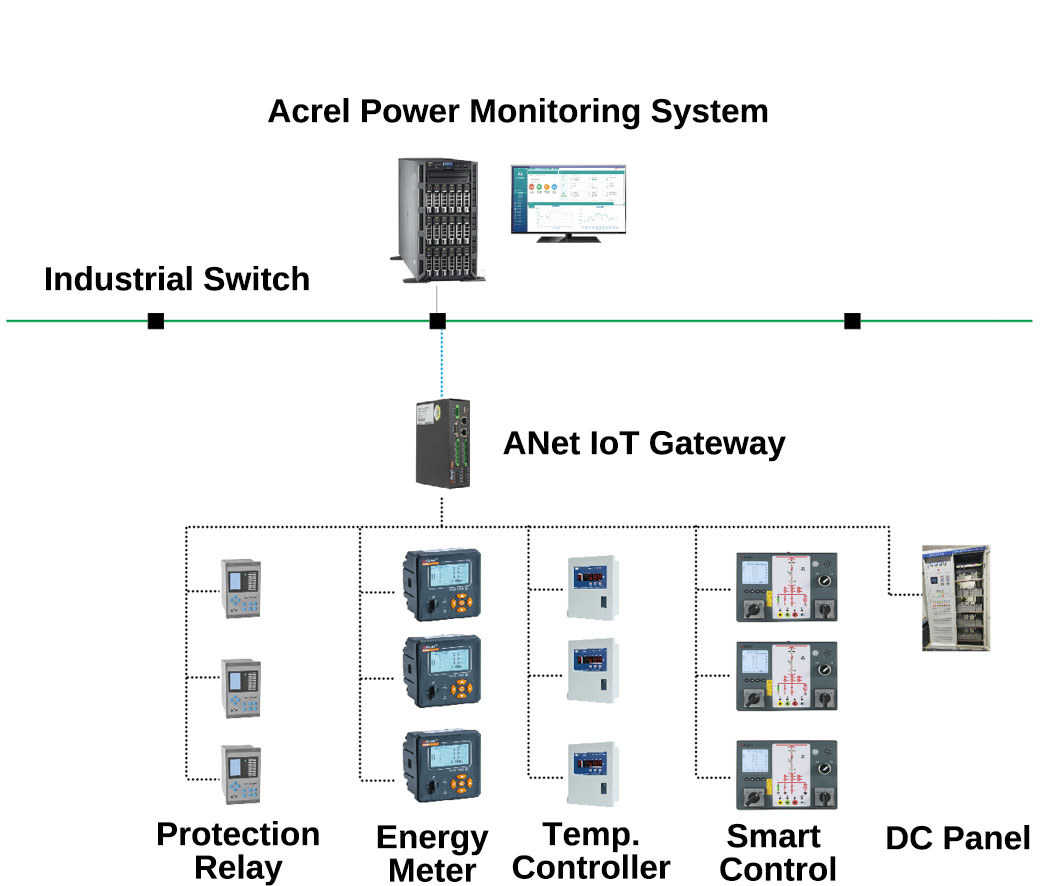

9.ANet series Gateway

● Support Modbus-RTU,Modbus-TCP,DLT645,

IEC103,CJT188 device

● Support HTTP(s) XML and JSON forwarding format

● Max 1000 data points,max 64 devices

● 1 GPRS for data transmit（2G/3G/4G) (Optional)

● Build-in SQL data base
