DC Energy meter applicated in Charging Pile manufacturer

Views:0     Author:Elena     Publish Time: 2021-09-26      Origin:Site

I Background


In recent years, in response to global warming and climate change caused by greenhouse gas emissions,many countries have focused on promoting electric vehicles to replace traditional fuel vehicles. And the construction of charging piles is very important in the promotion of new energy vehicles.Therefore, a large number of charging pile projects have emerged around the world.



II Project Overview


A Japanese charging pile manufacturer plans to use our company's DC power meters to match the company's DC charging piles. Because the Japanese market pays more attention to isolation safety, the customer choose hall sensor to connect to the DC meter rather than shunt solution,

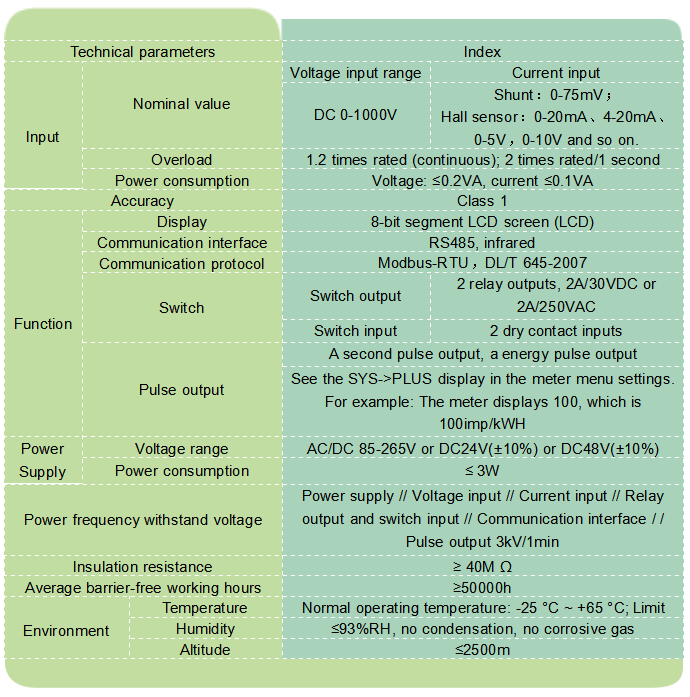

III DJSF1352-RN introduction

dc energy meter for charging pile


IV Acrel energy meters for charging pile Introduction

Item

Shape

Type

Function

Single Phase AC Energy Meter

ADL10-E

ADL10-E

Din rail mounted;

single-phase 60A, 50/60Hz input;

measurement of electrical parameters such as voltage, current, power, energy;

RS485 communication (Modbus protocol).


Read more

HG9A9449

ADL100-ET

Din rail mounted;

single-phase 60A, 50/60Hz input;

measurement of electrical parameters such as voltage, current, power, energy;

RS485 communication (Modbus protocol). energy pulse output;

optional multi tariff.


Read more

IMG_9852

ADL200

Din rail mounted;

single-phase 80A, 50/60Hz input;

measurement of electrical parameters such as voltage, current, power, energy, etc.;

RS485 communication (Modbus protocol);

energy pulse output;

optional multi tariff.


Read more

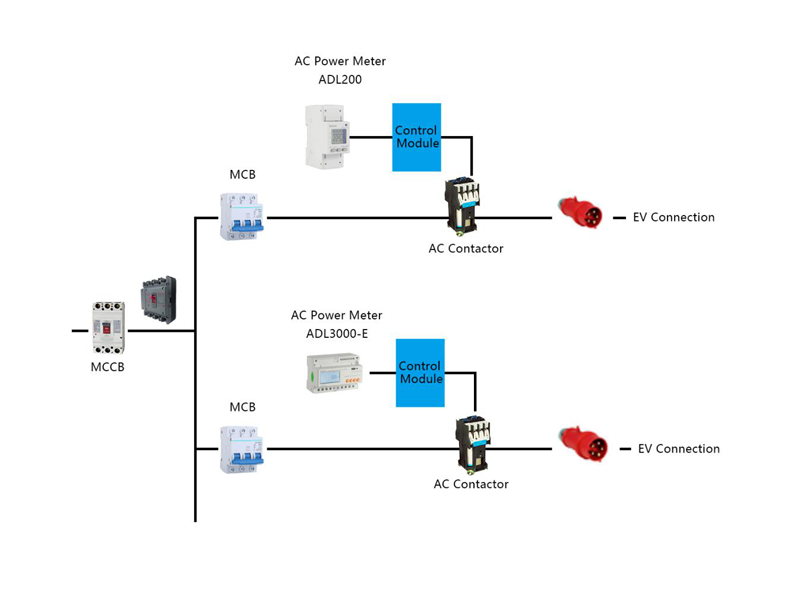

Three Phase AC Energy Meter

three phase energy meter

ADL400

Din rail mounted;

three-phase 80A, 50/60Hz input;

measurement of electrical parameters such as voltage, current, power, energy;

RS485 communication (Modbus protocol);

energy pulse output;

optional multi tariff.


Read more

HG9A9448

ADL3000-E

Din rail mounted;

three-phase 80A, 50/60Hz input;

measurement of electrical parameters such as voltage, current, power, energy;

RS485 communication (Modbus protocol);

energy pulse output;

optional multi tariff.


Read more

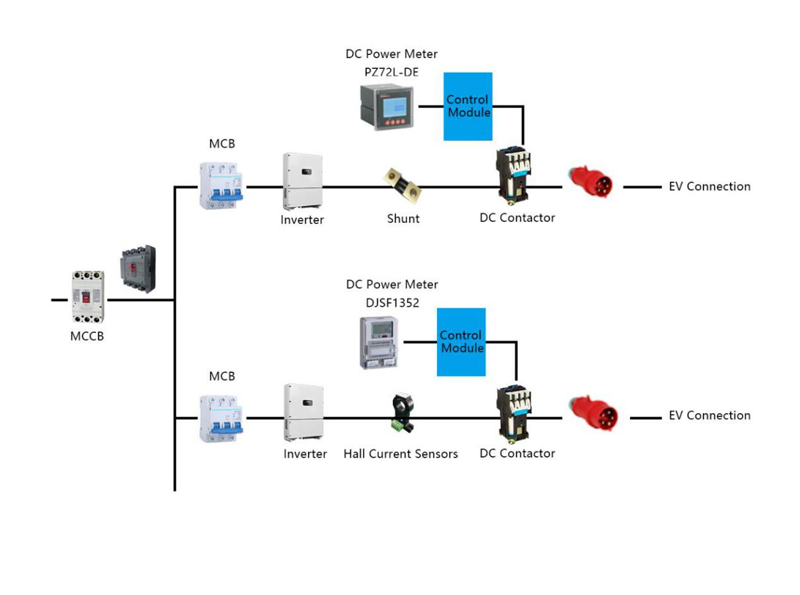

DC Energy Meter

HG9A9409

PZ72(L)-DE

Panel mounted, measure DC voltage, current, power;

measure DC energy;

direct connect voltage 0-1000V;

current measurement support 75mV output of shunt, support 0-5V, 0-20mA output of hall;

RS485(Modbus protocol)


Read more

DJSF1352正面

DJSF1352

Wall mounted, measure DC voltage, current, power;

measure DC energy;

direct connect voltage 0-1000V;

current measurement supports 75mV output of shunt, supports 0-5V, 0-20mA output of hall;

RS485(Modbus protocol)


Read more

HG9A9349

DJSF1352-RN

Din-rail mounted, support optional two-channel DC voltage, current, power measurement;

measure DC energy;

direct connect voltage 0-1000V;

current measurement support shunt 75mV output, support Hall sensor 0-5V, 0-20mA output;

RS485 communication (Modbus protocol)


Read more

Shunt

分流器

AFL-T

Common Specification: 300A/75mV

Hall Sensor

hall combination chart

AHKC

Common Specification: 1000A/5V


Read more


V Structure
