ABAT100-HS Battery Online Monitoring Collector Module

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life.


Availability:



Inquire Add to Basket

Model:
ABAT100-HS
Brand:
ACREL

Download

ABAT100 Series Battery Online Monitoring System Specification.pdf

ABAT100 Series Battery Management System(Touch Screen) Specification.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Application：Battery monitoring

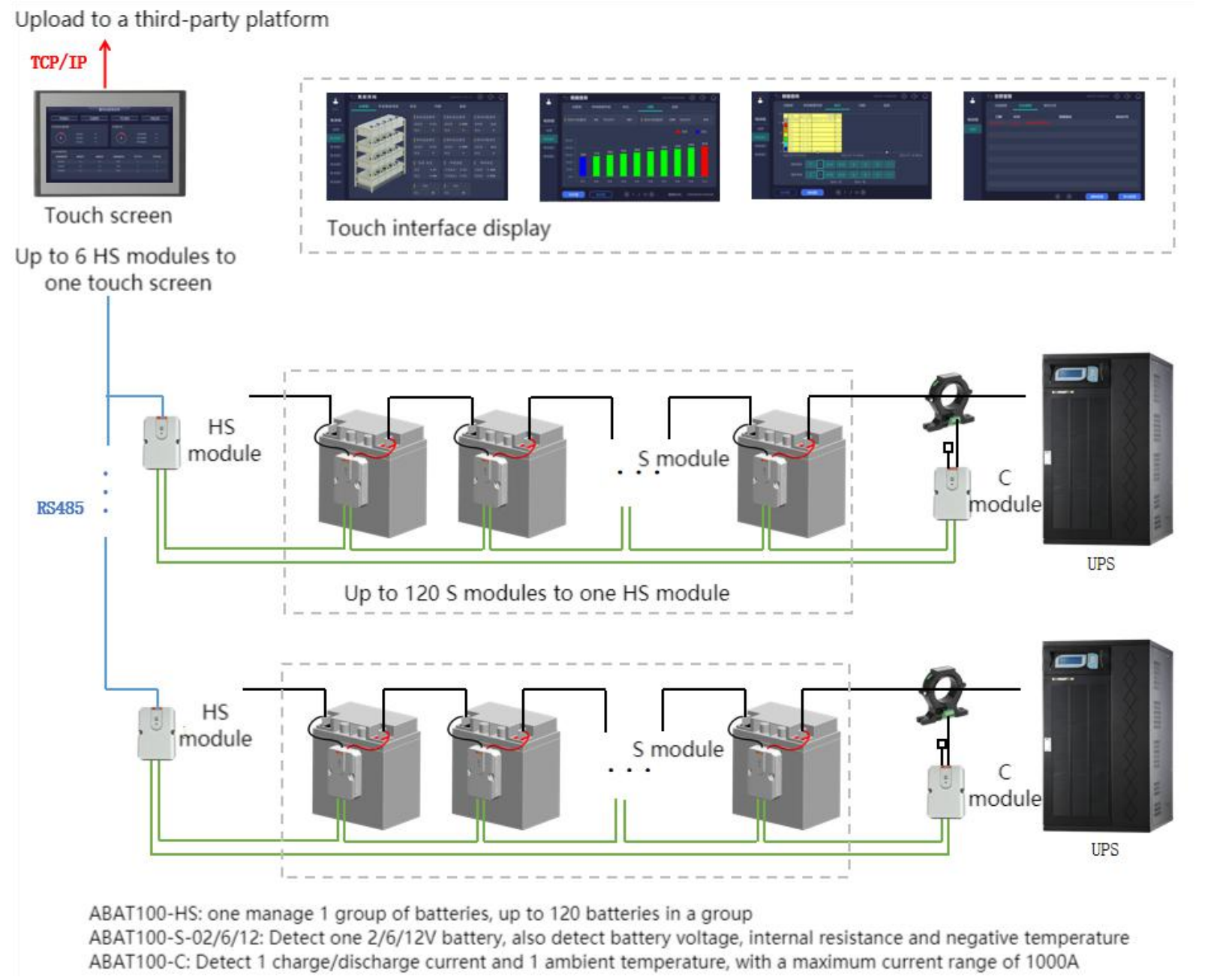

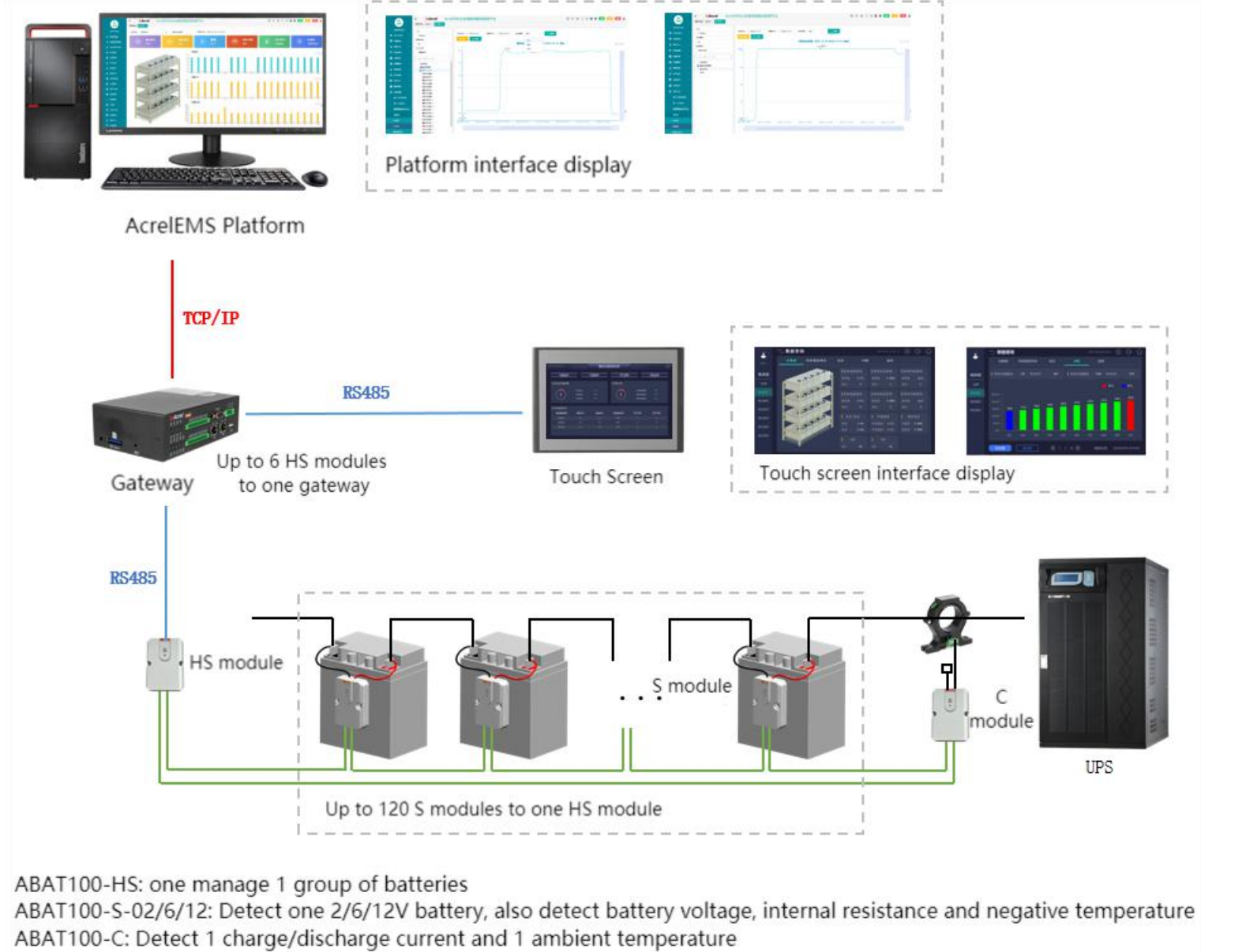

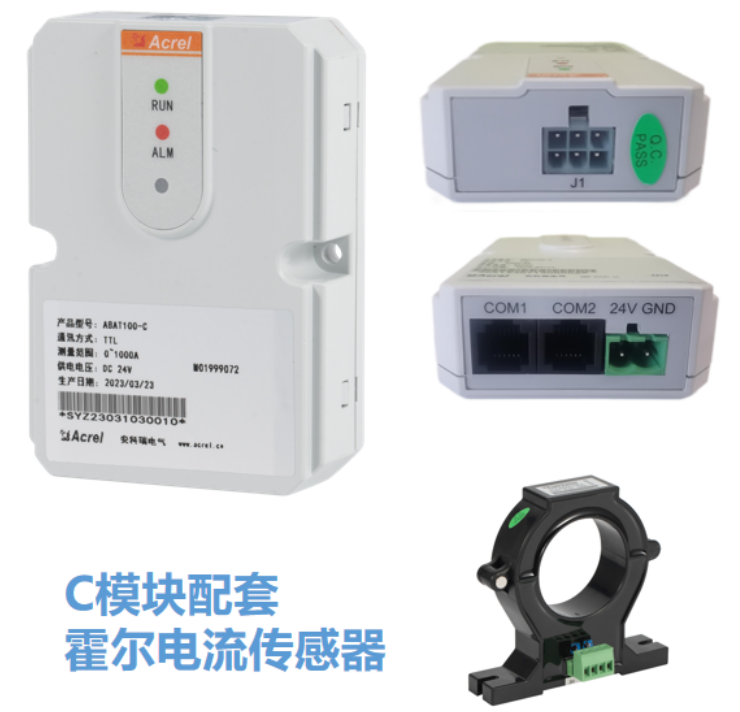

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.

Product Description

The ABAT100-HS collector module is used as a management module for a group of battery packs to read the battery monitoring data from the front-end single battery monitoring sub-module and analyze and process the data, which can estimate the remaining capacity of each battery and the whole group of batteries. The operation parameters can be set directly by matching with the touch screen, and the collected data can be viewed directly. The collector module will automatically save the key battery data periodically and can be sent to the third party monitoring system through RS485 port, supporting MODBUS protocol. One collector module manages one group of batteries, and the maximum number of manageable modules is 120.

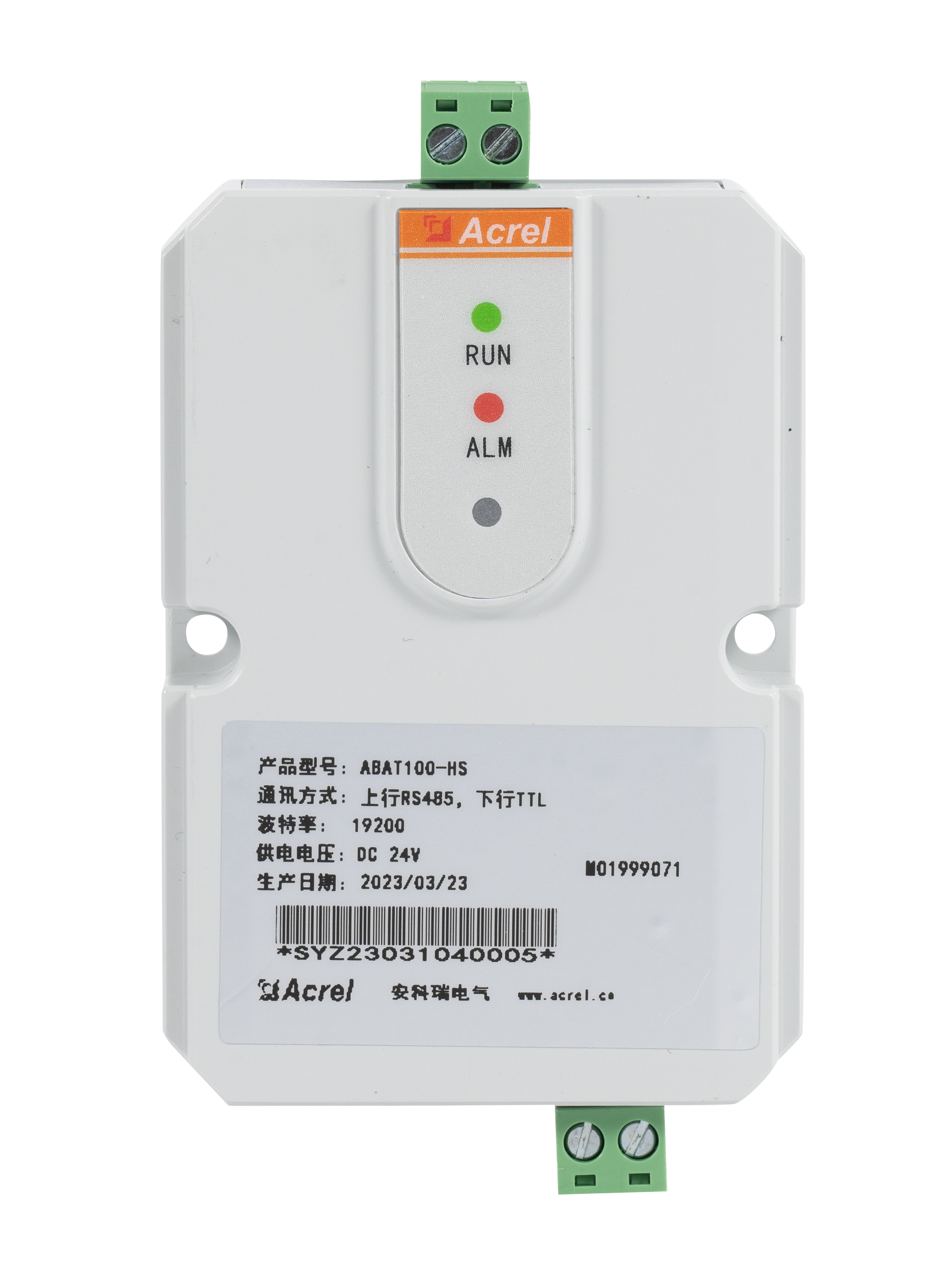

ABAT100-HS collector module

ABAT100-HS Collector Module

DC24V input

One to manage a group of batteries

Up to 120 batteries in a group

RS485 port, supporting MODBUS protocol

Display

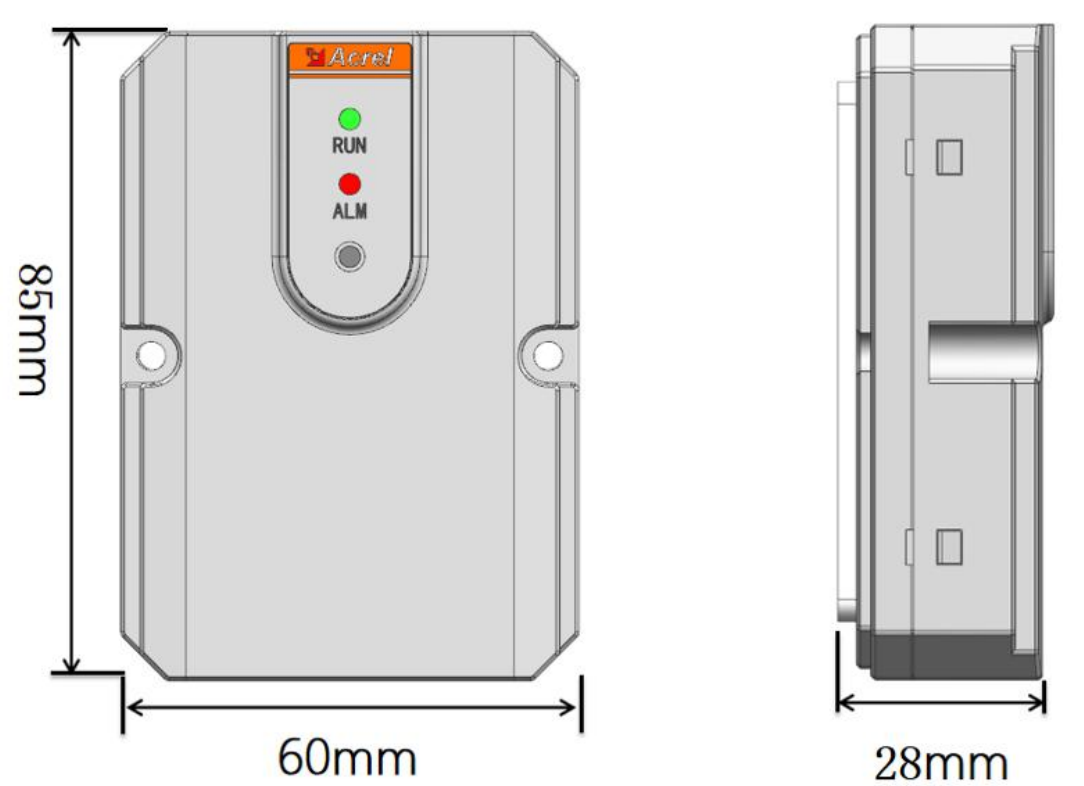

dimension

Parameter

Function	Description
Display	Real-time data display, graphs, histogram display
Historical Data	Query and export of equipment operation history, charging and discharging records and monitoring events
Parameter Configuration	Provide basic information management functions
Communication protocol	MODBUS-RTU
Alarm mode	Local audible and visual alarm, indicator alarm, SMS alarm, etc.
Capacity estimation	Group batteries SOC, SOH estimation; single battery SOC, SOH estimation
Regular inspection	Intelligent judgment of the current state and automatic issuance of test commands
Indicator light	Red and green LED lights, green light as the power light, red light as the indicator light

Technical parameters	Description
Working Environment	Operating temperature: -10℃～50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa
Management Capability	One collector can monitor a maximum of total 120 batteries
Alarm Type	Group voltage overcharge/discharge, single voltage overcharge/discharge, current overcharge/discharge, high internal resistance of single unit, abnormal communication, etc.
Power Supply	DC24V
Protection	With overvoltage and short circuit protection
Communication Interface	With RS485 communication port, support MODBUS/RTU
Insulation withstand voltage	2000VAC
Installation method	Tie-down mounting or adhesive mounting
Weight	90g
