ADW300-HJ-D10 Wireless CT Energy Meter

● Measurement: three phase voltage,current,power,power factor,etc.

● Communication:RS485,LoRa,NB,2G,4G,WiFi

● Max demand

● Accuracy:Class 1

Download

Product Description

Overview

Brand:Acrel	Place of Origin：China	Certificate：CE
Application：IOT system

ADW300-HJ three phase wireless energy meter

ADW300-HJ wireless meter is mainly used to measure three phase active power in low voltage network.

● Measurement: three phase voltage,current,power,power factor,etc.

● Communication:RS485,RS485,LoRa,NB,2G,4G,WiFi

● Max demand

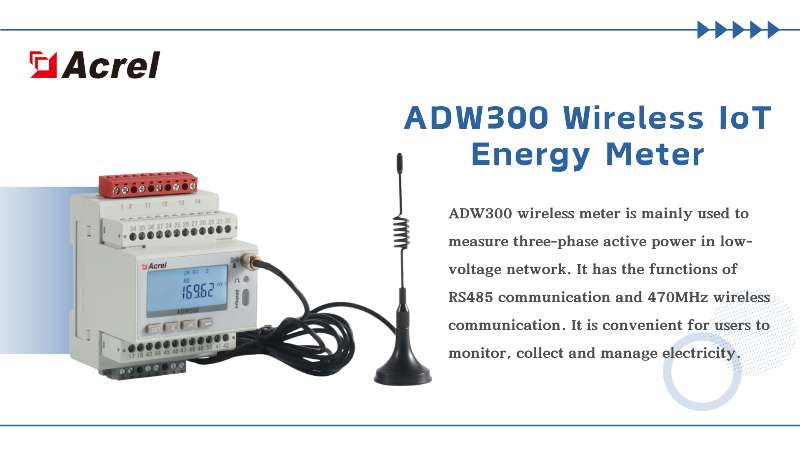

ADW300 wireless power meter

Product Description

Rated U and I

3*57.7/100V，3*220/380V，3*380V/660V，3*100V，3*380V，3*660V

Accuracy

Active energy:Class 0.5S

Reactive energy:Class 2

Frequency

Range:50-60Hz

Pulse output

Contant:6400imp/kWh

Consumption

＜10VA（Single phase）

Dimension（L*W*H）

72*87.8*71.5mm

Wireless

Transmission on 470MHz and maximum distance in open space is 1km;2G;NB；GPRS

Starting current

2%In

Display

LCD

Display

wireless meter wiring

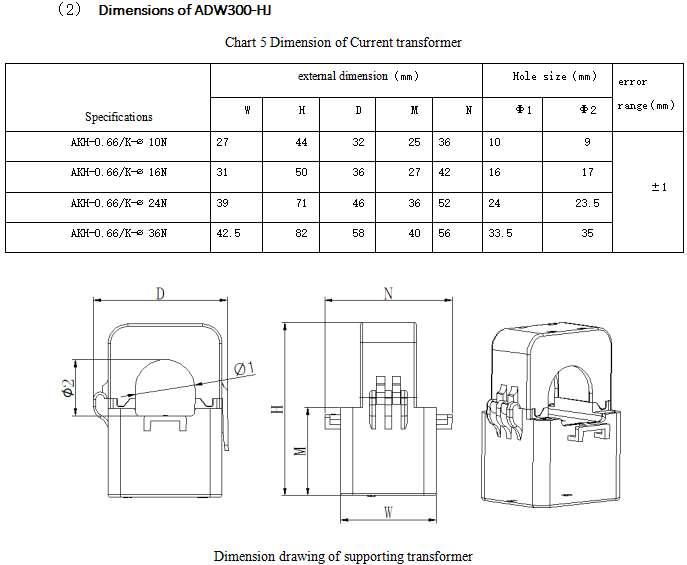

ADW300-HJ CT datasheet

Parameter

Auxiliary power		AC/DC 85~265V, DC12V，DC24V
Input voltage	Nominal Voltage	357.7/100V，3220/380V，3380V/660V，3100V，3380V，3660V
	Consumption	＜0.5VA
	Frequency	50-60Hz
Input current	Maximum current	ADW300-HJ：3×1.5(6)A（D10）、3×20(100)A（D16）、3×80(400)A （D24）、 3×120(600)A（D36）
	Starting current	0.002A
	Consumption	＜1VA
	Accuracy	Class 0.5S
	Temperature accuracy	±2℃
Communication		Infrared
		RS485（Modbus-RTU）（Optional：C）
		470MHz wireless transmission（Optional：LoRaWAN）
		GPRS communication（Optional：4G）
		WiFi communication（Optional：WF）
Pulse	Width	80±20ms
Pulse	Constant	6400imp/kWh, 400imp/kWh
Outline	LWH（mm）	7271.592.6mm
Temperature	Operating	-25~55℃
Temperature	Storing	-40~70℃
Humidity		＜95%（No condensation）
Altitude		＜2000m
