ADW600 Multi Channel Energy Meter

● Measurement: three phase voltage,current,power,power factor,harmonic,etc.
● Communication:RS485(Modbus-RTU), 4G, Ethernrt, WiFi
● Maximum 12 channels
● Accuracy:Class 0.5


Availability:



Inquire Add to Basket

Model:
ADW600
Brand:
ACREL

Product Description

Overview

Brand:Acrel	Place of Origin：China	Certificate：CE
Application：IOT system

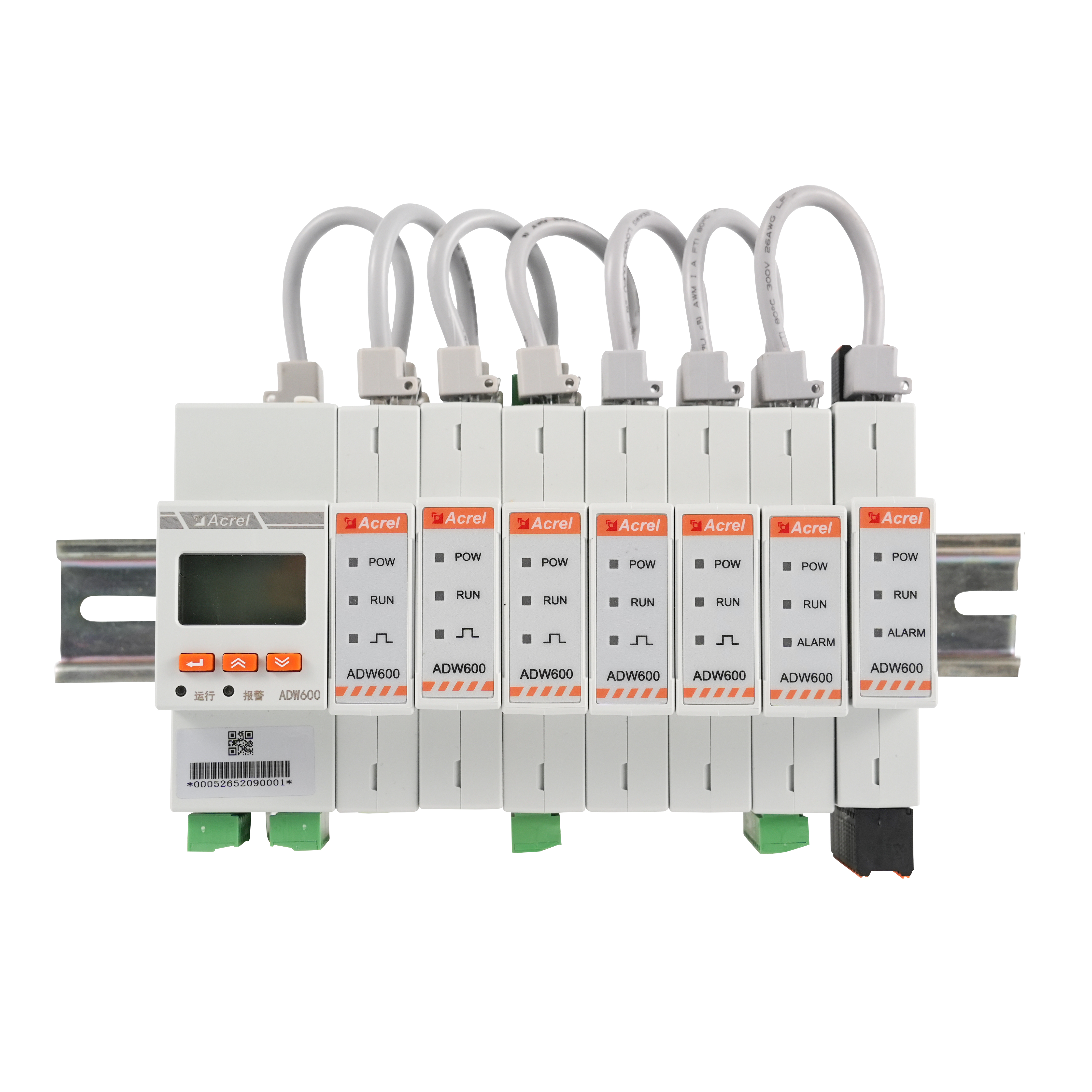

The ADW600 series meters are divided into the ADW600 series smart gateway and the ADW600 multi-circuit metering module. They are primarily used for metering three-phase active energy in low-voltage networks and feature small size, easy installation, and rich functionality. The products adopt a modular design, including the gateway body, voltage module, current module, switch module, temperature and leakage current measurement module, etc. Modules are connected via network cables and can support multi-circuit splicing. They are suitable for multi-circuit metering scenarios on the low-voltage side, especially for power system upgrades.

Product Description

ADW600-U Module

Voltage measurement and sampling

ADW600-I Module

Active energy metering (forward and reverse), four-quadrant reactive energy metering

Voltage, current, power factor, frequency, active power, reactive power, apparent power

Total harmonic content, harmonic content (2nd to 31st)

Active pulse output

ADW600-K Module

4DI, 2DO

ADW600-K Module

12-channel temperature measurement, 4-channel residual current measurement

ADW600-M/CE Module

It can connect up to 12 circuits; it can view real-time data such as voltage, current, power, energy, temperature, and leakage current of each circuit; it can view the fault, alarm, and on/off status of each circuit; it can set and control parameters for each circuit; it features DIN rail mounting, LCD display; event logging; RS485 communication; and Ethernet communication.

ADW600-M/4G Module

It can connect up to 12 circuits; it can view real-time data such as voltage, current, power, energy, temperature, and leakage current of each circuit; it can view the fault, alarm, and on/off status of each circuit; it can set and control parameters for each circuit; it features DIN rail mounting, LCD display; event logging; RS485 communication; and 4G network communication.

ADW600-M/WF Module

It can connect up to 12 circuits; it can view real-time data such as voltage, current, power, energy, temperature, and leakage current of each circuit; it can view the fault, alarm, and on/off status of each circuit; it can set and control parameters for each circuit; it features DIN rail mounting, LCD display; event logging; RS485 communication; and WiFi network communication.

Display

ADW600 2

ADW600 display

ADW600 display 1

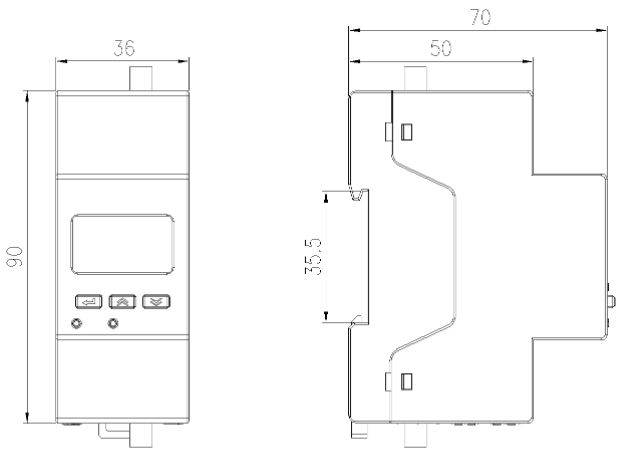

Dimension drawing of ADW600 series intelligent gateway

ADW600 display 2

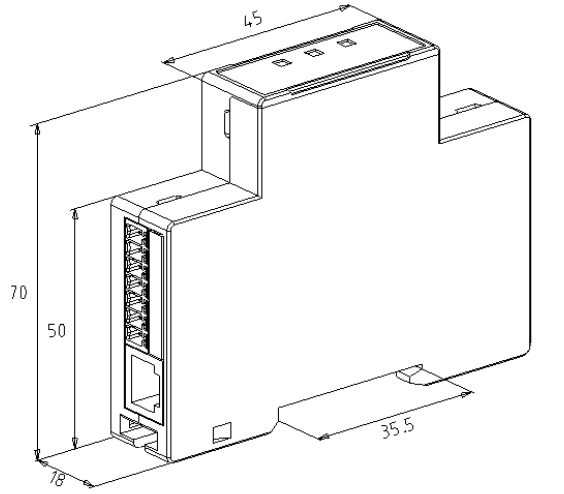

Dimension drawing of ADW600 multi-loop metering module

Remarks: When connecting the network cables between different modules, it is necessary to pay attention to the fact that BUS-IN is the incoming interface and BUS-OUT is the outgoing interface, and connect them sequentially from ADW600 series intelligent gateway or power supply module, and the connection cannot be reversed.

Parameter

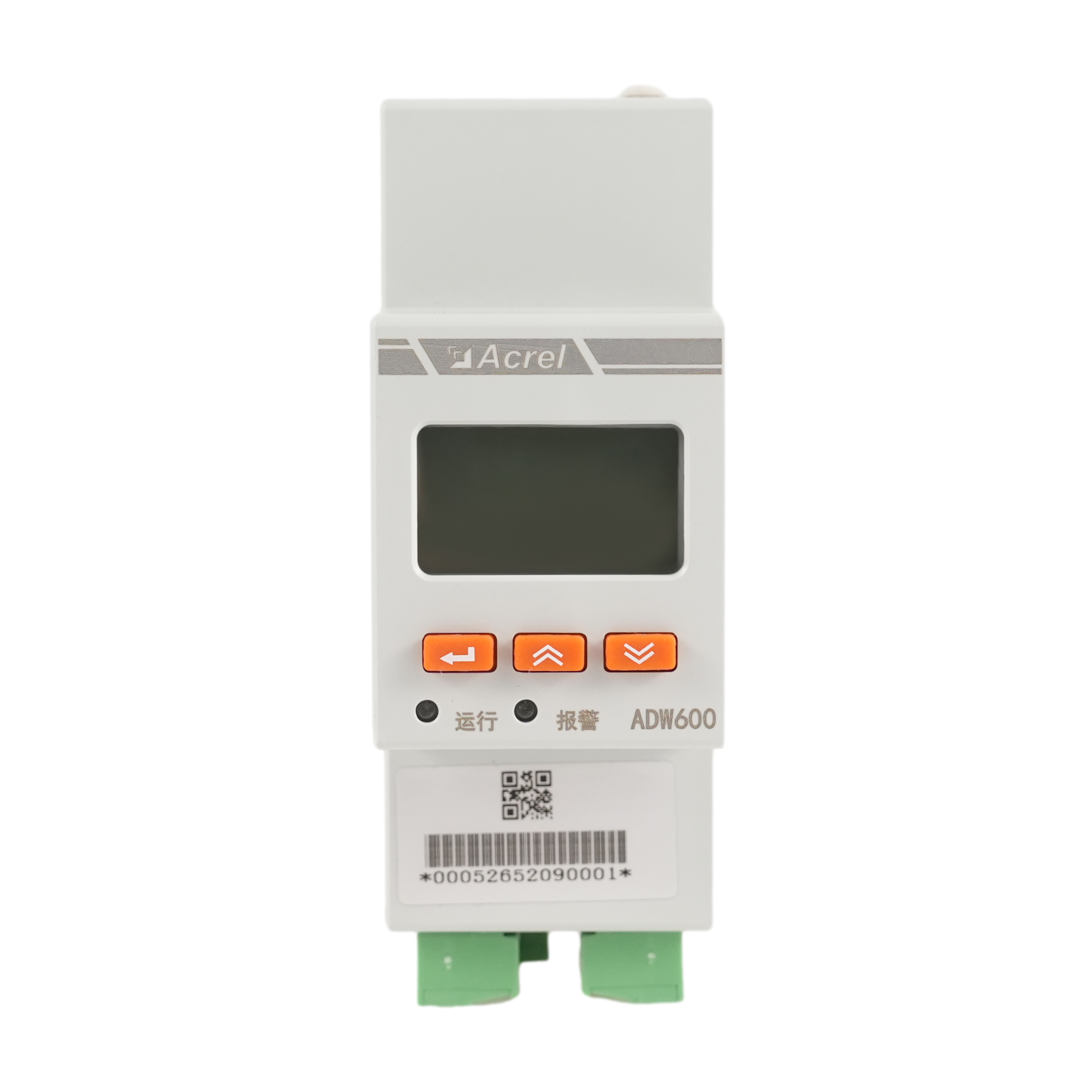

ADW600 series intelligent gateway

Module	ADW600-M/4G	ADW600-M/CE	ADW600-M/WF
Working power supply	AC 220V
Power consumption	≤30W
Communication	4G	Ethernet	WiFi
Display	LCD dot matrix liquid crystal display
Event record	The maximum number of alarms, faults, and action logs is 20 each.
Protocol	Modbus, MQTT, etc.
Altitude requirement	≤2000m
Environment temperature	-25 °C-55 °C, 24h average temperature is not higher than 35 °C.
Environmental requirement	No explosion hazard, no conductive dust, no enough to corrode metals and damage insulation, and no obvious vibration.
Relative humidity	At+40 C, the relative humidity of air is 50%, and it can be higher at lower temperature.
Storage temperature	-40°C-70°C
Protection level	IP20
Installation mode	Standard 35mm guide rail installation

ADW600 multi-loop metering module

ADW600-U	Rated voltage	3×57.7/100V，3×220/380V，3×100V, 3×380V
	Voltage accuracy	0.5%
	Referencefrequency	45-65Hz
	Power consumption	< 0.5VA per phase

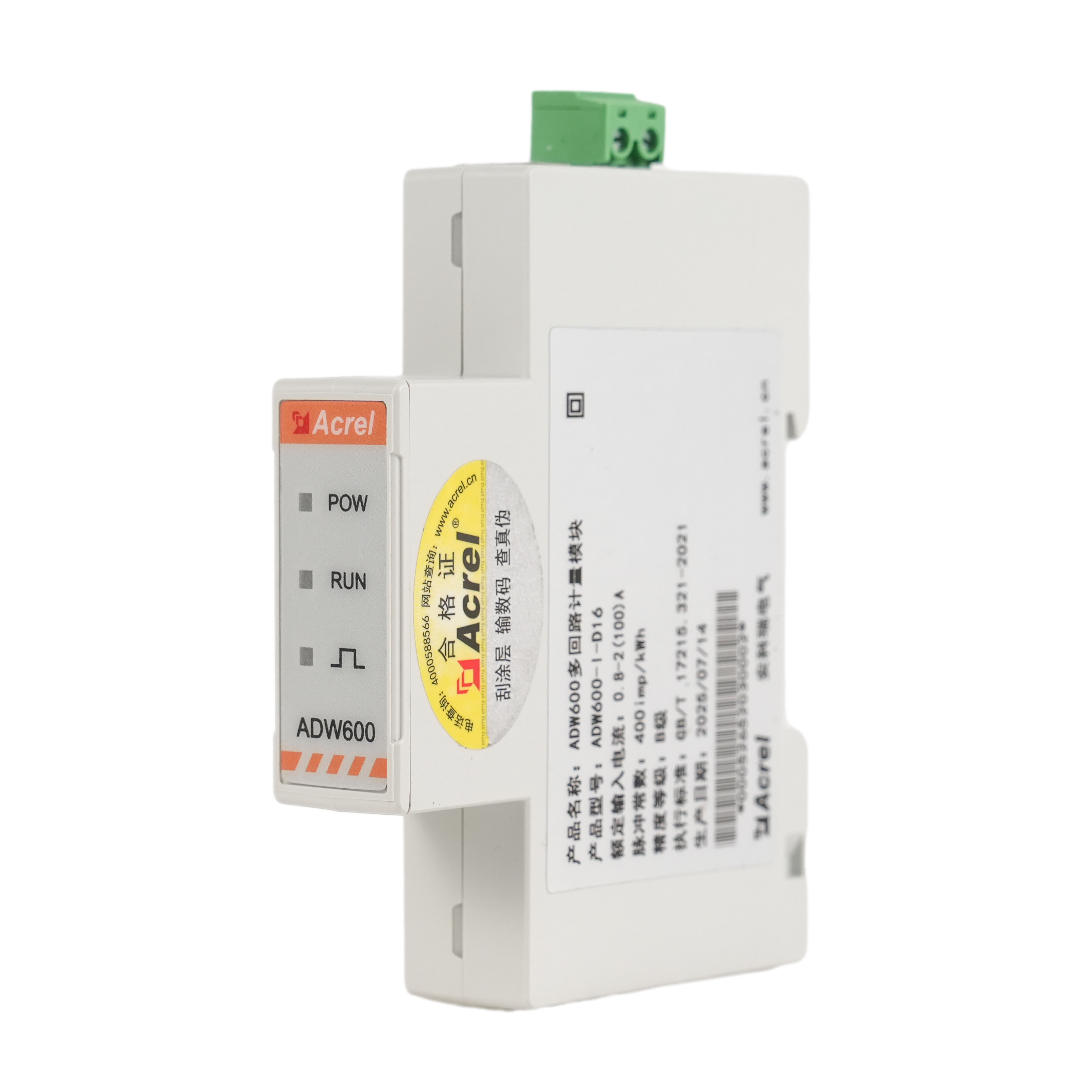

ADW600-I	Input Current	D10：0.03-0.15(6)A，D16：0.8-2(100)A，D24：3.2-8(400)A，D36：4.8-12(600)A
	Active power accuracy	Class B
	Energy pulse width	80±20ms
	Active pulse constant	D10：6400imp/kWh，D16：400imp/kWh，D24：100imp/kWh，D36：60imp/kW
	Power consumption	< 0.5VA per phase
ADW600-K	Switch input	4 passive inputs with built-in DC12V power supply
ADW600-K	Switch output	2 passive outputs, capacity AC230V/DC30V, 3A

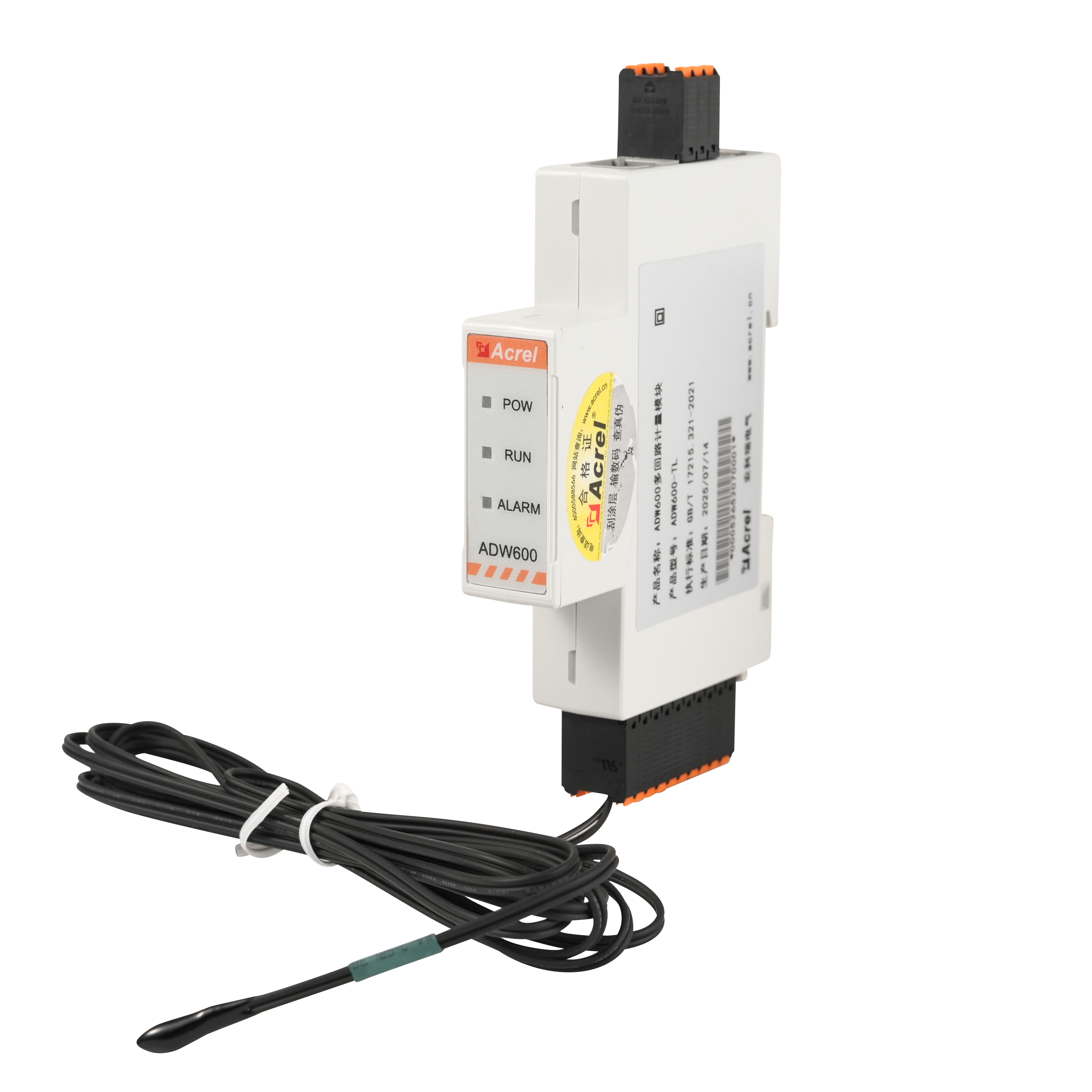

ADW600-TL	Temperature measurement	12 channels of temperature measurement with an accuracy of ±2°C, with 12 temperature measuring wires as standard.
ADW600-TL	Residual current measurement	4 channels of residual current measurement, the maximum input is 1mA, and the accuracy is 1%. The residual current transformer needs to be purchased separately.

Typical connection

wireless meter connection

Optional module

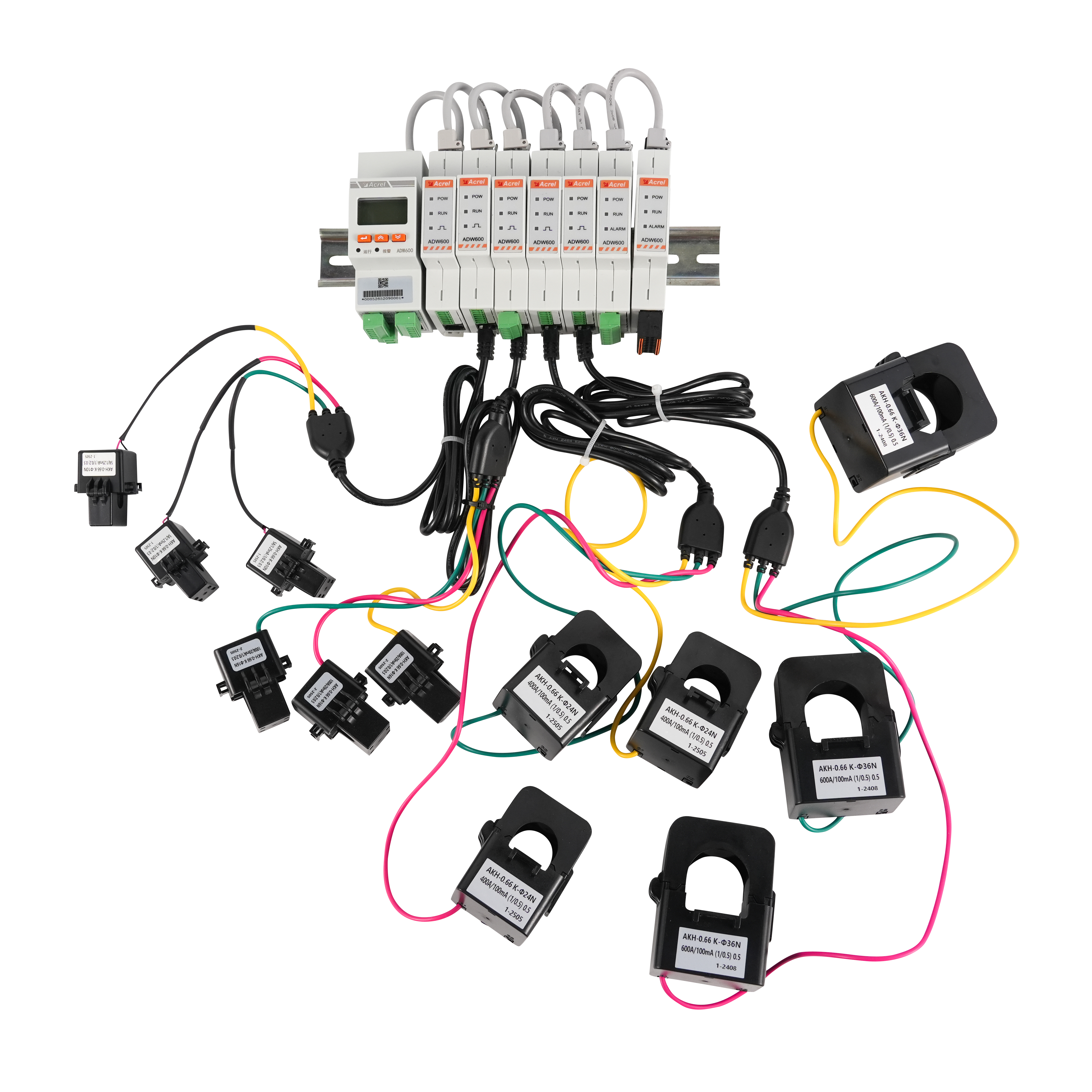

ADW600-I Matching Current Transformer Specifications and Dimensions

Specifications and models	Overall dimension (mm)					Hole size(mm)		Tolerance (mm)
Specifications and models	W	H	D	M	N	Φ1	Φ2	Tolerance (mm)
D10:AKH-0.66/K-Φ 10N	27	44	32	25	36	10	9	±1
D16:AKH-0.66/K-Φ 16N	31	50	36	27	42	16	17
D24:AKH-0.66/K-Φ 24N	39	71	46	36	52	24	23.5
D36:AKH-0.66/K-Φ 36N	42.5	82	58	40	56	33.5	35
