ABAT100-S Single Battery Monitoring Module

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life.


Availability:



Inquire Add to Basket

Model:
ABAT100-S
Brand:
ACREL

Download

ABAT100 Series Battery Online Monitoring System Specification.pdf

ABAT100 Series Battery Management System(Touch Screen) Specification.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Application：Battery monitoring

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.

Product Description

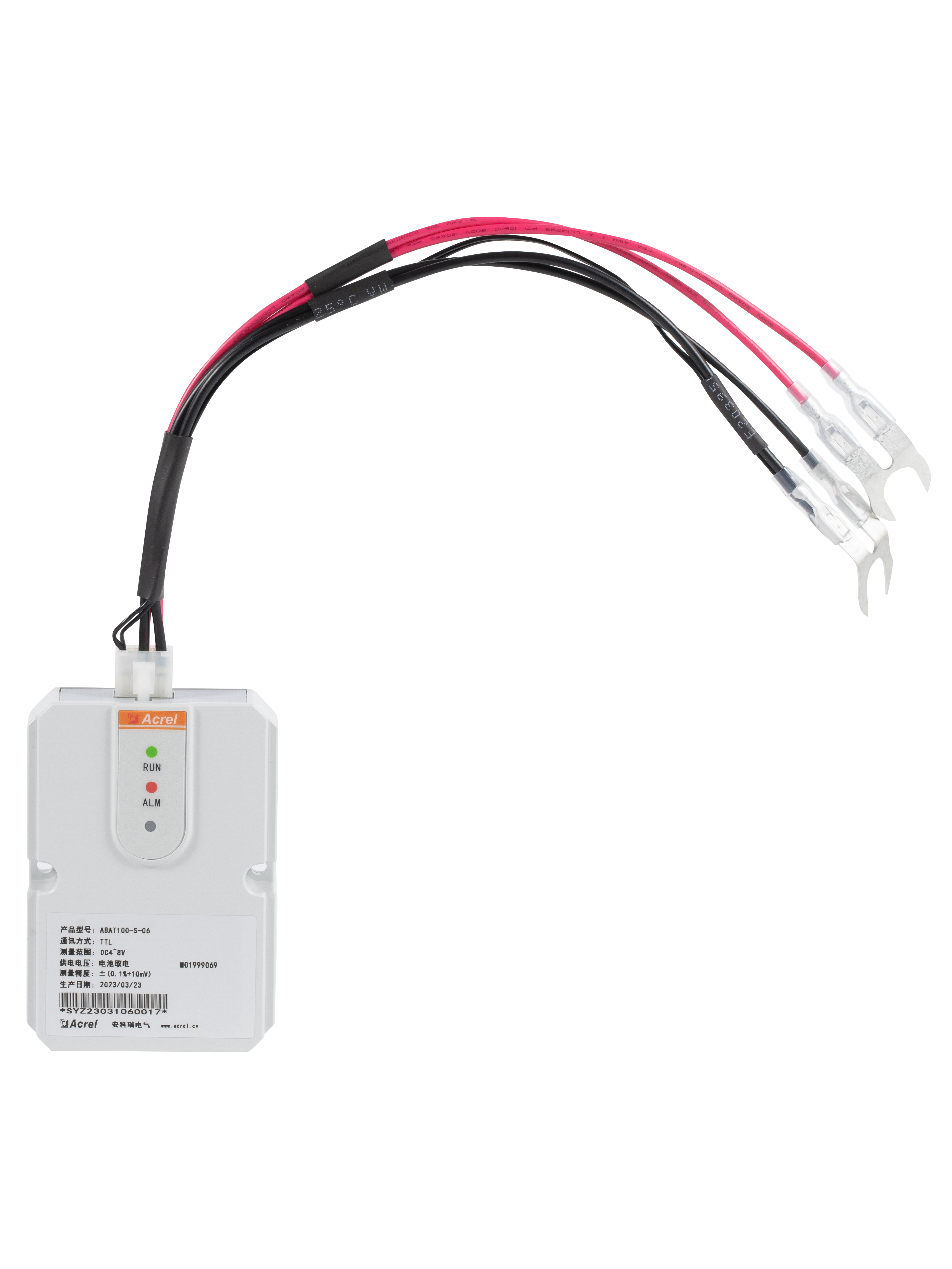

ABAT100-S single battery monitoring module (S module) can be embedded into existing monitoring system to achieve online monitoring of each backup battery voltage, internal resistance and negative battery temperature, in accordance with ANSI/TIA-942 standard requirements. The monitoring system controls and reads data by sending MODBUS commands to the S-module, and performs internal resistance testing, each S-module has a settable address. S-modules are extremely simple and easy to install and wire, and can be directly attached to the battery with detachable connecting wires, which does not affect the battery operation during construction.

ABAT100-S-02

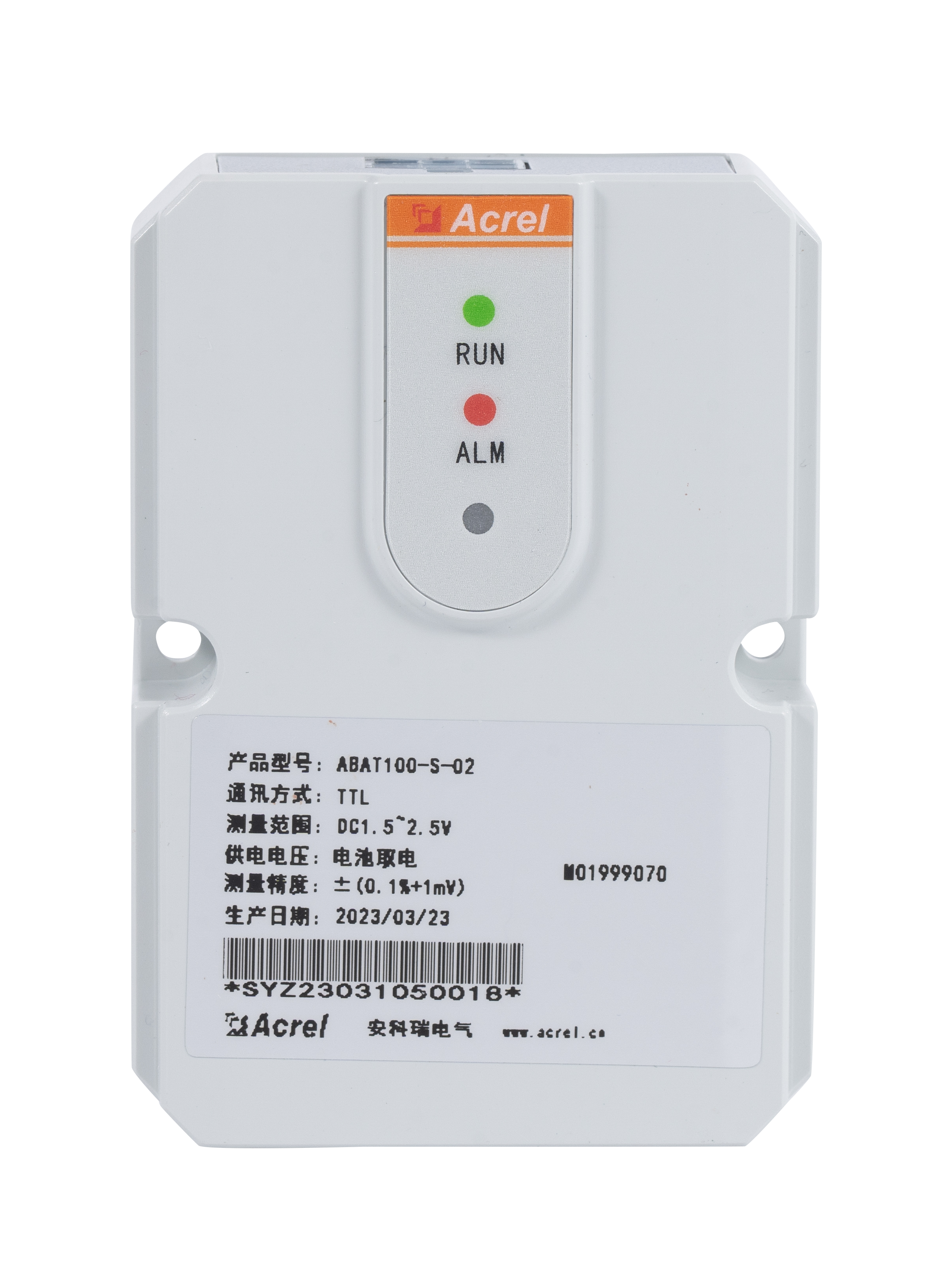

ABAT100-S-02 Single Battery Monitoring Module

Monitor one 2V battery

Monitor battery voltage

Internal resistance and negative terminal temperature

ABAT100-S-06 Single Battery Monitoring Module

Monitor one 6V battery

Monitor battery voltage

Internal resistance and negative terminal temperature

ABAT100-S-12 Single Battery Monitoring Module

Monitor one 12V battery

Monitor battery voltage

Internal resistance and negative terminal temperature

Display

dimension

Parameter

Function	Description
Online monitoring	Online monitoring 24 hours a day, one battery per module, monitoring voltage, internal resistance and negative terminal temperature
High accuracy measurement	Internal resistance measurement error as low as 1%
Battery internal resistance test	Automatic periodic measurement of the internal resistance of each battery controlled by the collector
Low power design	Manual entry into low power mode, S-module draws current from the battery down to 0.5mA
Anti-jamming design	High anti-interference design, can block the ripple interference of high power high frequency UPS
Communication protocol	MODBUS-RTU protocol
Installation method	Tie-down mounting or adhesive mounting
Indicator light	Red and green LED lights, green light as the power light, red light as the indicator light

Technical parameters	Description
Working Environment	Operating temperature: -10℃～50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa
Management Capability	One S-module monitors one battery
Monitoring Scope	2V, 6V, 12V battery with capacity less than 3000AH
Measurement range and accuracy	Measurement content	Scope	Accuracy
	Single Voltage	2V, 6V, 12V	±0.1%
	Single internal resistance	50～65535uΩ	(Resolution) 1uΩ
	Negative temperature	-5℃～+105℃	±1°C
Power requirements	Directly from the monitored battery, 2V module normal operation of the absorption current of 10mA, the maximum is not more than 13mA, 6V, 12V module normal operation of the absorption current of 5mA, the maximum is not more than 7mA, different modules absorption current consistency is very high
Protection	Measuring circuit and power circuit with two levels of protection, with reverse connection protection and opto-isolation
Communication Interface	UART port, support MODBUS protocol
Insulation withstand voltage	2000VAC
Weight	90g
