ACTDS-DV voltage transducer

● Rated input:100-1500V
● Rated output:4-20mA/5V
● Power supply: 12V/15V/24V
  • ACTDS-DV
  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE

Application: Acquisition and feedback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.

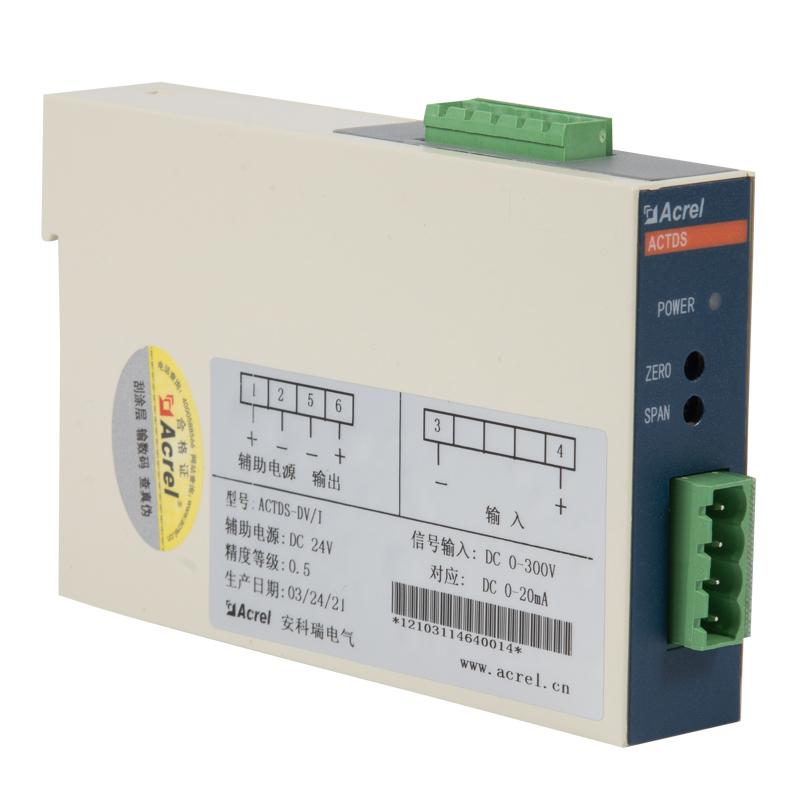

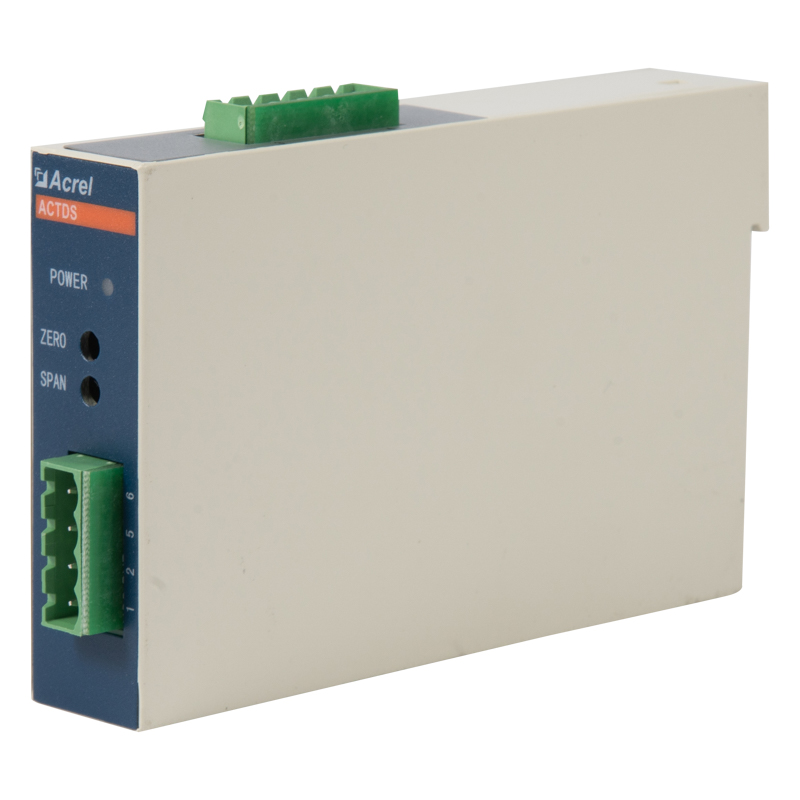

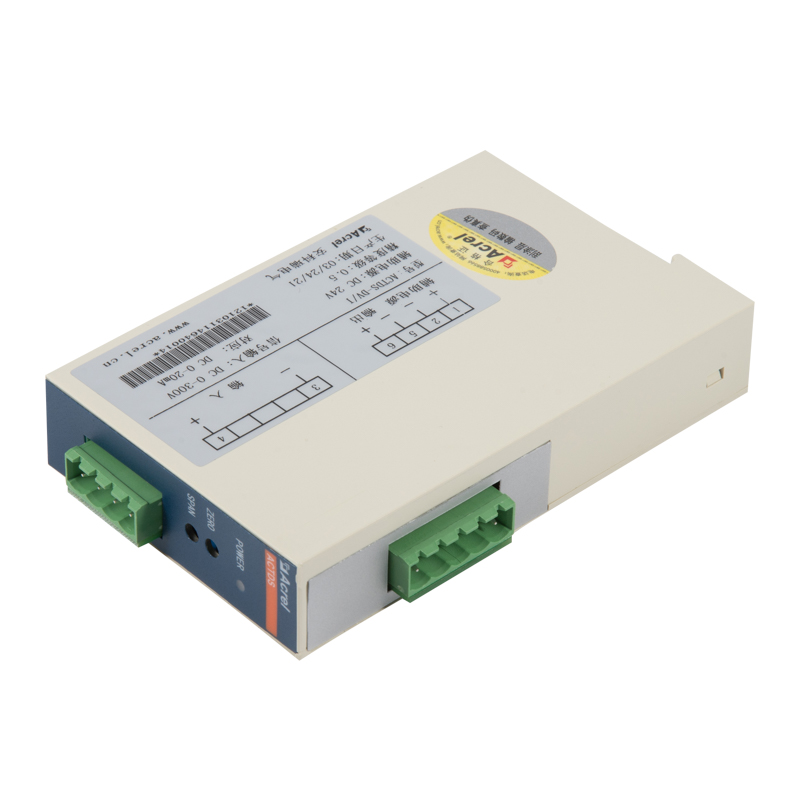

ACTDS-DV DC voltage transducer


ACTDS series DC voltage sensor is a measuring module that uses the principle of photoelectric isolation. Convert the measured DC voltage into a proportional output DC current or DC voltage signal. It has the characteristics of high accuracy, high linearity, high integration, small size, simple structure, stable long-term work and adapting to various working environments. It is widely used in the system control and detection of electrical equipment in the electric power, petroleum, coal, chemical, railway, communication, building automation and other industries.


Product Description


DC voltage transducer

Rated input:100-2000V


Rated output:4-20mA/0-20mA/0-5V/0-10V


Power supply:12V/15V/24V/48V


Accuracy:0.5

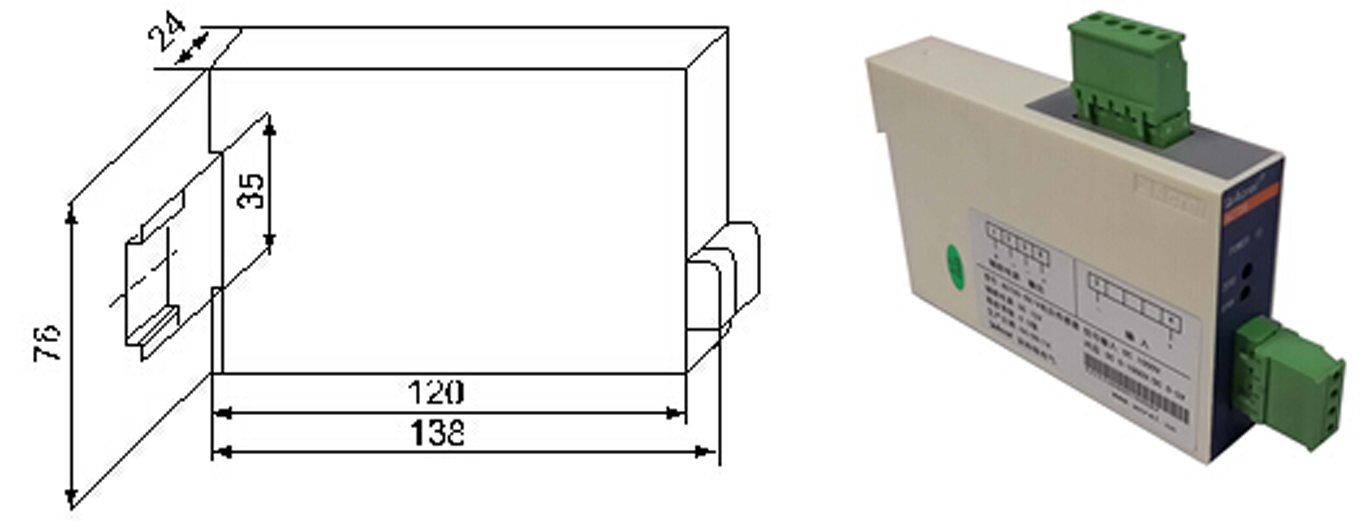

Dimension
 Dimension: 138*76*24mm

Installation:

35mm Din rail

dimension of actds



Installation

wiring of actds

wiring

Application

hall effect current transducer application3


hall effect current transducer application4
